- 2 HD/SD-SDI or 2 HDMI inputs
- 2 encoding channels: H.264/MPEG-2 (up to 1080p)
- Choice of DVB-C/DVB-T/ATSC/ISDB-T output
Description

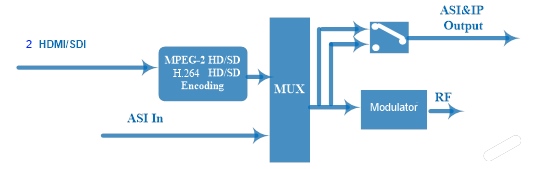

ADV-8502 is high quality 2-Channel professional video/audio encoder/modulator.
It has 2 independent encoding channels with choice of SDI with embedded audio or HDMI with embedded audio inputs.
It supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and Dolby Digital AC3 audio encoding.
ADV-8502 has one ASI input, 2 ASI outputs (mirrored) and IP output port.
Two encoding programs can be output as 2 SPTS or one MPTS.
It also has digital modulator (choice of DVB-C/DVB-T/ATSC/ISDB-T) and outputs RF channels.
Key Features
- Choice of 2 SDI or 2 HDMI video inputs with embedded audio
- 264/MPEG-4 AVC and Mpeg2 HD/SD video encoding, VBR/CBR
- Input/output resolution – up to 1080p
- MPEG1 Layer 2, LC-AAC, HE-AAC, Dolby Digital AC3 audio encoding
- ASI input for re-mux, ASI multiplexed output (MPTS)
- Built-in multiplexer
- IP outputs (MPTS and 2 SPTS) over UDP, RTP/RTSP
- CC (closed caption ), EIA 608 and EIA 708 for SDI interface
- Low Latency function
- PSI/SI editing and inserting, PID re-mapping, IP null packet filter
- Choice of DVB-C/DVB-T/ATSC/ISDB-T output
- RF output frequency range: 50 MHz – 960 MHz
- Excellent modulation quality: MER≥42dB
- Supports EAS control for DVB-C and ATSC
- Supports LCN (Logical Channel Number) – for DVB-C/DVB-T/ISDB-T modulation
- Supports VCT (Virtual Channel Table) – for DVB-C/ATSC modulation

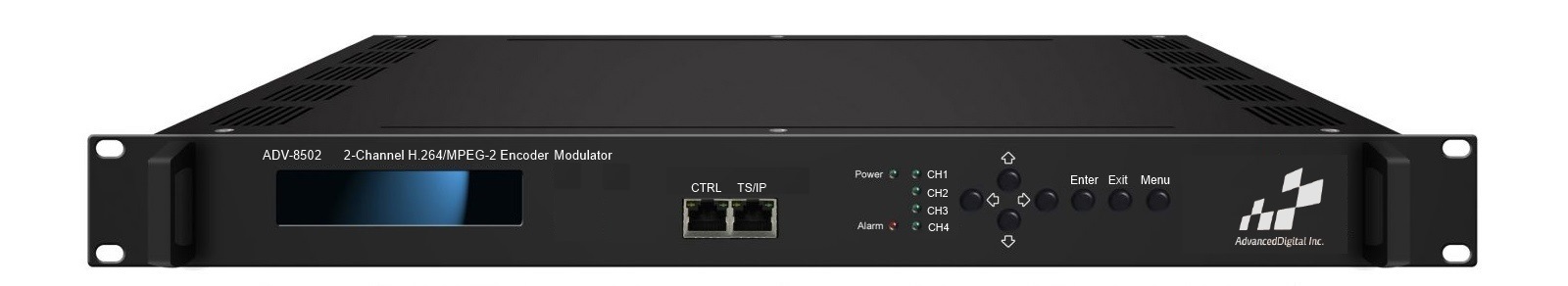

- LCD / keyboard and Web-based NMS control

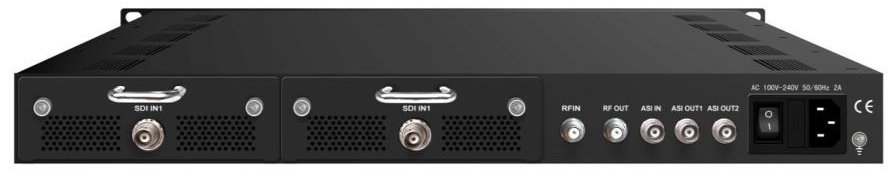

ADV-8502-S – 2-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 SDI inputs

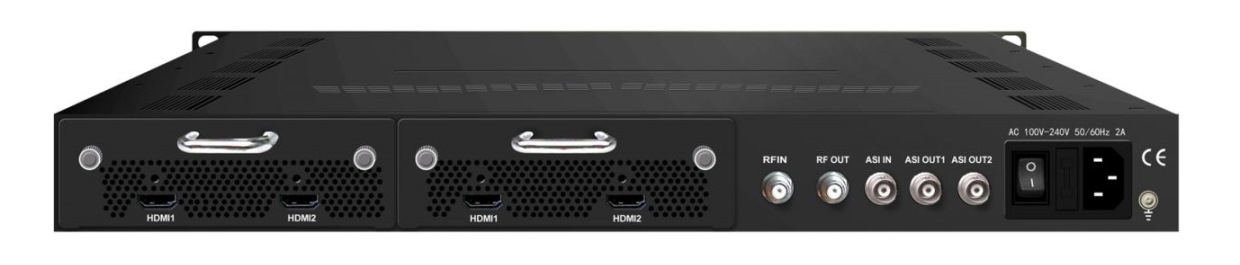

ADV-8502-H – 2-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 HDMI inputs
Specifications
Click on “ADV-8502 Datasheet” for technical specifications
Ordering Info
ADV-8502-S – 2-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 SDI inputs
Note: Please indicate required type of modulation
ADV-8502-H – 2-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 HDMI inputs
Note: Please indicate required type of modulation
