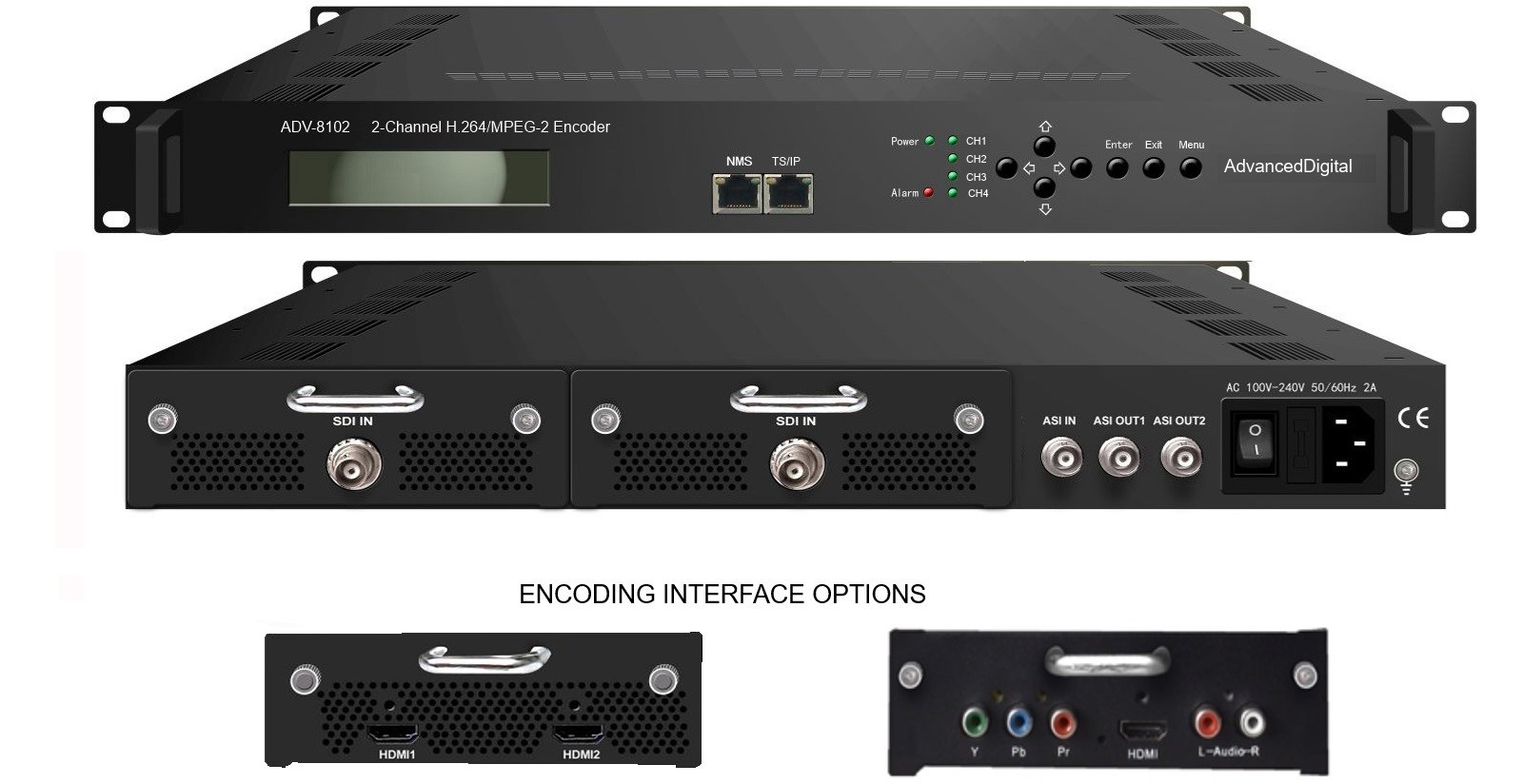

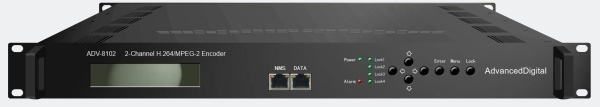

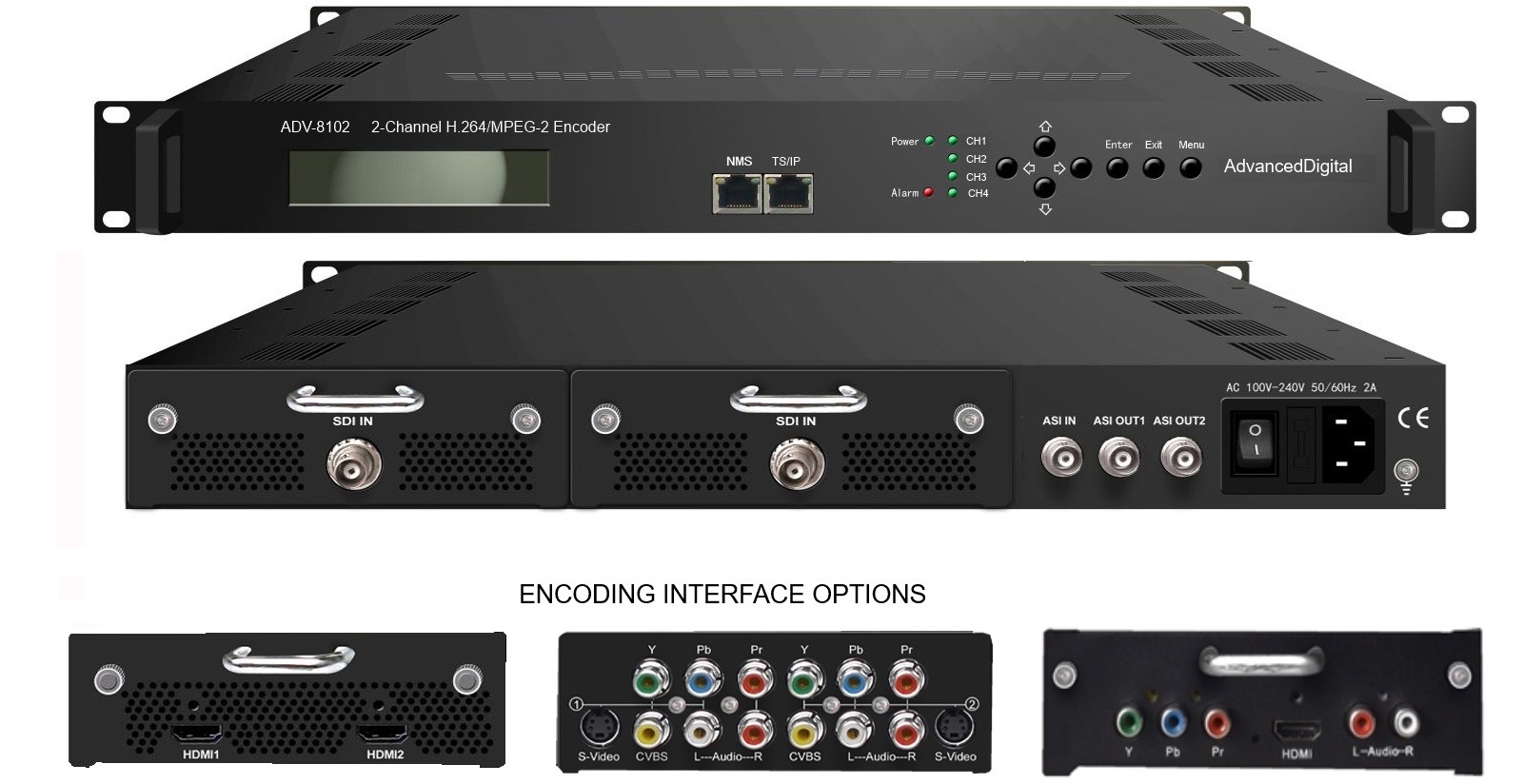

The ADV-8102 is a high quality 2-channel pro video/audio encoder suitable for broadcasting applications. Configure up to two encoding channels that can be selected from an option of SDI with embedded audio or HDMI with embedded audio or CVBS/HDMI/YPbPr video inputs and unbalanced audio inputs.

For video the encoder supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and Dolby Digital AC3 for audio encoding.

ADV-8102 has 2 ASI outputs and IP output port. Two encoding programs can be output as two SPTS or one MPTS.

ADV-8102 has an ASI input and can multiplex the input TS with the 2 encoded programs to generate a MPTS output.

Key Features

  • Select from SDI or HDMI or HDMI/CVBS/YPbPr video inputs
  • 264/MPEG-4 AVC and MPEG2 HD/SD video encoding
  • Encode up to 1080p for H.264 and up to 1080i for MPEG-2
  • MPEG1 Layer 2, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 audio encoding
  • 2x ASI outputs (MPTS or 2x SPTS)
  • IP output: MPEG-TS over UDP, RTP/RTSP
  • CC (closed captioning), EIA 608 and EIA 708 for SDI interface
  • ASI input, Built-in multiplexer
  • Low Latency function
  • PSI/SI editing and inserting
  • IP null packet filter
  • VBR/CBR video encoding
  • LCD / keyboard and web control



Ordering Info

ADV-8102-S  –  2-channel H.264/MPEG-2 HD/SD encoder with 2x SDI inputs

ADV-8102-S1 – Single-channel H.264/MPEG-2 HD/SD encoder with SDI input


ADV-8102-H  –  2-channel H.264/MPEG-2 HD/SD encoder with 2x HDMI inputs


ADV-8102-CS – 2-channel H.264/MPEG-2 SD encoder with 2 CVBS/S-Video/YPbPr inputs


ADV-8102-C  –  2-channel H.264/MPEG-2 SD encoder with 2 HDMI/CVBS/YPbPr inputs

ADV-8102-C1 – Single-channel H.264/MPEG-2 SD encoder with HDMI/CVBS/YPbPr inputs
