• ASI and SMPTE-310M inputs
  • RF (40-860 MHz) output
  • 8-VSB Constellation
  • Adaptive linear and non-linear digital pre-correction
  • Description
  • Specifications
  • Ordering Info

Description

ADV-8300 ATSC modulator is a high quality professional broadcast modulator designed for operation in full compliance with ATSC A53 standard for 8-VSB (ATSC) terrestrial HDTV/SDTV broadcasting. It offers a cost effective, professional solution for generating high-quality RF signals suitable for broadcasting.

The ADV-8300 can be used as a ATSC broadcast modulator, tester, or a head end of an RF distribution network. It can accept input through its DVB-ASI and SMPTE-310M input ports.

The ADV-8300 supports adaptive non-linear and linear digital pre-distortion that optimizes the efficiency of the transmission. The ADV-8300 is easy to control through the front panel and the remote web interface.

Key Features

  • Full compliance with ATSC A/53 standard
  • Constellation mapping: 8-VSB
  • EN50083 ASI and SMPTE 310M interface standard
  • Dual channel DVB-ASI and SMPTE-310M input, automatic switch-over and hot backup
  • RF range: 40MHz~860MHz, 1Hz stepping
  • Control via front panel or WEB GUI, locally and remotely
  • Remote monitoring and software upgrading
  • RS coding, data interleaving, Trellis coding
  • Channel bandwidth: 6MHz
  • Supports adaptive linear digital pre-distortion
  • Supports adaptive non-linear digital pre-distortion
  • Built-in constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM
  • Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.
  • NMS, Keyboard and LCD operation



adv-8300-bd

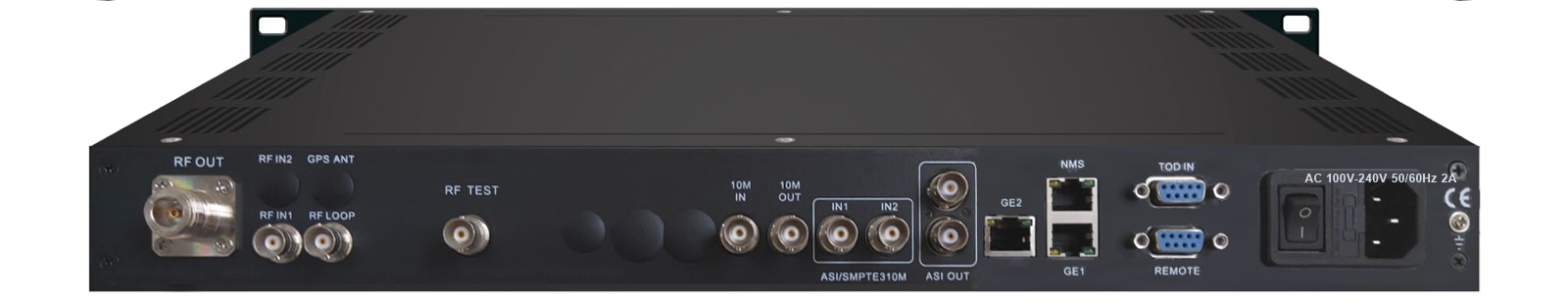

adv-8300-back

Specifications

Click on “ADV-8300 Datasheet” for technical specifications

Ordering Info

ADV-8300  –  8-VSB (ATSC) Modulator
