ADV-8504 – 4-Channel H.264/MPEG-2 HD/SD Encoder Modulator

Description

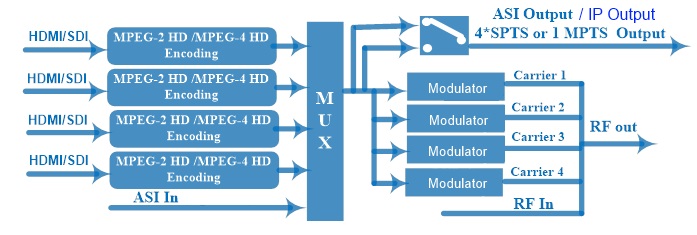

ADV-8504 is high quality 4-Channel professional video/audio encoder/modulator.
It has 4 independent encoding channels with choice of SDI with embedded audio or HDMI with embedded audio inputs.

It supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and Dolby Digital AC3 audio encoding.

ADV-8504 has one ASI input, 2 ASI outputs and IP output port. Four encoding programs can be output as 4 SPTS or one MPTS.

It also has digital modulator (choice of DVB-C/DVB-T/ATSC/ISDB-T) and outputs RF channels.

 Key Features

• Choice of 4 SDI or 4 HDMI video inputs with embedded audio
• 264/MPEG-4 AVC and Mpeg2 HD/SD video encoding, VBR/CBR
• Input/output resolution – up to 1080p
• MPEG1 Layer 2, LC-AAC, HE-AAC, Dolby Digital AC3 audio encoding
• ASI input for re-mux, ASI multiplexed output (MPTS)
• Built-in multiplexer
• IP outputs (MPTS and 4 SPTS) over UDP, RTP/RTSP
• CC (closed caption ), EIA 608 and EIA 708 for SDI interface
• Low Latency function
• PSI/SI editing and inserting, IP null packet filter
• Choice of DVB-C/DVB-T/ATSC/ISDB-T output
• RF output frequency range: 30 MHz – 960 MHz
• Excellent modulation quality: MER≥42dB
• Supports EAS control for DVB-C and ATSC
• Supports LCN (Logical Channel Number)

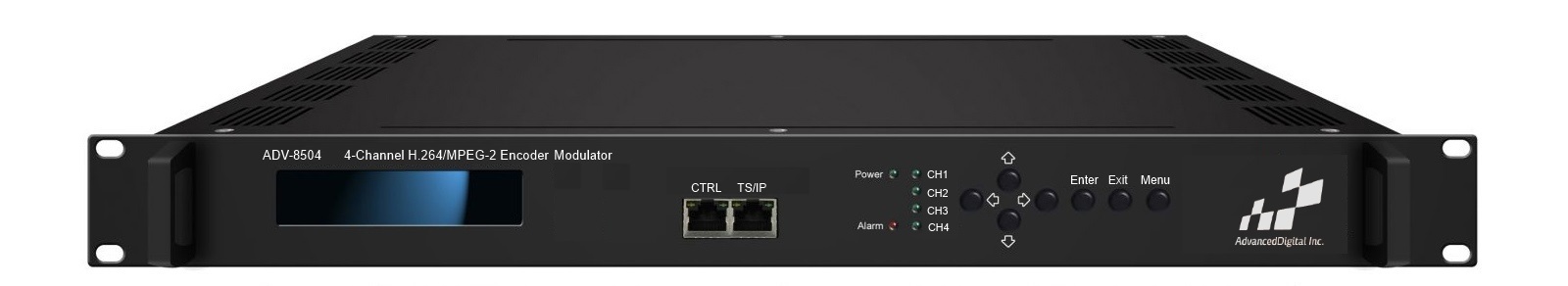

• LCD / keyboard and Web-based NMS control

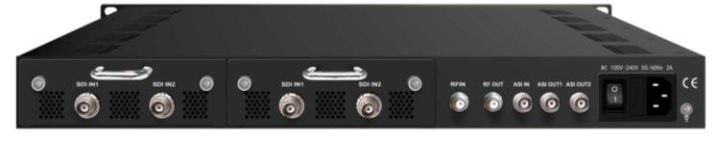

                       ADV-8504-S  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 4 SDI inputs

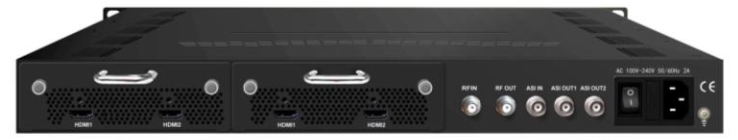

                       ADV-8504-H  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 4 HDMI inputs

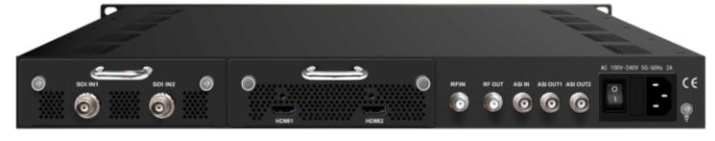

                    ADV-8504-SH  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 SDI and 2 HDMI inputs

Specifications

Click on “ADV-8504 Datasheet” for technical specifications

Ordering Info

ADV-8504-S  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 4 SDI inputs
Note: Please indicate required type of modulation

ADV-8504-H  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 4 HDMI inputs
Note: Please indicate required type of modulation

ADV-8504-SH  –  4-channel H.264/MPEG-2 HD/SD encoder/modulator with 2 SDI and 2 HDMI inputs
Note: Please indicate required type of modulation
