• DVB-S/S2, DVB-T, DVB-C, ATSC, ASI and IP Receiver
  • MPEG-2, H.264/MPEG-4 AVC SD/HD Decoder
  • HD/SD-SDI, HDMI, Composite, ASI and IP Outputs
  • 2 independent ASI outputs
  • TS over IP: 2 GBe ports (Full Duplex)
  • IPTV Gateway: IP outputs – up to 32 TV channels; UDP/RTP, unicast/multicast
  • BISS Descrambler
  • 2 DVB-CI Slots, compatible with: Conax, Cryptoworks, Irdeto, NDS, Mediaguard, SECA,
    Viaccess and more
  • VBI Teletext, WSS, EBU, DVB and CC support
  • Description
  • Ordering Info

Description

Applications

  • Perfect as a DVB-S2 or DVB-S to IP Converter
  • Convert other DVB standards such as ATSC, DVB-T, DVB-C to IP
  • IP-to-ASI or ASI-to-IP Converter
  • Broadcast DVB-S and DVB-S2 receiver and decoder
  • Broadcast DVB-T receiver and decoder
  • Broadcast DVB-C or ATSC receiver and decoder
  • Broadcast SDI decoder

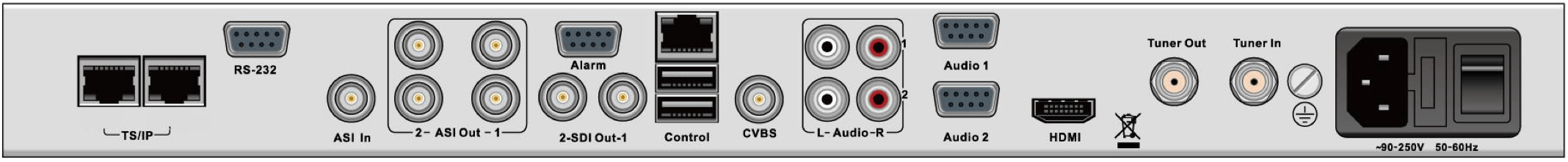

Back Panel

ADV-6000_rear

Block Diagram

ADV-6000 diagram

The ADV-6000 provides an ideal solution for receiving, re-multiplexing, descrambling and decoding broadcast signals. It is equipped with a variety of inputs that ensure compatibility with all transmission media. The ADV-6000’s re-multiplexing capabilities enable creation of new transport streams by combining existing sources. Customized services may be output as multiple SPTS or MPTS over IP, as well as over ASI. Through the dual DVB common interfaces, ADV-6000 has the capability to decrypt multiple services present in transport streams. ADV-6000 is also a professional IRD that features a broadcast quality decoder for MPEG-2 and MPEG-4 AVC/H.264, in both Standard Definition and High Definition formats, and provides a variety of industry standard digital and analog outputs, including CVBS video, AES/EBU Audio, analog Audio, embedded audio, HDMI, SD-SDI and HD-SDI. The unit can perform HD down-conversion and aspect ratio adaptation of HD programs in order to generate professional quality baseband analog video and audio outputs for easy integration with existing cable network infrastructure. This all-in-one architecture makes the ADV-6000 an ideal product for any broadcast environment.

Key Features

  • Many input options: DVB-T/C/S2/S, DTMB, ISDB-T, ATSC, DS3/E3, TS/IP and ASI
  • Support for DVB-S2 Input Stream Identifier (ISI, optional), Physical Layer Signaling (PLS, optional) and DVB-T SFN  MIP pass through
  • Redundant backup among Tuner, ASI and TS/IP, with configurable priority
  • SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • 2 Stereo pairs audio decoding: Analog, Embedded and AES/EBU outputs
  • Audio Output formats: MPEG-1 Layer 1, MPEG-1 Layer 2, MPEG-2 Layer 2, MPEG-2 AAC, MPEG-4 AAC, Dolby AC3/AC3+(down-mix to 2.0 or pass-through)
  • Analog and Digital Outputs: CVBS, HDMI, SD/HD-SDI, AES/EBU and XLR Balanced Audio
  • HD/SD decoding support: PAL, NTSC, SECAM, 720p, 1080i
  • HD to SD down-conversion
  • Built-in TS re-multiplexer can receive from ASI, Tuner and TS/IP Inputs
  • 2×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
  • Dynamic PMT detection and automatic updating
  • Support for VBI TELETEXT, WSS, EBU/DVB Subtitle, Closed Caption
  • UDP/RTP, Unicast/Multicast, 32 SPTS or 1 MPTS over IP (full duplex)
  • Remote and Local Control and Supervision by SNMP, HTTP WEB, LCD menu and Proprietary software
  • PCM audio embedded in SDI and HDMI outputs, Dolby Digital and Dolby Digital Plus audio pass through by SDI and AES/EBU
  • PCM audio output on two AES/EBU audio output ports
  • On Site software update through IP
  • RSSI, received Eb/No & BER monitoring

Ordering Info

ADV-6000S   –   IRD with DVB-S/S2 tuner
ADV-6000A   –   IRD with ATSC (8-VSB) tuner
ADV-6000T   –   IRD with DVB-T/C tuner
ADV-6000M   –   IRD with DTMB tuner
ADV-6000I   –   IRD with ISDB-T tuner
ADV-6000D   –   IPTV and ASI decoder
