• DVB-S/S2, DVB-T/T2, DVB-C, DTMB, ATSC Quad Receiver
  • MPEG-2, H.264/MPEG-4 AVC SD/HD Decoder
  • ASI + IP inputs
  • Built in multiplexer/remultiplexer
  • 4x HD/SD-SDI, 4x Composite, ASI and IP outputs
  • Up to 128x TV programs (IPTV streams) output
  • BISS Descrambler
  • 4x DVB-CI Slots
  • Supports: Conax, Cryptoworks, Irdeto, NDS, Mediaguard, SECA, Viaccess
  • Teletext VBI, EBU, DVB and CC support
  • Description
  • Specifications
  • ORDERING INFO

Description

ADV-6410 is a professional IRD that features broadcast quality decoding for MPEG-2 and MPEG-4 AVC/H.264 in both Standard and High Definition formats. It provides a variety of industry standard digital and analog outputs, including: 4x separate CVBS video, analog Audio, HD/SD-SDI, ASI and IP. The ADV-6410 is an ideal solution for reception, descrambling, re-multiplexing and decoding of broadcast streams. The unit can also perform HD downconversion and aspect ratio adaptation of HD programs in order to generate professional quality baseband video+audio outputs (SDI/CVBS) for integration with existing cable network infrastructure.

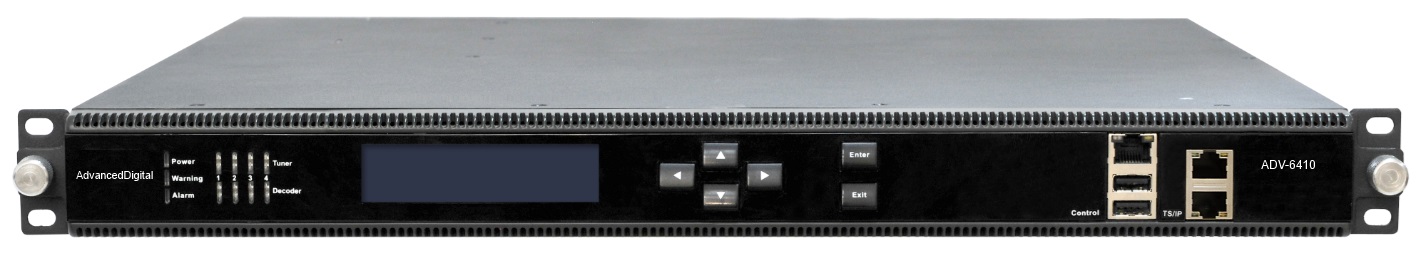

adv-6410

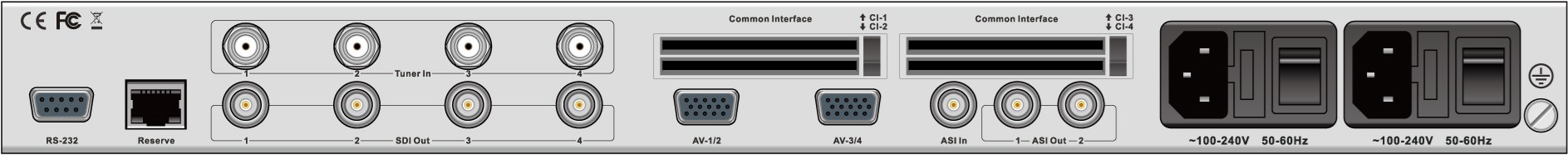

Back Panel Interface

adv-6400-rear



KEY FEATURES

  • Quad Tuner Inputs, supporting a variety of input options: DVB-S/S2, DVB-T/T2, DVB-C, DTMB, ATSC
  • SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • Video Outputs: 4x SDI, 4x Composite
  • Audio Outputs:
    – 2x SDI embedded stereo pairs per video
    – Analog stereo pair per video
    -Dolby Digital down-mix to 2.0
    -AC3 and Dolby E audio can be passed through by SDI
  • ASI input, ASI output
  • IP input
  • IP output: up to 128x IPTV streams (TV programs)
  • 4×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
  • Redundant power supply

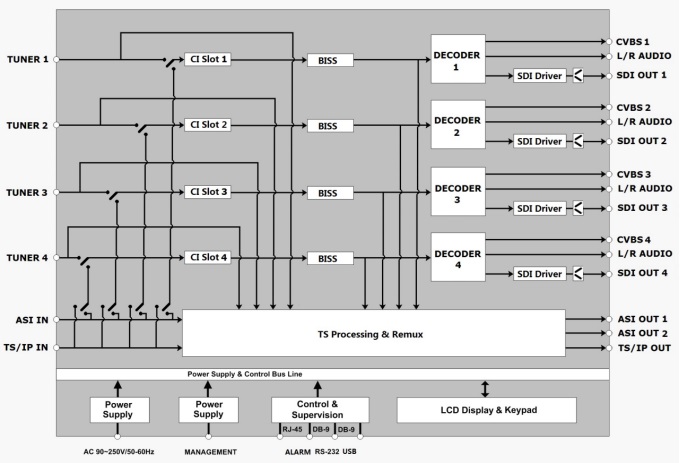

  • Built-in 2xTS re-multiplexer, one receives from Tuner1, Tuner2, CI1 and CI2 Inputs, the other
    receives from Tuner3, Tuner4, CI3 and CI4 Inputs
  • Dynamic PMT detection and automatic updating
  • Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption
  • SNMP and WEB control
  • Software upgradable through IP or USB

Specifications

Click on “ADV-6410 Datasheet” for technical specifications

ORDERING INFO

ADV-6410S – IRD with 4 DVB-S/S2 tuners
ADV-6410T – IRD with 4 DVB-T/T2 tuners
ADV-6410C – IRD with 4 DVB-C tuners
ADV-6410A – IRD with 4 ATSC tuners
ADV-6410D – IRD with 4 DTMB tuners
