Description

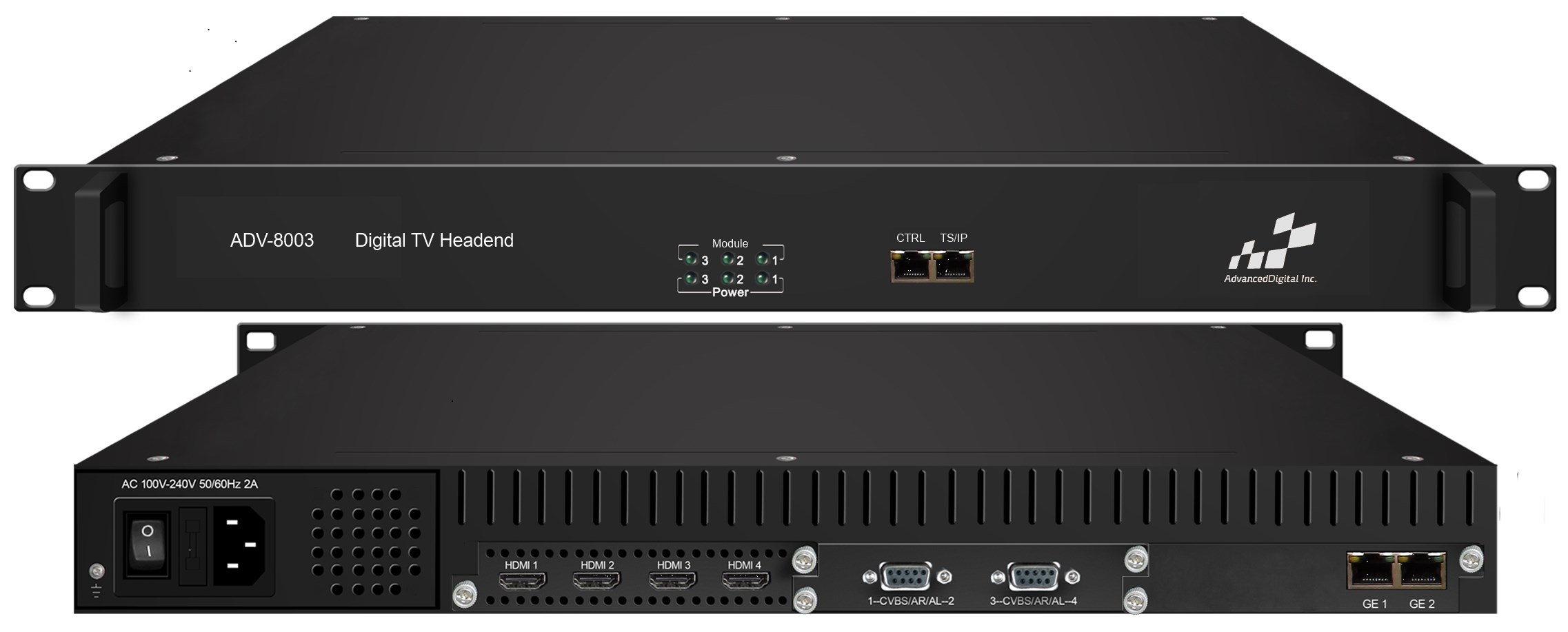

ADV-8003 is a compact modular digital TV headend in 1RU chassis.

It is powerful and flexible solution that allows users to build or update DTV or IPTV headend to meet the requirements of today’s new network architectures.

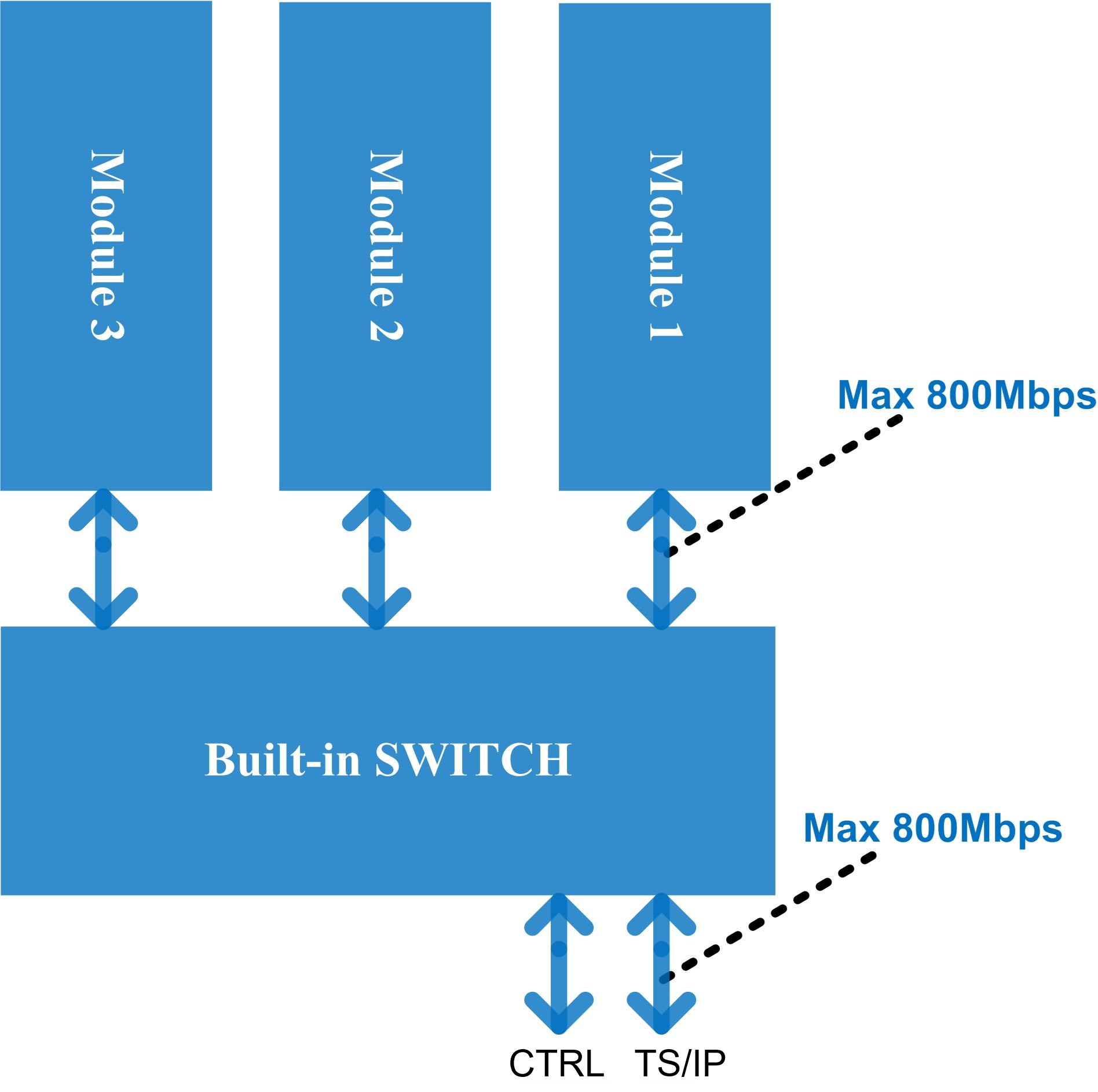

ADV-8003 has 3 independent module slots.

By inserting up to 3 functional modules, ADV-8003 integrates all DTV headend functions, such as DVB signal reception, descrambling, decoding, encoding, transcoding, multiplexing, remultiplexing, scrambling, modulation, etc.

Each module can be configured individually via ADV-8003’ control port using WEB GUI interface.

ADV-8003’ flexible high density design and low cost makes it perfect for new generation broadcasting and IPTV systems.



Key Features

  • Flexible combination of different type of modules – up to 3 modules
  • Maximum 800M data processing
  • 1 GE bidirectional (TS/IP) port, RJ45 interface
  • Web management, updates via web GUI (CTRL port), RJ45 interface



List of available modules

  1. AD504  –  4 ASI/IP multiplexer –  4 ASI inputs/outputs, 512 IP inputs
  2. AD505  –  5 ASI in/out multiplexer  –  5 ASI inputs/outputs
  3. AD506  –  IP multiplexer – up to 512 IP inputs/outputs
  4. AD214/214A – 4-channel MPEG-2 SD encoder with 4 CVBS inputs
  5. AD214B  –  4-channel MPEG-2/H.264 SD encoder with 4 CVBS inputs
  6. AD218S  –  8-Channel H.264 SD encoder with 8 CVBS inputs
  7. AD202A  –  2-channel MPEG-2/H.264 encoder/transcoder with 2 HDMI inputs
  8. AD202A-D  – 2-channel MPEG-2/H.264 encoder/transcoder with 2 SDI inputs
  9. AD224  –  4-channel H.264 HD encoder with 4 HDMI inputs
  10. AD224V1 – 4K UHD H.265/H.264 encoder with 4 HDMI inputs
  11.  AD224V2 –  H.265/H.264 HD encoder with 4 HDMI inputs
  12.  AD224V2S – H.265/H.264 HD encoder with 4 HD-SDI inputs
  13.  AD202  –  2-channel MPEG2<>H.264 transcoder with IP inputs/outputs
  14.  AD316/AD332 – 16/32-channel DVB-C modulator with 512/1024 IP inputs

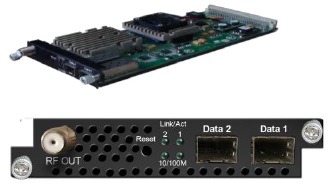

  15.  AD308T  –  8-channel DVB-T modulator with 256 IP inputs

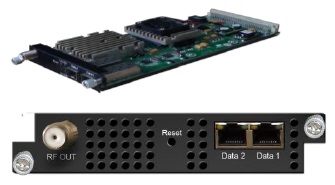

  16.  AD308AT  –  8-channel ATSC modulator with 256 IP inputs
  17.  AD306I  –  6-channel ISDB-Tb modulator with 192 IP inputs
  18.  AD902  –  2 Tuners DVB-S/S2 Receiver with descrambling
  19.  AD912  –  2 Tuners DVB-C Receiver with descrambling
  20.  AD904B  –  4 Tuners FTA DVB-S/S2/S2X Receiver / IPTV Gateway
  21.  AD924  –  4 Tuners DVB-C/T/T2/ISDB-T Receiver / IPTV Gateway
  22.  AD702  –  2-channel decoder with 2 HD//SD-SDI outputs
  23.  AD714  –  4-channel decoder with 4 HDMI outputs

Modules Description

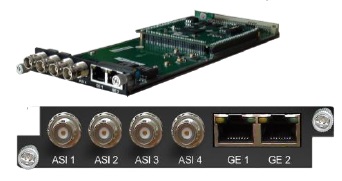

AD504  –   4 ASI/IP Multiplexer



ASI inputs/outputs: 4 ASI bi-directional, BNC 75Ω
IP inputs/outputs: 2 Ethernet Port (100/1000M)
Internal IP connection to ADV-8000’ built-in multiplexer
Re-multiplexing: PID remapping, PCR correction, generates PSI/ SI table automatically

5 independent multiplexing channels.

Inputs:

  • up to 4 ASI inputs;
  • up to 256×2 IP inputs (SPTS/MPTS), unicast/multicast

Packet format: 204/188, self-adaptation

Outputs:

  • up to 4 ASI outputs (max 200 Mbps per channel),
  • up to 4 IP outputs (SPTS/MPTS) via GE1 and GE2; unicast/multicast
  • 1 IP MPTS (up to 350 Mbps) to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS.IP2 GbE ports.

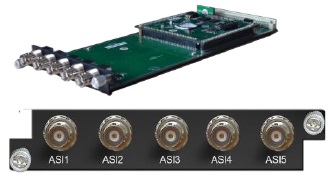

AD505  –   5 ASI in/out Multiplexer

ASI inputs/outputs: 5 ASI bi-directional, BNC 75Ω
Internal IP connection to ADV-8000’ built-in multiplexer
Inputs: up to 5 ASI inputs
Packet format: 204/188, self-adaptation
Re-multiplexing: PID remapping, PCR correction, generates PSI/ SI table automatically

Outputs:

  • up to 5 ASI outputs (max 200 Mbps per channel)
  • IP MPTS (up to 350 Mbps) to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS/IP2 GbE ports

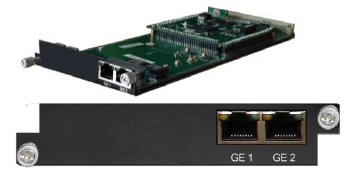

AD506  –  IP Multiplexer

IP input: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast thru GE1 Ethernet Port (100/1000M)
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
IP output: 512 SPTS output over UDP, RTP, Unicast and Multicast through GE2 Ethernet Port (100/1000M)

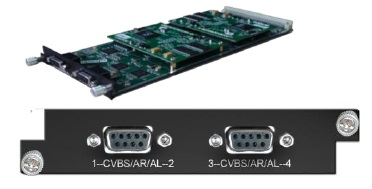

AD214/AD214A –   4-channel MPEG-2 CVBS Encoder

Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Output: 1 MPTS and 4 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG-2 (4:2:0)
Image format: PAL, NTSC SD signal
Input resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i, 320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,
704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i
GOP structure: IP, IBP, IBBP, IBBBP
Video bitrate: 0.5Mbps~8Mbps per channel
Support CC (closed caption)

Audio Encoding:

Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate:128/192/256/320/384kbps each channel
Supports Logo, Caption, QR Code insertion (for AD214A only)

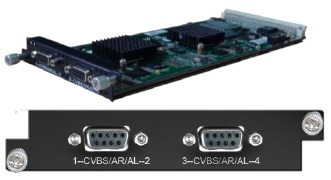

AD214B  –   4-channel H.264/MPEG-2 CVBS Encoder

Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Output: 1 MPTS and 4 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG-2, MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal

Resolution:
PAL:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz
NTSC: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@59.94Hz

Rate Control: CBR/VBR
GOP structure: IBBPB
Video bitrate: 0.5~5Mbps

Audio Encoding:

Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 48-384Kbps each channel
Supports Logo, Caption, QR Code insertion

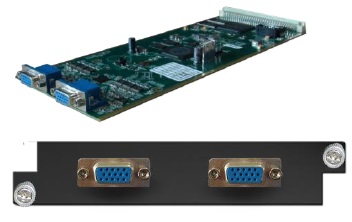

AD218S  –  8-channel H.264 CVBS Encoder

Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)
Output: 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution: 720×576i, 720×480i
Rate Control: CBR/VBR
GOP structure: IPP
Video bitrate: 1~7Mbps each channel

Audio Encoding:

Audio format: MPEG-1 Layer 2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 64/128/192/224/256/320/384Kbps each channel
Supports Logo, Caption, QR Code insertion

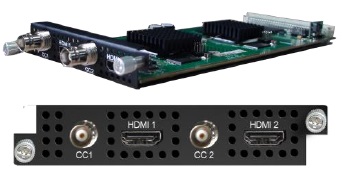

AD202A  –  2-channel HDMI Encoder/Transcoder

Input: 2*HDMI, 2*BNC for CC (Closed Caption)
Output: 1 MPTS and 2 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution: 1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding
Support CC (closed caption)

Audio Encoding:

Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel

Video Tanscoding:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

Audio Tanscoding:

MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any

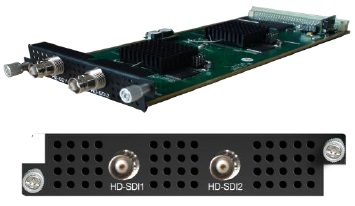

AD202A-D  –  2-channel SDI Encoder/Transcoder

Input: 2*HD-SDI and stream connector
Output: 1 MPTS and 2 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution: 1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding;
Support CC (closed caption)

Audio Encoding:

Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel

Video Tanscoding:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

Audio Tanscoding:

MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any

AD224  –  4-channel H.264 HDMI Encoder



Input: 4*HDMI
Output: 1 MPTS and 4 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps~19Mbps each channel
Rate Control: CBR/VBR

Audio Encoding:

Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64Kbps~320Kbps each channel
Audio Gain Control: 0-400

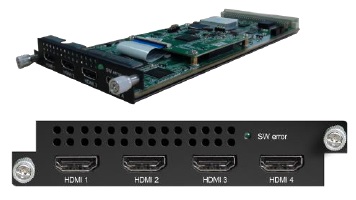

AD224V1  –   4k UHD HEVC/H.265 & H.264 HDMI Encoder

Input: 4× HDMI (1.4) inputs, HDCP 1.4
Output: 1 MPTS and up to 4 SPTS output over UDP/RTP/RTSP

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

3840×2160_30P, 3840×2160_29.97P;
(Encoding: 2 CHs per module for H.265 or 1 CH for H.264)

1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265 or 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 or H.265)

Chroma: 4:2:0
Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR
GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255

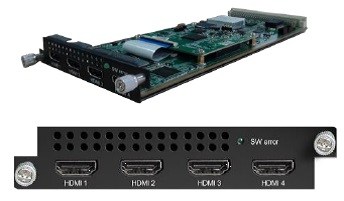

AD224V2  –   4-channel HEVC/H.265 & H.264 HDMI Encoder

Input: 4× HDMI (1.4) inputs, HDCP 1.4
Output: 1 MPTS and up to 4 SPTS output over UDP/RTP/RTSP

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

Input/output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding: 4 CHs per module for H.265 or 2 CHs for H.264)

Input/output: 1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding: 4 CHs per module for H.264 or H.265)

Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding 4 CHs per module for H.265 or 2 CHs for H.264)

Chroma: 4:2:0
Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR
GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255

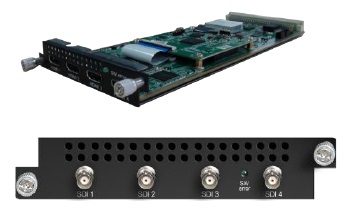

AD224V2S  –   4-channel HEVC/H.265 & H.264 HD-SDI Encoder

Input: 4× HD-SDI inputs
Output: 1 MPTS and up to 4 SPTS output over UDP/RTP/RTSP

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

Input/output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding: 4 CHs per module for H.265 or 2 CHs for H.264)

Input/output: 1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding: 4 CHs per module for H.264 or H.265)

Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding 4 CHs per module for H.265 or 2 CHs for H.264)

Chroma: 4:2:0
Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR
GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255

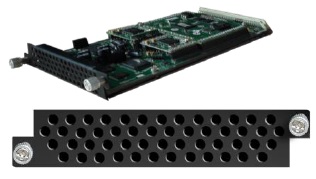

AD202  –  2-channel IP Transcoding Module

Input/Output: Internal IP connector
Resolution: 480i, 576i, 720P@50, 720P@60, 1080i@50, 1080i@60, 1080P@50, 1080P@60

Video Tanscoding:

2*MPEG-2/ H.264/ AVS/AVS+ HD/SD → 2* H.264 HD/SD

Video Bit-rate: 1~19.5Mbps each channel
Rate Mode: CBR/VBR
GOP Structure: IBBP, IPPP, IBP

AudioTanscoding:

MPEG-1 Layer II, LC/HE-AAC, AC3, DRA→ MPEG-1 Layer II, LC/HE-AAC

Audio bitrate: 64/96/128/192/256/320/384Kbps
Audio Gain Control: 0-100

AD316/AD332 –  16/32-channel QAM Modulator

Input: 512 or 1024 IP inputs over UDP/RTP, 2 GE Ports Data 1 and Data 2 (RJ45/SFP), Internal IP connector
Output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports Data 1 and Data 2 (RJ45/SFP)
Trans rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modualation.

Multiplexing:

Maximum PID Remapping: 180 output pids per channel for AD316, 256 output pids per channel for AD332
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generates PSI/SI table automatically

Scrambling:

Maximum simulcrypt CA: 4
Standard: ETR289, ETSI 101 197, ETSI 103 197

Connection: Local/remote connection

Modulation:

Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM

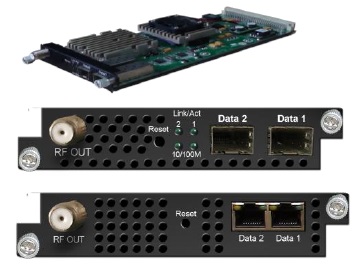

AD316 Output: 16 non-adjacent carrier outputs within 192M bandwidth
AD332 Output: 32 non-adjacent carrier outputs within 384M bandwidth

AD308T  –  8-channel DVB-T Modulator

IP input: 256 IP input over UDP/RTP, 2GE Ports Data 1 and Data 2 (RJ45/SFP)
IP output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth

Multiplexing:

Channel Number: 8 multiplexing channels
Maximum PID Remapping: 180 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generates PSI/ SI table automatically

Modulation:

Standard: ETSI EN300 744
MER: ≥40dB
RF Frequency: 50~960MHz, 1KHz step
Constellation: QPSK/16QAM/64QAM
Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output Level: -20~+10dBm (for all carriers), 0.5dB step

AD308AT  –  8-channel ATSC Modulator

IP input: 256 IP input over UDP/RTP, 2GbE Ports (RJ45/SFP)
IP output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GbE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth

Multiplexing:
Channel Number: 8 multiplexing channels
Maximum PID Remapping: 180 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generates PSI/ SI table automatically

Modulation:
Standard: ATSC A/53
MER: ≥40dB
RF Frequency: 50~960MHz, 1KHz step
Constellation: 8VSB
Bandwidth: 6MHz
FEC: RS(208 188)+Trellis
RF Output Level: -20~+10dBm (for all carriers), 0.5dB step

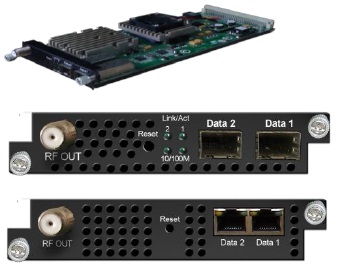

AD306I  –  6-channel ISDB-Tb Modulator

IP input: 32×6 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP)
IP output: 6 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GbE Ports Data 1 and Data 2 (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 6 channels of multiplexing and modualtion.

Multiplexing:
Maximum PID Remapping: 180 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, gnerates PSI/ SI table automatically

Modulation:
Standard: ARIB STD-B31
Bandwidth: 6M
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 4K, 8K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20dBm~+10dBm (87~117dBµV), 0.1dB stepping

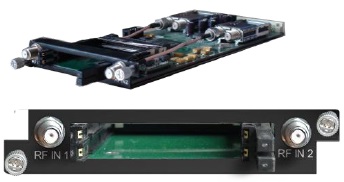

AD902  –  2 Tuners DVB-S/S2 Receiver with descrambling

Input: 2 Tuners DVB-S/S2, F Type
DVB-CI: 2 Independent common interface slots

Modulation: DVB-S
Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8

Mofulation: DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps
16APSK 1~45 Msps 32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10

Supports Diseqc function

Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generates PSI/ SI table automatically

Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; up to 120Mbps

Outputs: MPTS to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS/IP2 GbE ports.

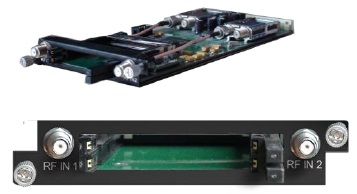

AD912  –  2 Tuners DVB-C Receiver with descrambling

Input: 2 Tuners DVB-C, F Type
DVB-CI: 2 Independent common interface slots
DVB-C  Standard: J.83A(DVB-C), J.83B, J.83C
Input Frequency: 30-960MHz
Constellation: 16/32/64/128/256 QAM

Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generates PSI/ SI table automatically

Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; up to 120Mbps

Outputs: MPTS to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS/IP2 GbE ports.

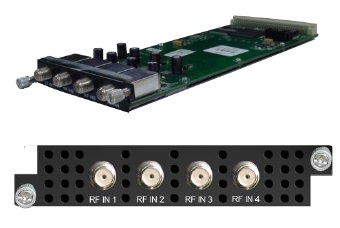

AD904B  –  4 Tuners FTA DVB-S/S2/S2X Receiver / IPTV Gateway

Inputs: 4 Tuner input, F Type

Outputs: MPTS to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS/IP2 GbE ports.

Standard: DVB-S/S2/S2X

Modulation: DVB-S
Input Frequency: 950-2150MHz
Symbol Rate: QPSK: 0.5~45 Msps
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8

Modulation: DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK: 0.5~45 Msps;  32APSK: 0.5~40 Msps
FEC Demodulation: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9

Modulation: DVB-S2X
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK: 0.5~45 Msps;  8APSK/32APSK: 0.5~40 Msps

FEC Demodulation:

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18|
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9

Signal Strength: -65 ~ -25dBm
Supports Diseqc function

Multiplexing:
Max number of managing PID: 256
Function: PID remapping (automatically/ manually), Accurate PCR adjust, PID pass-through

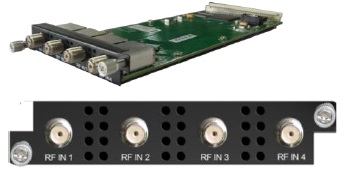

AD924  –  4 Tuners DVB-C/T/T2/ISDB-T Receiver / IPTV Gateway

Input: 4 Tuners, F Type
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/T2/ISDB-T user selectable

Modulation: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B

Modulation: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index: 0~255 (for DVB-T2)

Modulation: ISDB-T
Input Frequency: 60-890MHz

Multiplexing:
Max number of managing PID: 256
Function: PID remapping (automatically/ manually), Accurate PCR adjust, PID pass-through

Outputs: MPTS to ADV-8000’ built-in multiplexer, which can output up to 512 SPTS and 2 MPTS via ADV-8000’ TS/IP1 and TS/IP2 GbE ports

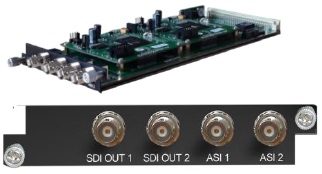

AD702  –  2-channel HD/SD-SDI Decoder

ASI input/output: 2 ASI bi-directions, BNC 75Ω
IP input: MPTS/SPTS via internal IP connector
2 HD/SD-SDI outputs

Decoding:
Video/Audio Out: 2 HD/SD SDI output
Video Format: MPEG-2, MPEG-4 AVC/H.264
Resolution: 480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60
Chroma: 4:2:0
Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough
Supports Dual Audio Output per video
Supports CC/Subtitle

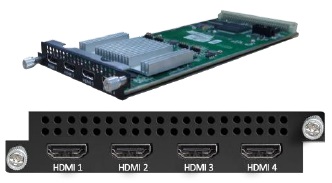

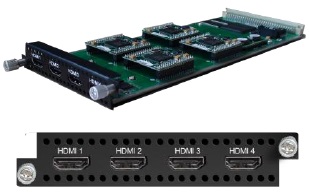

AD714  –  4-channel HDMI Decoder

Input: IP (MPTS/SPTS) via internal IP connector
Output: 4 HDMI outputs

Decoding:
Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port
Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+
Audio Format: MPEG 1 Layer 2, LC-AAC, HE-AAC, AC3 (2.0)
Resolution: 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p
Supports resolution upscale/downscale



ORDERING INFO

ADV-8003   –   Digital TV Headend chassis with 3-module slots

ADxxx  –  qty

ADxxx  –   qty
