3G/HD/SD-SDI, CVBS, S-Video inputs, IP output

  • Description
  • Specifications
  • Ordering Info

Description

The QVENC is part of the high quality professional line of advanced video codecs;
a line of compact, powerful and cost-effective products designed for real-time encoding,
and decoding for Content Gathering, Monitoring, and Distribution of broadcast quality video over IP networks.

QVENC’s advanced video transport couples broadcast and networking standards with patented error correction to take advantage of the inherent flexibility of IP and the Internet, providing broadcasters an efficient, affordable and scalable solution for professional quality video distribution quality over nearly any IP network.

The QVENC provides H.264 High Profile video compression, up to 1080p50/60, along with support for up to 4 audio channels, multicasting and multi-unicasting, and closed captioning to allow cost-effective audio/video broadcast and IPTV solutions.



QVENC - H.264 IP Video Encoder



Applications

• Professional broadcast video distribution
• Live Event / Electronic News Gathering
• Confidence monitoring
• Video conferencing
• IPTV systems

Application Example:

QVENC-QVDEC-App

Key Features

  • QVidium Patented feed-back based error correction (ARQ)
  • USB for storing video to hard drive
  • 1080p60/59.94, 1080p50/25, 1080p30/29.97, 1080p24/23.98, 1080i59.94, 1080i50, 720p60/59.94, 720p50, PAL and NTSC video inputs

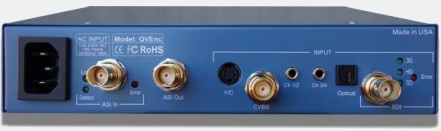

  • Selectable inputs: Composite, S-Video, SDI*, HD-SDI*
    *Available with optional software license
  • 4 channel audio input from SDI or analog audio
  • 7 VDC to 18VDC Power Input directly or through AC Power Adapter.
  • DVB-ASI input & output with optional daughtercard
  • AC3 audio pass through on SDI and S/PDIF input
  • HD to SD down scaler
  • AES128 Video Encryption

Major Benefits:

  • H.264 Video: H.264 High Profile 4:2:0 CBR or VBR video encoding selectable from 256 Kbps to 30 Mbps transport-stream bit rates. (Up to 15 Mbps with ARQ.)
  • Incorporates QVidium’s Patented feed-back based error correction (ARQ): QVidium’s ARQ provides the most reliable video transport over any IP network, including wireless and unconditioned IP networks.
  • Designed for Professional Broadcast Applications: Includes advanced CEA-708/CEA-608 Cosed Captioning, Dolby(R) AC3 Passthrough, and AES128 Encryption features.
  • MPEG-2 Video MPEG-2 4:2:0 video VBR encoding selectable from 900 Kbps to 30 Mbps transport-stream bit rates. (Up to 15 Mbps with ARQ.)
  • Simple interconnect: Gigabit Ethernet interface allows simple interconnection to most network equipment for management.
  • Easy to Manage:Easy to manage through web-based user management and SNMP Traps.
  • Reliable: Designed for 24/7 operation.

Matching Decoder:

QVDEC   –   HD/SD H.264 and MPEG-2 decoder with HD/SD-SDI, HDMI and CVBS outputs.
Please click here to see the description and the datasheet

Specifications

Please click on “QVENC Datasheet” for technical specifications.

Ordering Info

QVENC   –   SD H.264 and MPEG-2 encoder, Composite and S-Video inputs, IP output

Available Options:

QVENC-ARQ-Opt    –   ARQ error correction license
QVENC-SDI-Opt   –  License for SDI input
QVENC-HD-Opt   –  License for 720p, 1080i HD encode
QVENC-108op-Opt  –  License for 720p, 1080i, 1080p HD encode
QVENC-ASI-Opt  –  License for ASI (Daughtercard to add ASI I/O)
QVRM-KIT    –  1RU rack mount kit

Matching Decoder:

QVDEC   –   HD/SD H.264 and MPEG-2 decoder with HD/SD-SDI, HDMI and CVBS outputs.
Please click here to see the description and the datasheet
