Encoding: 480i, 576i, 720p, 1080i
Inputs: 8 HDMI or 8 HD/SD-SDI or 8 CVBS
Outputs: 32 IP streams, 1 multiplexed IP stream, 1 ASI multiplexed stream

  • Description
  • Ordering Info

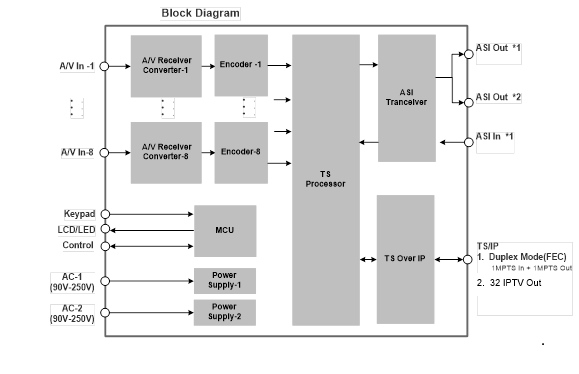

The ADV-4800EC is a high density real-time H.264 HD/SD Encoder that can support encoding of up to eight HD/SD A/V signals. ADV-4800EC consists of two 4-Channel (total 8) H.264/MPEG-2 encoder modules.

All encoders are real time and independent.

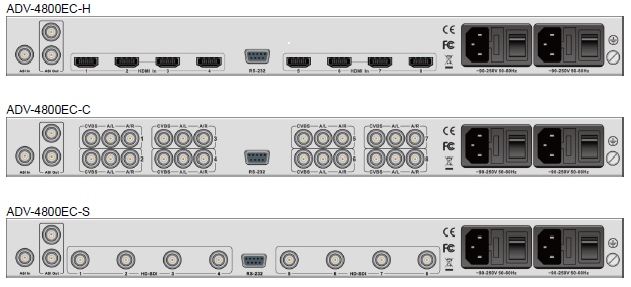

The ADV-4800EC can have up to 8x HDMI or 8x SDI or 8 CVBS input ports as different factory options. The encoded streams can be re-multiplexed and output over  GbE IP and ASI ports.

ADV-4800EC has two TS/IP modes of operation. The first: “Full Duplex”, can combine incoming MPTS or SPTS inputs with internal encoders, and output the result over multicast/unicast.

In the second mode,  “IPTV Output” the unit can output up to 32 individual streams over IP.

Configure, monitor and manage the device using the front panel, Web interface and SNMP.

Main Features

  • Compliant with H.264/AVC HP@L4.0 & MPEG-2 MP@ML
  • Internal re-multiplexer accepts TS from the TS/IP and ASI ports
  • Outputs up to 32 IPTV streams @ total bit rate of 200Mb/s
  • HD/SD Video Resolutions: 1080i,720p,576i,480i
  • MPEG1-L2, MPEG-2/4 AAC-LC/HE-AAC Audio Encoding
  • ASI input (for daisy chain) & Redundant ASI output
  • Full duplex Gigabit TS over IP I/O (with Full duplex mode)
  • Up to 32 multicast/unicast outputs
  • VBR and CBR encoding mode
  • Resolution downscale
  • Remote control/monitoring with SNMP and HTTP/Web interface
  • 2 Redundant Power Supplies
  • 19” x 1 U EIA standard chassis



Ordering Info

ADV-4800EC-S   –   8-Channel H.264/MPEG-2 HD/SD encoder with 8 HD/SD-SDI inputs

ADV-4800EC-S-4  –  4-Channel H.264/MPEG-2 HD/SD encoder with 4 HD/SD-SDI inputs

ADV-4800EC-H     –   8-Channel H.264/MPEG-2 HD/SD encoder with 8 HDMI inputs

ADV-4800EC-H-4    –  4-Channel H.264/MPEG-2 HD/SD encoder with 4 HDMI inputs

ADV-4800EC-C     –   8-Channel H.264/MPEG-2 SD encoder with 8 CVBS inputs

ADV-4800EC-C-4    –  4-Channel H.264/MPEG-2 SD encoder with 4 CVBS inputs
