Description

  • Single or Dual Channel encoder – up to 1080p50/60
  • 3G/HD/SD-SDI and Analog (Composite) inputs
  • Embedded and Analog Audio inputs
  • 2 IP streaming ports
  • UDP/IP Unicast and Multicast streaming
  • Adobe Flash (RTMP) streaming, Apple’s HTTP Live Streaming (HLS)
  • Closed Captions SD and HD support
  • Separate IP ports for streaming and control

The NOVUS-IP Streaming Encoder is a real time compression solution that delivers unrivaled HD and SD video quality. The solution provides operators with the most powerful, cost effective architecture in the industry for enterprise and streaming video markets.

Typical application:

  • Streaming to CDNs; Akamai, UStream, YouTube Live, DaCast, Edgecast, Wowza Cloud service and many others
  • Streaming to media servers; Adobe Media Server, Wowza
  • Internal streaming to PC’s, Set Top Boxes and media servers
  • Point to Point streaming

The NOVUS-IP is ideally suited for IP video distribution over the internet, across a dedicated IP link or internally.

Up to 3 units can be installed in a 1RU rack mount tray, providing 6-channel H.264 HD / SD encoding.

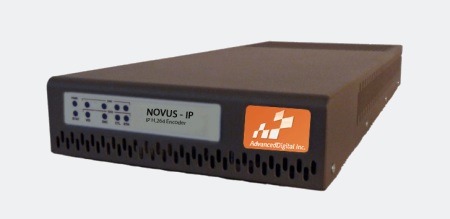

NOVUS - H.264 / MPEG-4 AVC HD/SD Encoder

Key Features

  • Single or Dual-Channel models: NOVUS-IP1,  NOVUS-IP2.
  • Video Inputs: support for Analog (Composite), SD-SDI, HD-SDI, and 3G-SDI, software selectable.      Input video auto-detection.
  • Audio Inputs: unbalanced (or balanced) analog stereo L/R, SDI embedded digital stereo (up to 4 pairs).
  • Outputs: 2 Ethernet ports, supporting 100 Mb/s and 1 Gb/s operation.
  • Support for UDP/IP on Ethernet.
  • Support for HTTP Live Streaming (HLS).
  • Support for RTMP (Adobe Flash) streaming
  • Closed-Captioning support (both EIA-608 and EIA-708 captions).
  • Audio Encoding support: AAC-LC.
  • Separate Ethernet ports for streaming and control.

NOVUS-IP rear

                                     NOVUS-IP1  –  one channel activated
                                     NOVUS-IP2  –  two channels activated

Specifications

Inputs

HD Video
– 3G-SDI (SMPTE 424M) 75 Ohm
– HD-SDI (SMPTE 292M) 75 Ohm
SD Video
– SD-SDI (SMPTE 259M) 75 Ohm with EDH
– Analog (Composite) video (PAL/NTSC) 75 Ohm
– SD-SDI 625 & 525 line standards
Connectors:  BNC 75 Ohm,
RCA (with BNC-to-RCA adapter)

Audio
– Embedded SDI (up to 4 pairs)
– Unbalanced Analog L/R,  RCA (1 pair)
– Balanced Analog (1 pair)

Video Encoding

Settable bit rate
–   500kbps to 10Mbps (depending on profile)
Single/Dual Channel HD Video

– MPEG-4 AVC High profile at level 4.2 (HP@L4.2)
– MPEG-4 AVC High profile at level 4.0 (HP@L4.0)
– CBR & VBR
Single/Dual channel SD Video
– MPEG-4 AVC Main profile at level 3.0 (MP@L3.0)
– CBR & VBR

Network Protocols

– UDP/IP (Unicast and Multicast)
– RTMP (Adobe Flash)
– HTTP Live Streaming (HLS): populates an external web server through FTP or SFTP
– Automatically generates web pages with a video window for HLS (VLC plug in required)

Physical  & Power

Dimensions
– (W x D x H) 146 x 356 x 44mm
– Weight:  2,75 lbs (1.25 kg)
– Desktop or 1RU rack mountable tray available – 3 modules per tray
Fanless design
Power Consumption:
12 W maximum
Power Supply:
– Input 100-250 VAC 47-63Hz
– Built-in, self cooled, 15 W Max

Video Resolutions

High Definition
– 1080 x 1920p  –  60/50/23.98
– 1080 x 1920/1440i  –  25/29.97/30/59.94/60/50
– 720 x 1280p/960  –  25/29.97/30/50/59.94/60
– 960 x 540  –  25/29.97
Standard Definition
– 480 x 720/704/640/528  –  29.97
– 720 x 480p   –  25/29.97/30
– 640 x 360p  –   25/29.97/50/59.94
– 576 x 720/704/640/528  –  25
– 720 x 576p –  25
– 640 x 480p – 29.97
– 528 x 480p – 29.97
– 640 x 576p – 25
– 528 x 576p – 25
Lower Resolutions
– 480×270, 320×240, 320×180

 Audio Encoding

– MPEG-4 AAC-LC
– Lip sync adjustment

Video Pre-processing

– Advanced adaptive spatial filtering
– Closed Captions CEA 608B & CEA-708C
– WSS/AFD

Streaming Network Interface

– 2x 100/1000Base-T RJ-45 ports, auto-negotiate or fixed speed

Management and Control

– 10/100/1000Base-T Ethernet (RJ-45)
– Configuration import/export
– Visual fault warning
– In-band and out-of-band control
– SNMP v1,v2
–  Accurate bit rate control
– Startup to streaming under 45 Sec

Environmental Conditions

Operating Temperature:   0°Cto 50°C (32°F to 122°F)
Operating Humidity: 5% to 95% (non-condensing)

Compliance

– CE: CE marked in accordance with 89/336/EEC, 72/23/EEC and 1999/5/EEC Directives
EMC:  EN55022, EN55024, EN6100, FCC Part 15
SAFETY:  IEC 60950
ROHAS:  2011/65/EU
WEEE:  2012/19/EU

Ordering Info

NOVUS-IP1    –       Single-Channel H.264 HD/SD encoder

NOVUS-IP2    –       Dual-Channel H.264 HD/SD encoder

Available options:

OPT-RACK  –  1RU rack mount tray (holds up to 3 NOVUS encoders)
