NOVUS-RD r2 datasheetNOVUS-RD rear

  • ASI and IP Input/Output
  • Genlock input, FEC, ARQ (optional)
  • SDI, HDMI, CVBS Outputs
  • UDP, RTP, RTMP, RTSP, HLS decoding
  • Resolution: up to 1080p@60
  • SDI/HDMI embedded audio outputs
  • Balanced or Unbalanced audio outputs
  • Description
  • Specifications
  • Ordering Info

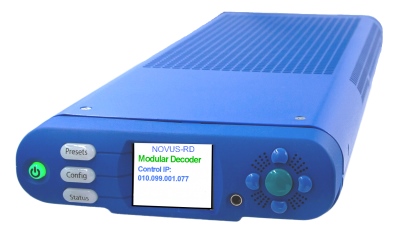

The NOVUS-RD Decoder is a high performance real time MPEG-2 and MPEG-4 SD and HD video decoding solution that is future proofed by design. It is the first professional broadcast decoder that can decode the traditional video formats such as UDP and RTP (MPEG Transport Stream) as well as Internet and Mobile formats such as RTMP (Adobe Flash) and HLS (Apple’s HTTP Live Streaming). Camera protocols such as RTMP and RTSP are also supported.

In addition to full remote control/monitoring via DashBoard™ software, the advanced front panel display/user interface allows configuration setup without needing a computer or connection to remote control.
The decoder has been designed to meet the demanding requirements of the IPTV, Telco, professional broadcast, enterprise video delivery, and streaming video markets.
The NOVUS-RD is a single channel system. If desired, up to three units can be installed in a 1RU rack mount tray.


  • MPEG-2 and MPEG-4 AVC video decoding
  • MPEG-1 Layer 2, MPEG-1 Layer 3, AAC-LC, AAC-HE, E-AC-3 and AC-3 audio decoding
  • UDP, RTP, RTMP, RTSP, HLS support
  • FEC support (optional)
  • ARQ support (optional)
  • SCTE-35 to SCTE-104 conversion
  • SPTS Stream Splitting: remultiplexing ASI MPTS to multiple SPTS IP streams
  • Management and control via Dashboard software or SNMP (MIB included)
  • IP reception of unicast or multicast
  • SDI, HDMI, Composite, IP and ASI outputs
  • Dolby audio pass-through and down mixing
  • Genlock input
  •  Dual-redundant internal power supplies


  • Inputs and Outputs

    IP; 1000Base-T RJ-45
    Genlock (from frame ref 1/2)
    IP, 1000Base-T RJ-45
    HD/SD-SDI 75Ω BNC (4:2:2 10-bit)
    CVBS (Composite Analog)
    Unbalanced Audio (RCA), or
    Balanced Audio (terminal block)

    Network Transport Protocols

    UDP (Unicast and Multicast)
    RTP (Unicast and Multicast)
    RTMP Client or Server (Adobe Flash)
    HLS (HTTP Live streaming) client
    RTSP (Security Cameras)
    SMPTE-2022 Pro-MPEG FEC

    Video Processing

    – MPEG-2
    – MPEG-4 AVC (H.264)
    Video Resolutions
    1920 x 1080p – 50/59.94/60
    1920 x 1080i – 50/59.94/60
    720 x 1280p – 50/59.94
    480 x 720 – 29.97
    576 x 720 – 25

    Audio Processing

    – MPEG-1 Layer 2 (mp2)
    – AAC-LC
    – HE-AAC
    – AC-3 (stereo output)
    – E-AC-3 (stereo output)
    Dolby Pass Through

  • Management

    10/100/1000Base-T Ethernet (RJ-45)
    Configuration import/export
    Front Panel
    SNMP v1,v2


    (W x D x H) 146 x 356 x 44mm
    Desktop or 1RU rack,mountable tray available—3 modules per tray
    8 Watts total power consumption
    AC input 100-240 VAC 47-63Hz
    Convection cooling


    Operating Temperature: 0°Cto 50°C (32°F to 122°F)
    Operating Humidity: 5% to 95% (non-condensing)


    CE: CE marked in accordance with 89/336/EEC, 72/23/EEC and 1999/5/EEC Directives
    EMC: EN55022, EN55024, EN61000-3-2
    FCC Part 15
    SAFETY: IEC 60950
    ROHS: 2011/65/EU
    WEEE: 2012/19/EU

    Ordering Info

    NOVUS-RD – H.264 (MPEG-4 AVC) and MPEG-2 HD/SD decoder


    OPT-GEN – Genlock License

    OPT-DOL – Dolby Decode License

    OPT-IPOUT – supports SPTS Stream Splitting and MPTS output

    OPT-RTMPServer  –  supports RTMP server mode

    OPT-FEC  –  SMPTE 2022 Forward Error Correction License

    OPT-ARQ  –   Automatic Repeat Request, Error Correction Assigned For Live Video Over IP / Internet Based on the Reliable Internet Streaming Transport (RIST) Standard

    OPT-RACK   –   1RU Mounting Tray (supports up to three NOVUS-RD units)
