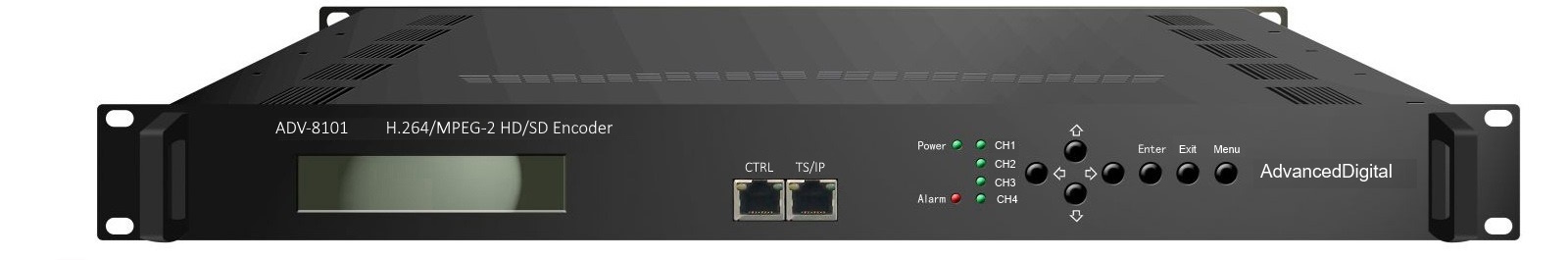

The ADV-8101 is a high quality professional video/audio encoder suitable for broadcasting applications. The encoding channel can be selected from an option of SDI with embedded audio or HDMI with embedded audio or CVBS/HDMI/YPbPr video inputs and unbalanced audio inputs.

For video the encoder supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and Dolby Digital AC3 for audio encoding.

ADV-8101 has built-in multiplexer with ASI input. It can multiplex the input TS with the encoded program to generate a MPTS output.

ADV-8101 has 2 ASI outputs and IP output port that can output 4 SPTS and one MPTS, unicast/multicast.

Key Features

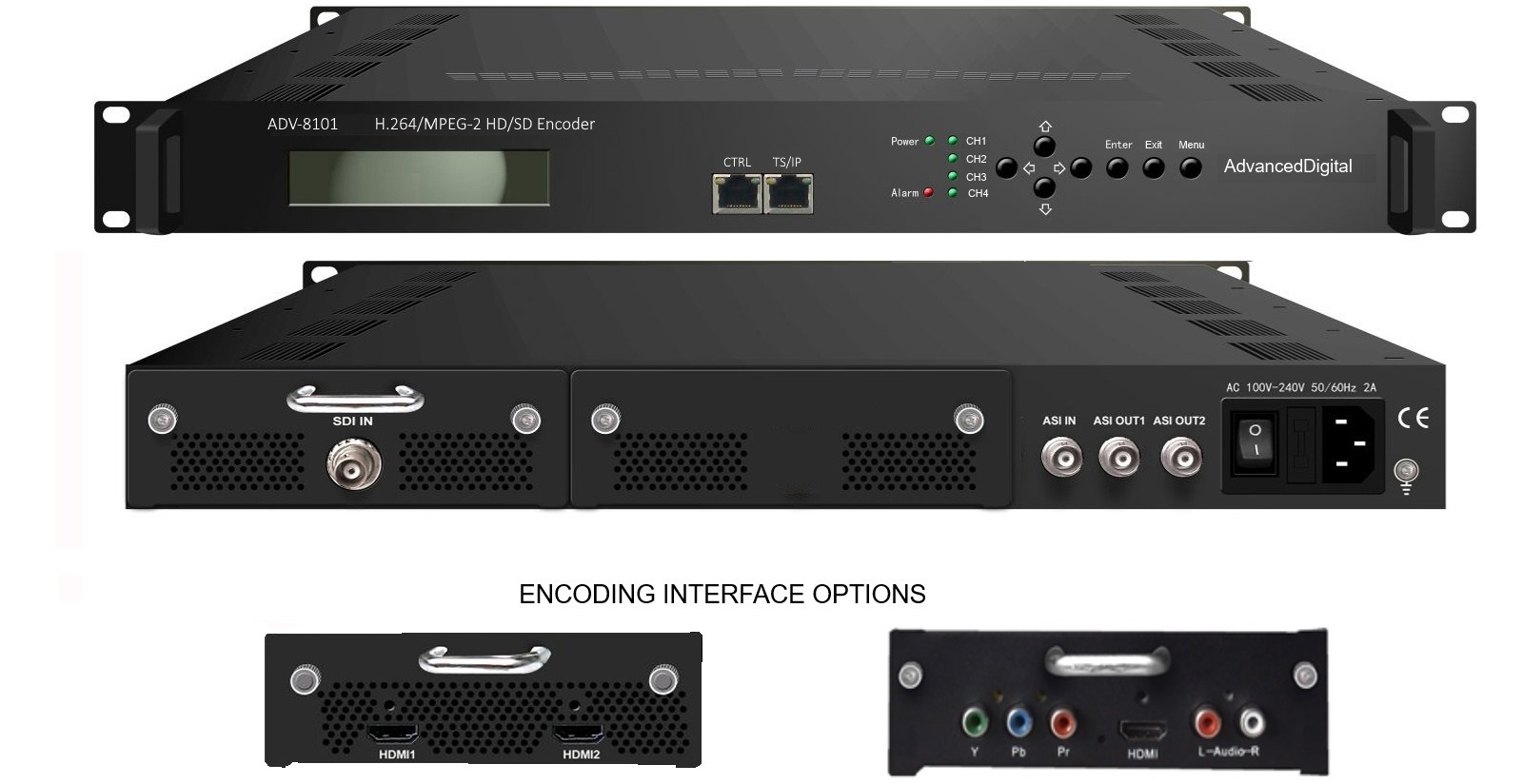

  • Choice of SDI or HDMI or HDMI/CVBS/YPbPr video inputs
  • 264/MPEG-4 AVC and MPEG2 HD/SD video encoding
  • Encode up to 1080p for H.264 and up to 1080i for MPEG-2
  • MPEG1 Layer 2, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 audio encoding
  • 2x ASI outputs (MPTS or SPTS)
  • IP output: 1 MPTS and 4 SPTS MPEG-TS over UDP, RTP/RTSP
  • CC (closed captioning), EIA 608 and EIA 708 for SDI interface
  • ASI input, Built-in multiplexer
  • Low Latency function
  • PSI/SI editing and inserting
  • IP null packet filter
  • VBR/CBR video encoding
  • LCD / keyboard and web control

Ordering Info

ADV-8101-S  –  Single-channel H.264/MPEG-2 HD/SD encoder with SDI input

ADV-8101-H  –  Single-channel H.264/MPEG-2 HD/SD encoder with HDMI input

ADV-8101-C  –  Single-channel H.264/MPEG-2 HD/SD encoder with HDMI/CVBS/YPbPr inputs
