Inputs: HD/SD-SDI, HDMI, Component, Composite
Outputs: ASI, IP (unicast/multicast)
Audio: 4 stereo or 8 mono audio encoding

  • Description
  • Ordering Info

Description

The ADV-8100 is a low-latency broadcast video and audio encoder supporting advanced functionality at a lower price point. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR) to be compatible with different signal sources.

Multiple audio and video encoding formats are available to meet customers’ various requirements.
It supports 4 stereo (8 mono) or one DD 2.0/5.1 (AC3) audios.
ADV-8100 has ASI and IP outputs.
It supports OSD insertion: QR code, LOGO, Caption.

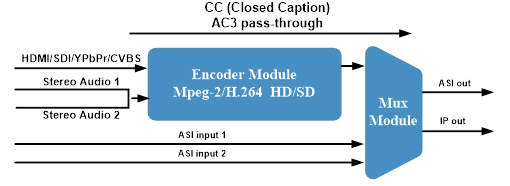

adv-8100-diagram

Key Features

  • MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoder
  • Supports 1080i, 720p, 480i, 576i video resolutions and downscaling
  • Chroma: 4:2:0, 4:2:2
  • MPEG1 Layer II, HE-AAC, LC-AAC and DD AC3 audio encoding
  • DD AC3 audio passthrough (SDI in)
  • 4 stereo or 8 mono audio encoding
  • Low latency
  • OSD insertion: QR code, LOGO, Caption
  • CC support: EIA 608 and EIA 708 (for CVBS and SDI in)
  • ASI and IP output
  • Front panel and web control

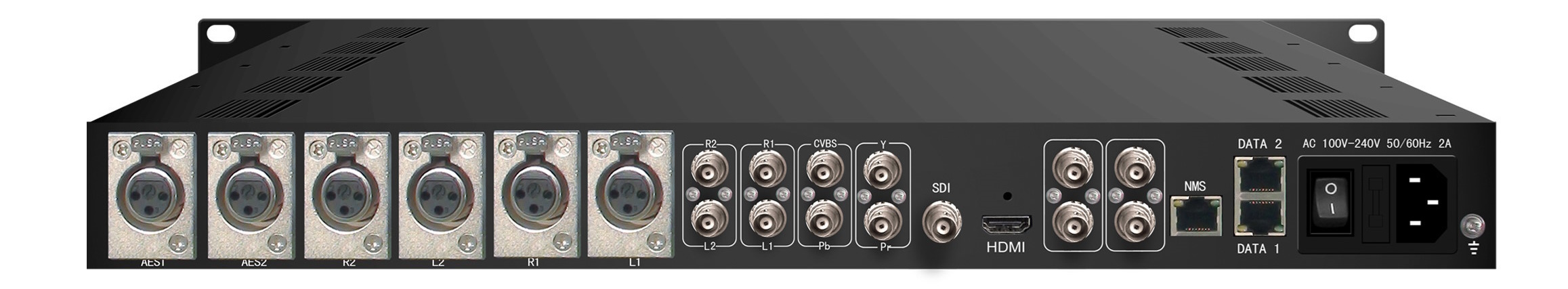

adv-8100-back

Ordering Info

ADV-8100 – MPEG-2/H.264 HD/SD Encoder
