• 16 RF tuners, select from DVB-S/S2, DVB-C/T/T2, ISDB-T, ATSC
  • 2 ASI inputs
  • Built in multiplexer/remultiplexer
  • Up to 512 TV programs (IPTV streams) output
  • BISS Descrambler
  • Description
  • Specifications
  • ORDERING INFO

Description

The ADV-8716 is a high-density Receiver / IPTV Gateway equipped with 16 independent RF tuners, these can either one of DVB-S/S2, DVB-C/T/T2, ISDB-T and ATSC.
It is also equipped with 2 ASI input ports.

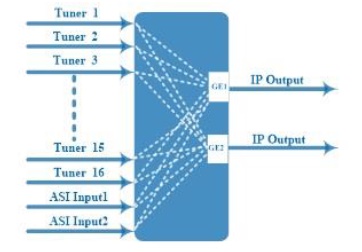

The device contains a built-in remultiplexer and can output up to 16 MPTS or up to 512 SPTS over UDP and RTP/RTSP protocols.
ADV-8716 supports BISS descrambling.
The built-in web server allows for the configuration of the ADV-8716 with a standard web browser.

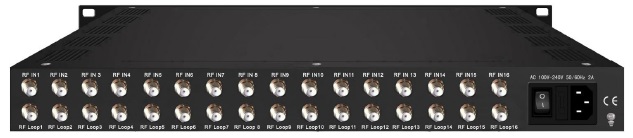

Back Panel Interface



KEY FEATURES

  • 16 RF tuners, choice of DVB- S/S2, DVB-C/T/T2, ISDB-T, ATSC
  • 2 ASI inputs
  • BISS descrambling
  • DisEqc support
  • User selectable modes of operation: 16 MPTS or 512 SPTS
  • 2x GE mirrored output ports, up to 850Mbps per port, for SPTS mode
  • x independent GE output port, GE1 + GE2, for MPTS mode
  • PID filtering, re-mapping (only for SPTS output)
  • Supports “Null PKT Filter” function (for MPTS output)
  • Web management

Specifications

Click on “ADV-8716 Datasheet” for technical specifications

ORDERING INFO

ADV-8716S   –   Receiver / IPTV Gateway with 16 DVB-S/S2 tuners
ADV-8716T   –   Receiver / IPTV Gateway with 16 DVB-C/T/T2 tuners
ADV-8716A   –   Receiver / IPTV Gateway with 16 ATSC tuners
ADV-8716I    –   Receiver / IPTV Gateway with 16 ISDB-T tuners
