• 2 tuners input: choice of DVB-S/S2/S2X, DVB-C/T/T2/ISDB-T, ATSC
  • IP and ASI inputs
  • Decoding; 4:2:0 SD/HD (up to 1080p), MPEG-2, H.264/MPEG-4 AVC/H.265
  • HD/SD-SDI, HDMI, Composite Outputs
  • Audio Decoding: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus
  • AC3 passthrough
  • Audio outputs: two stereo audio pairs, HDMI embedded, SDI embedded, DB-15 to (XLR, RCA, AES, SPDIF) cable
  • 2x ASI mirrored outputs
  • IPTV Gateway: IP outputs – 1x MPTS and 16x SPTS. UDP and RTP/RTSP, unicast/multicast
  • BISS Descrambler
  • 2x DVB-CI Slots, each CAM can decrypt multiple programs
  • CC (EIA608, EIA708) and Teletext (only for SDI)
  • Description
  • Ordering Info

Description

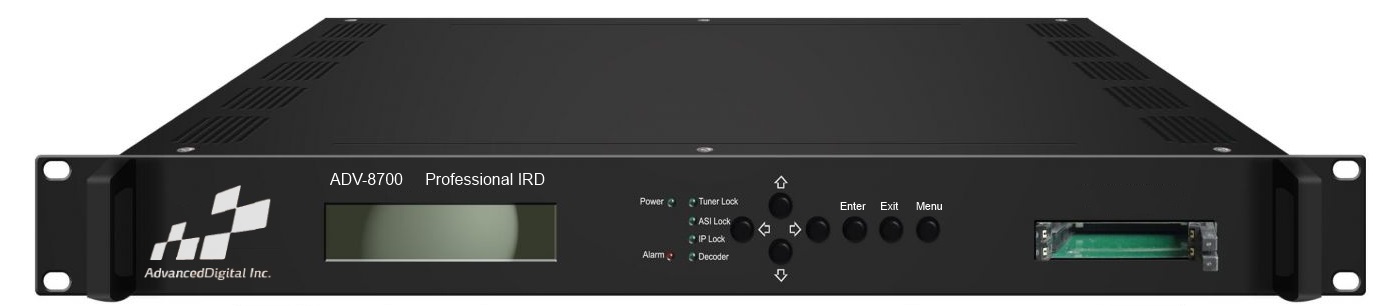

ADV-8700 is a professional IRD / IPTV Gateway with powerful functionality.
It is equipped with 2 tuners, a combination of DVB-C/T/T2/ISDB-T, DVB-S/S2/S2X, ATSC to receive signals from satellite, cable or terrestrial sources. It supports digital TS input via both IP and ASI inputs.

The ADV-8700’s re-multiplexing capabilities enable creation of new transport streams by combining existing sources. Customized services may be output as 16x SPTS and one MPTS over IP, as well as over 2x ASI mirrored output ports. Through the dual DVB common interfaces, ADV-8700 has the capability to decrypt multiple services present in transport streams. BISS decryption is also supported.

ADV-8700 is also a professional IRD that features a broadcast quality decoder for MPEG-2, MPEG-4 AVC/H.264 and H.265/HEVC in both SD, HD formats, and provides a variety of industry standard digital and analog outputs, including SDI, HDMI, CVBS video, and two stereo audio pairs.

It supports MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC, Dolby Digital/Dolby Digital Plus audio decoding and AC3 passthrough.

Applications

  • Perfect as a DVB-S/S2/S2X to IP Converter
  • Convert other DVB standards such as ATSC, DVB-T2/T2, DVB-C to IP
  • H.265 decoder
  • Broadcast DVB-S/S2/S2 receiver and decoder
  • DVB-T/T2 receiver and decoder
  • DVB-C or ATSC receiver and decoder
  • SDI/HDMI/CVBS decoder

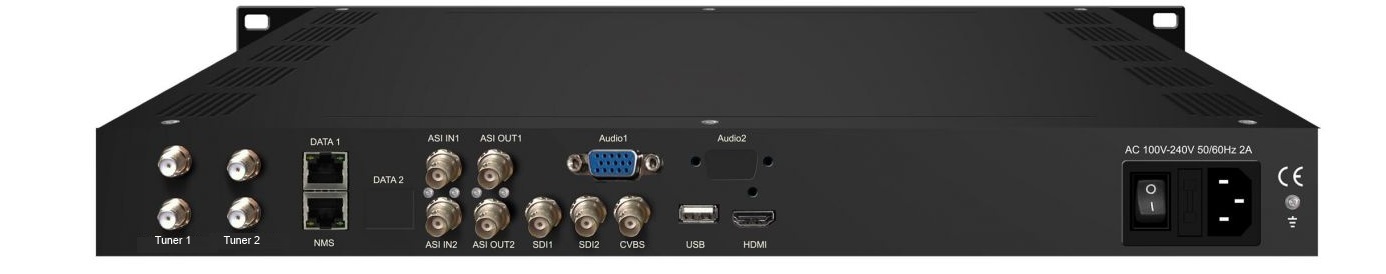

Back Panel

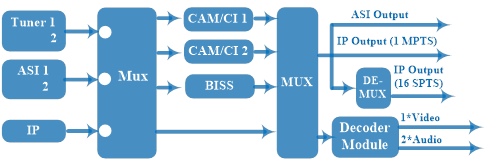

Block Diagram



Additional Features

  • Demodulator + descrambler + re-mux + decoder in one device
  • Choice of two DVB-C/T/T2/ISDB-T, DVB-/S/S2/S2X, ATSC tuners
  • 2x ASI & 16x IP (UDP/RTP) input for re-mux and decoding
  • Two CAMs, each can decrypt multiple programs from Tuners/ASI/IP
  • BISS descrambling
  • MPEG2, MPEG4 AVC/H.264, HEVC/H.265 video decoding
  • HD/SD decoding: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Chroma 4:2:0
  • HD/SD-SDI, HDMI, CVBS video outputs
  • Audio Decoding: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus
  • AC3 passthrough
  • Audio outputs: two stereo audio pairs, HDMI embedded, SDI embedded, DB-15 to (XLR, RCA, AES, SPDIF) cable
  • IP (1 MPTS & 16 SPTS) over UDP and RTP/RTSP output (unicast/multicast)
  • Two ASI mirrored outputs as a copy of IP MPTS
  • CC (EIA608, EIA708) and Teletext (only for SDI)
  • Maximum 128 PID mapping per input
  • LCD display, front panel and remote control, web NMS management

Ordering Info

ADV-8700S   –   Professional IRD with 2 DVB-S/S2/S2X tuners

ADV-8700A   –   Professional IRD with 2 ATSC (8-VSB) tuners

ADV-8700T   –   Professional IRD with 2 DVB-C/T/T2/ISDB-T tuners

ADV-8700ST  –   Professional IRD with 1 DVB-S/S2/S2X and 1 DVB-C/T/T2/ISDB-T tuners

ADV-8700SA  –  Professional IRD with 1 DVB-S/S2/S2X and 1 ATSC tuners

ADV-8700TA  –  Professional IRD with 1 DVB-C/T/T2/ISDB-T and 1 ATSC tuners
