–  IP and ASI inputs
–  RF (30-999 MHz) output
–  QPSK, 16QAM, 64QAM, 256QAM Constellations
–  Non-linear and linear digital pre-correction

  • Descriptions
  • Specifications
  • Ordering Info

Descriptions

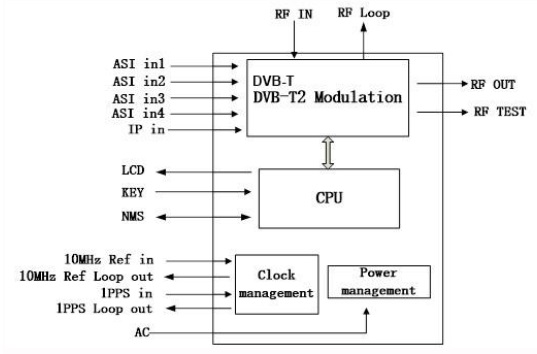

The ADV-8410 is a broadcast modulator designed for operations in full compliance with the DVB-T and DVB-T2 standards. It offers a cost effective, professional solution for generating high-quality RF signals suitable for broadcasting. The ADV-8410 includes linear and non-linear Digital Pre-Correction (DPC) that can optimize the efficiency of the transmission.
It can operate in MFN environments, supports single-PLP, and can receive transmission signal through its ASI and IP ports.
The ADV-8410 is controllable through the WEB based interface or the front panel.



Feature Highlights

  • Complies with EN300 744 and EN302 755 standards

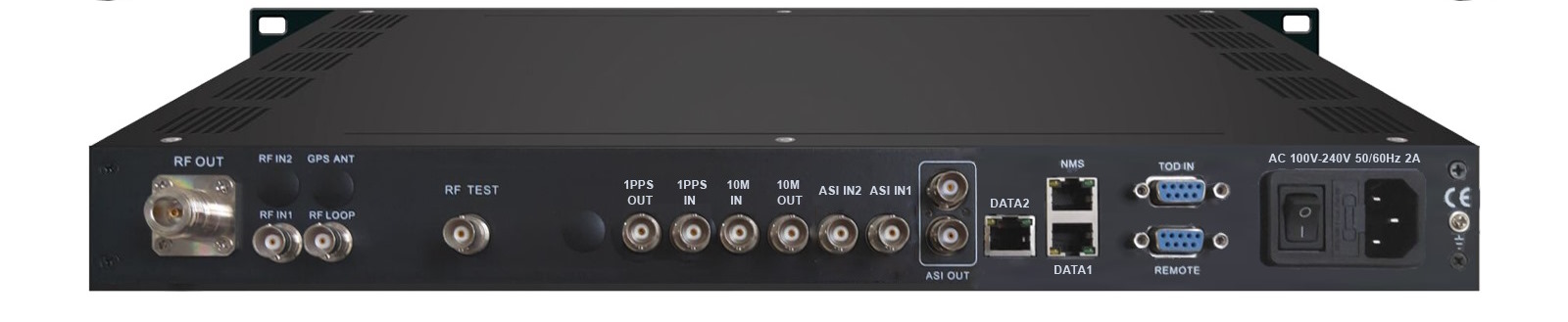

  • 4 ASI input ports (3 ports for backup)
  • TS over IP input (UDP)
  • 10MHz input / loop out, 1PPS input / loop out
  • DVB-T or DVB-T2 RF output, 30~999Mhz, 1Hz step
  • Support for single PLP
  • Support for MISO and SISO
  • Supports QPSK/16QAM/64QAM/256QAM
  • High performance output: MER>43dB, shoulder level>56dB
  • Output signal bandwidth: 5M, 6M, 7M, 8MHz
  • Supports MFN mode
  • Supports non-linear and linear digital pre-correction (DPC)
  • RF output level: -25~+3 dBm, with 0.1db step
  • Constant temperature crystal oscillator with 0.1ppm stability

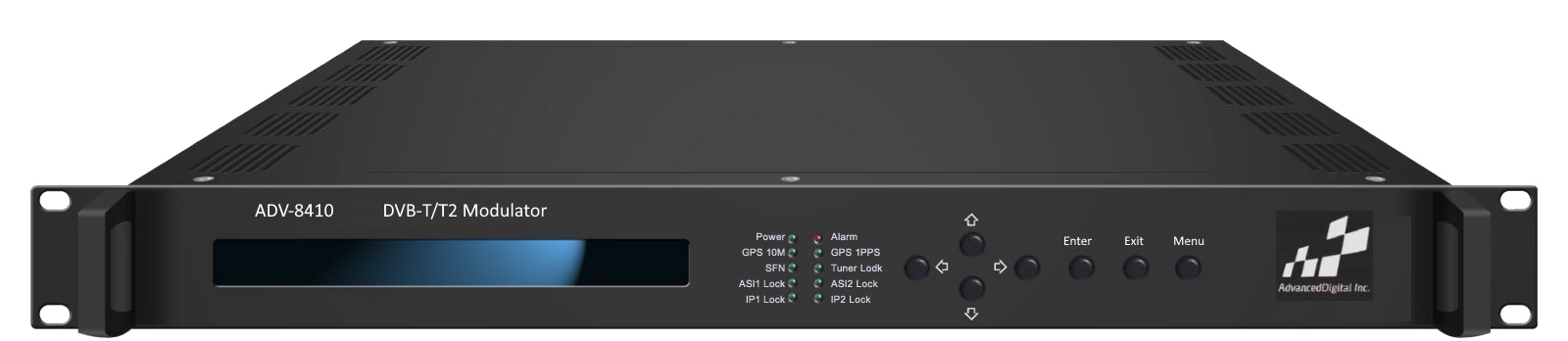

ADV-8410 - DVB-T2 Modulator

Specifications

Click on “ADV-8410 Datasheet” for technical specifications

Ordering Info

ADV-8410    –   DVB-T/T2 Modulator
