–  IP, ASI, RF inputs
–  8 DVB-T RF output non-adjacent channels (50-960 MHz)
–  8 built-in multiplexers
–  Excellent RF output performance, MER≥40db

  • Descriptions
  • Specifications
  • Ordering Info

Descriptions

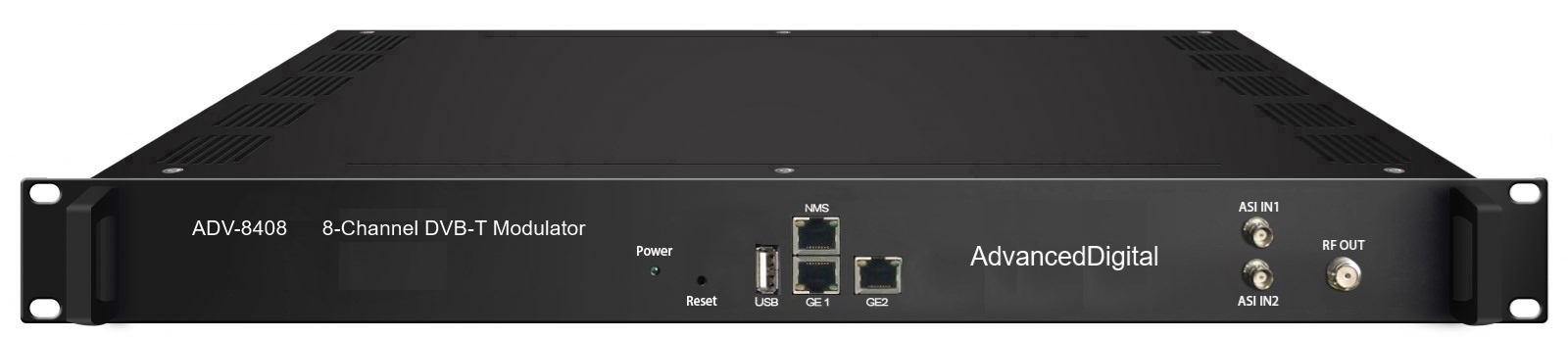

The ADV-8408 is a broadcast 8-channel DVB-T modulator designed for full compliance with DVB-T modulation standard.

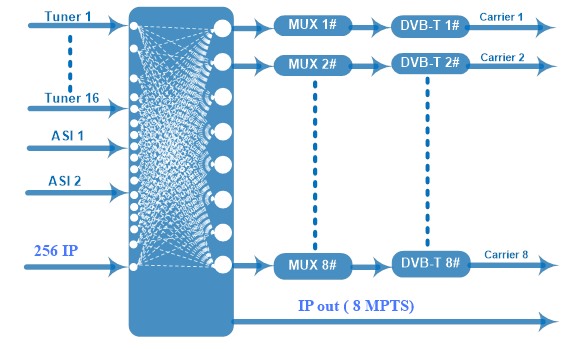

It has 16 RF FTA tuner inputs (choice of DVB-S/S2/T/T2/C, ATSC, ISDB-T), 8 multiplexing channels and 8 DVB-T modulating channels.
It supports up to 512 IP inputs (unicast/multicast) through its onboard GE port, as well as 2 ASI input ports.
Use as a multi-standard to DVB-T trans-modulator or a standalone DVB-T broadcast modulator.


Feature Highlights

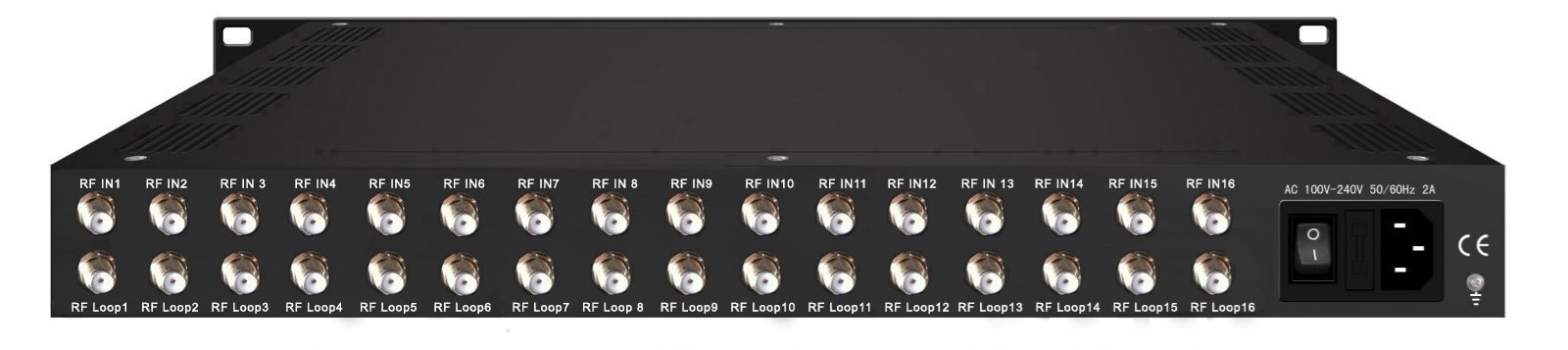

  • 16 RF tuners (choice of DVB-S/S2/T/T2/C, ATSC, ISDB-T)
  • 2 ASI inputs, BNC interface
  • 512 IP inputs over UDP/RTP, unicast/multicast
  • 8 built-in multiplexers
  • 8 DVB-T RF output non-adjacent channels, 50-960 MHz
  • Excellent RF output performance, MER40db
  • Accurate PCR adjustment
  • PSI/SI re-generation and insertion
  • Web Network management

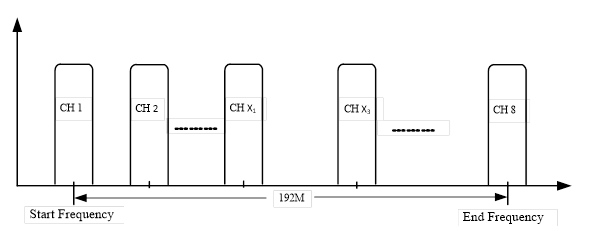

 Carriers Settings



Specifications

Click on “ADV-8408 Datasheet” for technical specifications

Ordering Info

ADV-8408  –  8-channel DVB-T modulator (without tuners)

ADV-8408S  –  8-channel DVB-T modulator with 16 DVB-S/S2 tuners

ADV-8408C  –  8-channel DVB-T modulator with 16 DVB-C tuners

ADV-8408T  –  8-channel DVB-T modulator with 16 DVB-T/T2 tuners

ADV-8408A  –  8-channel DVB-T modulator with 16 ATSC tuners

ADV-8408I  –  8-channel DVB-T modulator with 16 ISDB-T tuners
