- Ultra-Low bitrate encoding without compromise on quality
- HD encoding up to Full HD: 720p, 1080i, 1080p
- 4/8/12 encoding channels H.265 or H.264
- Supports Noise Reduction, De-interlacing and Sharpening functions
- 4/8/12 HD-SDI inputs
- IP outputs: 4/8/12 SPTS
- IP output formats: SRT, UDP, RTP, RTSP, RTMP, HTTP, HLS
- Web control
Description
The ADV-8117 is AdvancedDigital’s newest encoder, utilizing the latest high quality, low bitrate H.265 High Efficiency Video Coding (HEVC) technologies. This next generation encoder allows content creators encode HD content while maintaining the current data bandwidth and storage requirements they’ve enjoyed with previous generation H.264 encoders. This allows operators to improve video quality without having to massively upgrade their entire network bandwidth and storage. Various TS/IP output formats ensure that the encoder’s output can be fed into the existing broadcast infrastructure. To be used as input to modulators, multiplexer’s, IRD’s, storage servers, etc.

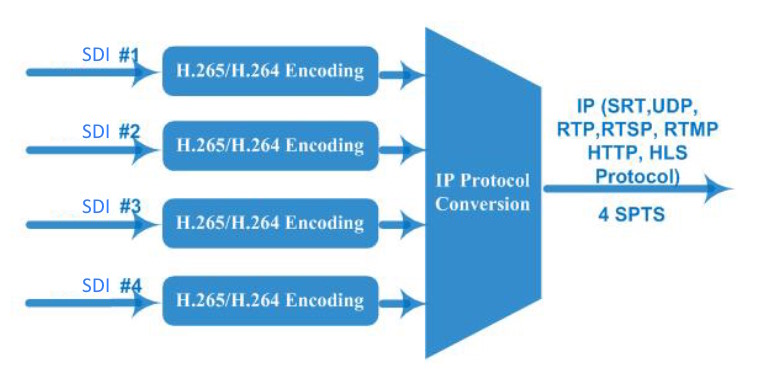

BLOCK DIAGRAM FOR ONE MODULE

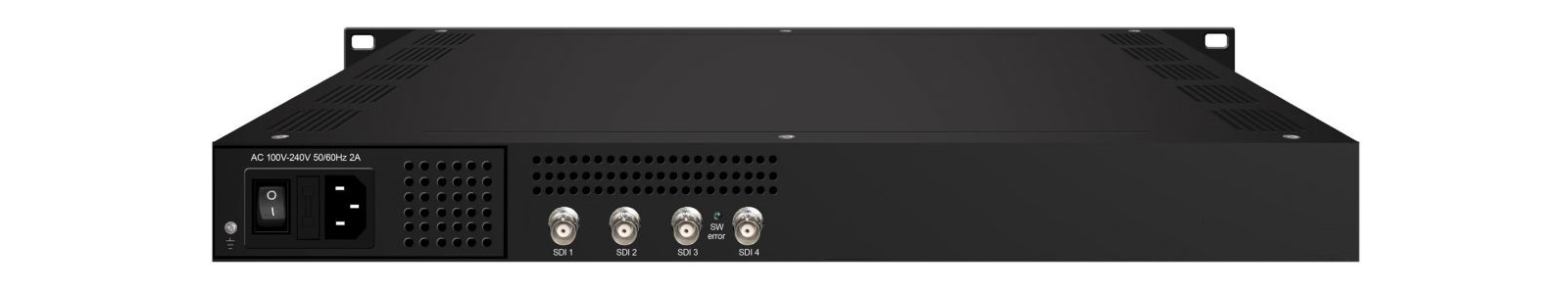

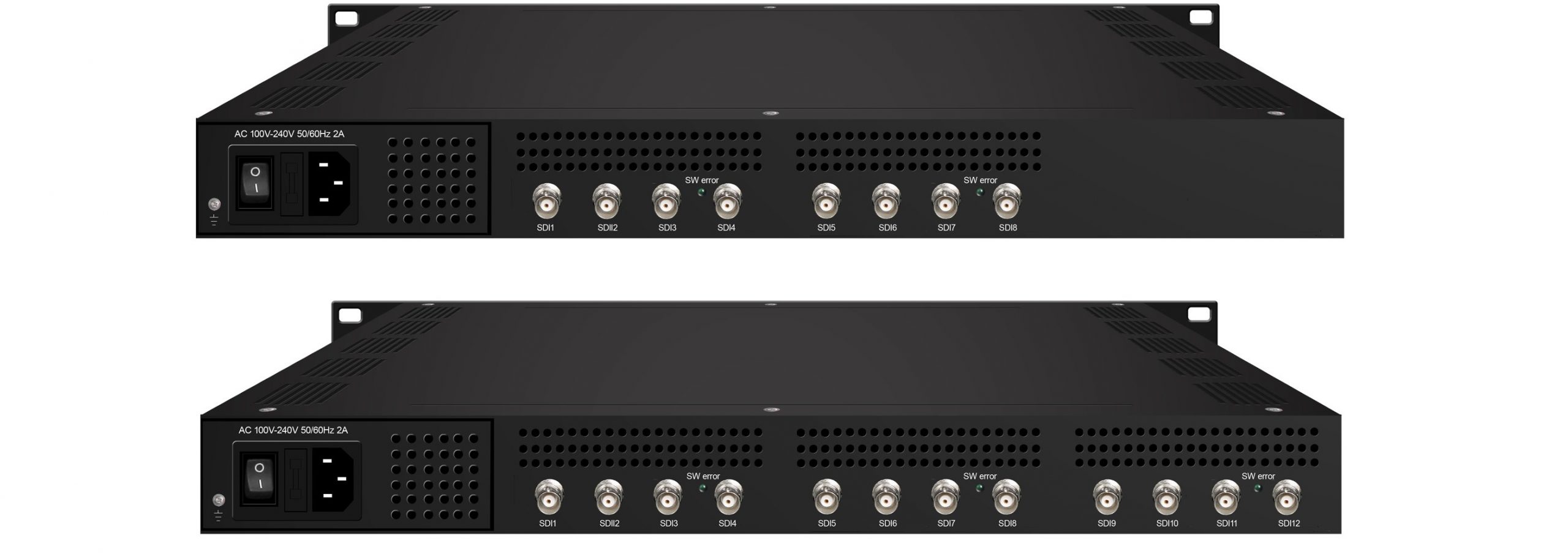

Back Panel
Specifications
| Inputs | 4/8/12 HD-SDI (1/2/3 modules)
|
||||
| Video
Encoding |
Encoding Format | H.265/HEVC, H.264/MPEG-4 AVC | |||
| Input resolution
(per one module) |
Output resolution
(per one module) |
||||
| HEVC/H.265 | MPEG-4 AVC / H.264 | ||||
| 4x 1080P-50/60 | 4x 1080P-50/60 | 2x 1080P-50/60 | |||
| 4x 1080I-50/60 |
4x 1080P-50/60
|
4x 1080I-50/60 or
2x 1080P-50/60 |
|||
| 4x 720P-50/60 | 4x 720P-50/60 | 4x 720P-50/60 | |||
| Chroma | 4:2:0 | ||||
| Bitrate (per channel) | 0.5 Mbps ~ 20 Mbps | ||||
| Rate Control | CBR/VBR | ||||
| GOP Structure | IBBP, IPPP | ||||
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | ||||
| Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
AC3 Passthrough |
|||
| Sampling rate | 48KHz | ||||
| Bitrate | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
||||
| Audio Gain | 0~255 | ||||
| Stream output | Per one module: 4 SPTS output over SRT/UDP/RTP/RTSP/RTMP/HTTP/HLS. 1000M/100M Base-T Ethernet interface (unicast/multicast), IPv4, IPv6 output, IP null packet filter | ||||
| Control | Web based management and firmware upgrade | ||||
| Other | Dimensions (W× L× H) | 482mm×328mm×44mm | |||
| Approx weight | 5kg | ||||
| Temperature | 0~45℃(operating), -20~80（storage） | ||||
| Power | AC 100V-220V±10%, 50/60Hz | ||||
Ordering Info
ADV-8117-4 – H.265/H.264 HD Encoder with 4 HD-SDI inputs
ADV-8117-8 – H.265/H.264 HD Encoder with 8 HD-SDI inputs
ADV-8117-12 – H.265/H.264 HD Encoder with 12 HD-SDI inputs
