• Up to 12 encoding channels
  • Inputs: 4/8/12 HD-SDI
  • IP Output: 1/2/3 MPTS and 4/8/12 SPTS, unicast/multicast
  • HD Encoding of up to 1080p@60MHz
  • Description
  • Specifications
  • Ordering Info

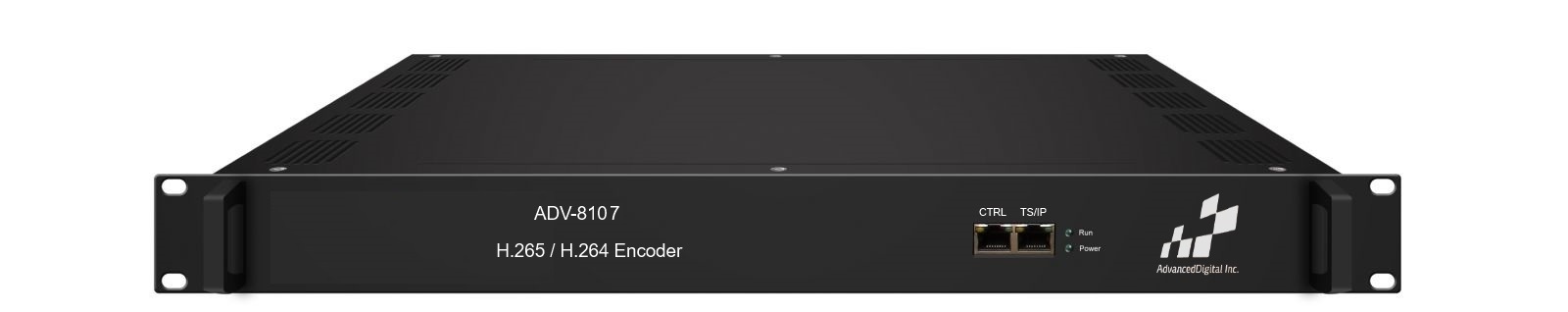

The ADV-8107 is AdvancedDigital’s newest encoder, utilizing the latest high quality, low bitrate H.265 High Efficiency Video Coding (HEVC) technologies. This next generation encoder allows content creators encode HD content while maintaining the current data bandwidth and storage requirements they’ve enjoyed with previous generation H.264 encoders. This allows operators to improve video quality without having to massively upgrade their entire network bandwidth and storage.
Standard TS/IP output ensure that the encoder’s output can be fed into the existing broadcast infrastructure. To be used as input to modulators, multiplexer’s, IRD’s, and storage servers.

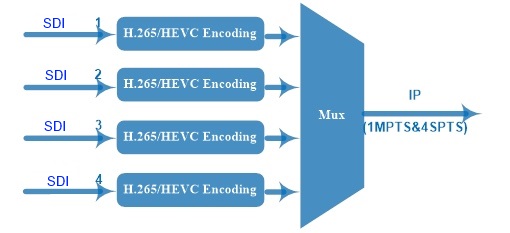

                                             BLOCK DIAGRAM FOR ONE MODULE

Key Features

  • Low bitrate encoding without compromise on quality
  • Full HD 1080p encoding of up to 1080p@60Hz
  • 4/8/12 encoding channels H.265 or 2/4/6 encoding channels H.264
  • Supports Noise Reduction, De-interlacing and Sharpening functions
  • 4/8/12 HD-SDI inputs
  • Web control

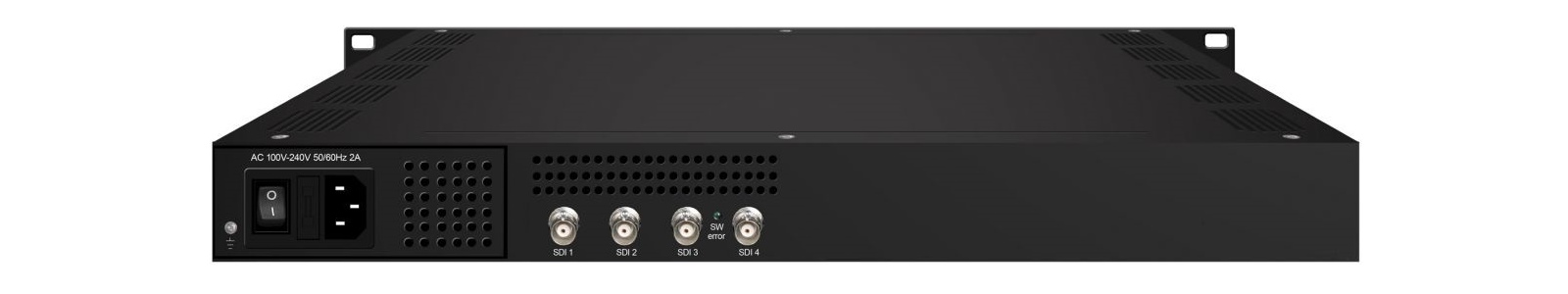

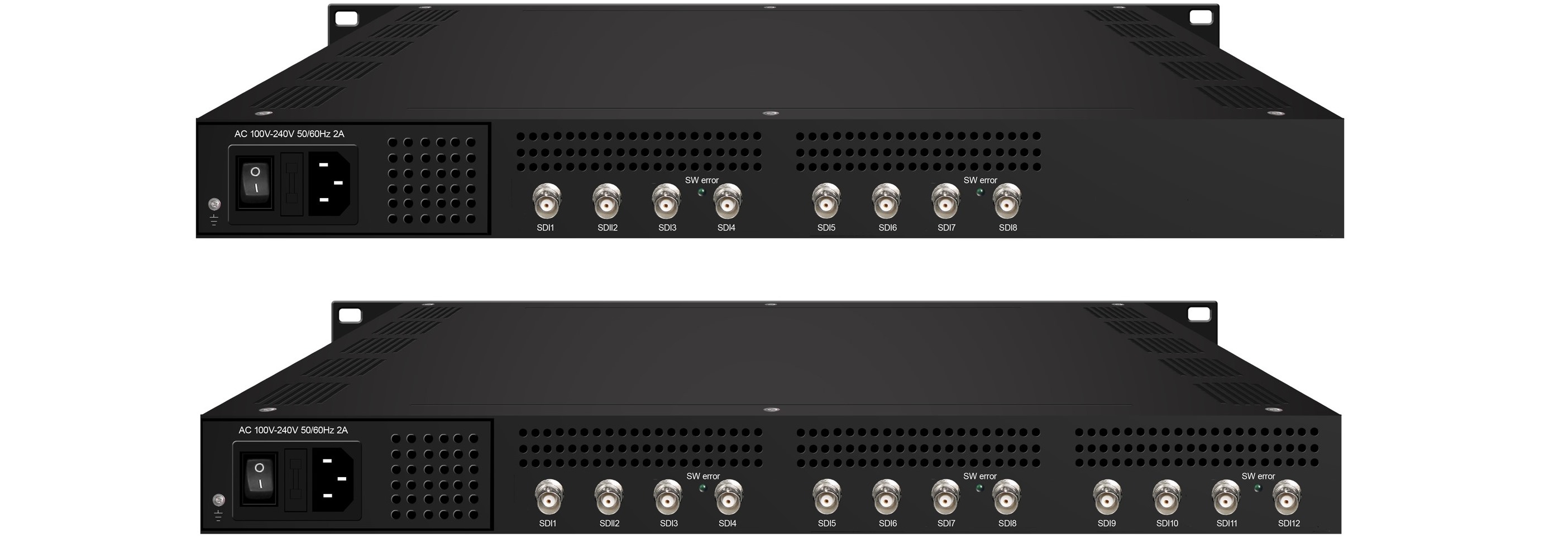

Back Panel


Inputs 4/8/12 HD-SDI inputs



Encoding Format


H.265/HEVC, H.264/MPEG-4 AVC

Resolution Input/Output:
1920×1080@60P, 1920×1080@59.94P, 1920×1080@50P
(encoding 4/8/12 channels for H.265 or 2/4/6 channels
for H.264);Input:
1920×1080@60i, 1920×1080@59.94i, 1920×1080@50i
1920×1080@60P, 1920×1080@59.94P, 1920×1080@50P
(encoding 4/8/12 channels for H.265 or 2/4/6 channels
for H.264):Input/Output:
1280×720@60P, 1280×720@59.94P, 1280×720@50P
(encoding 4/8/12 channels for H.265 or H.264)
Chroma 4:2:0
Bitrate 0.5Mbps~20Mbps (each channel)
Rate Control CBR/VBR
GOP Structure IBBP, IPPP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio Encoding


Encoding Format




Sampling rate



Bitrate 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)

24 Kbps~128 Kbps (HE-AAC)

18 Kbps~56 Kbps (HE-AAC V2)

Audio Gain 0~255

Stream output


1/2/3 MPTS and 4/8/12 SPTS output over UDP/RTP/RTSP, 1000M/100M Base-T Ethernet interface.
Supporting unicast and multicast. IP null packet filter


Web based management and firmware upgrade


Other Dimension (W× L× H) 482mm×328mm×44mm
Approx weight 5kg
Temperature 0~45℃(operating),  -20~80(storage)
Power AC 100V-220V±10%, 50/60Hz

Ordering Info

ADV-8107-4  –  H.265/H.264 HD Encoder with 4 HD-SDI inputs

ADV-8107-8  –  H.265/H.264 HD Encoder with 8 HD-SDI inputs

ADV-8107-12  –  H.265/H.264 HD Encoder with 12 HD-SDI inputs
