Up to 12 encoding channels
Inputs: 4/8/12 HDMI, supporting HDCP
IP Output: 1/2/3 MPTS and 4/8/12 SPTS, unicast/multicast
HD Encoding of up to 1080p@60Hz
Description

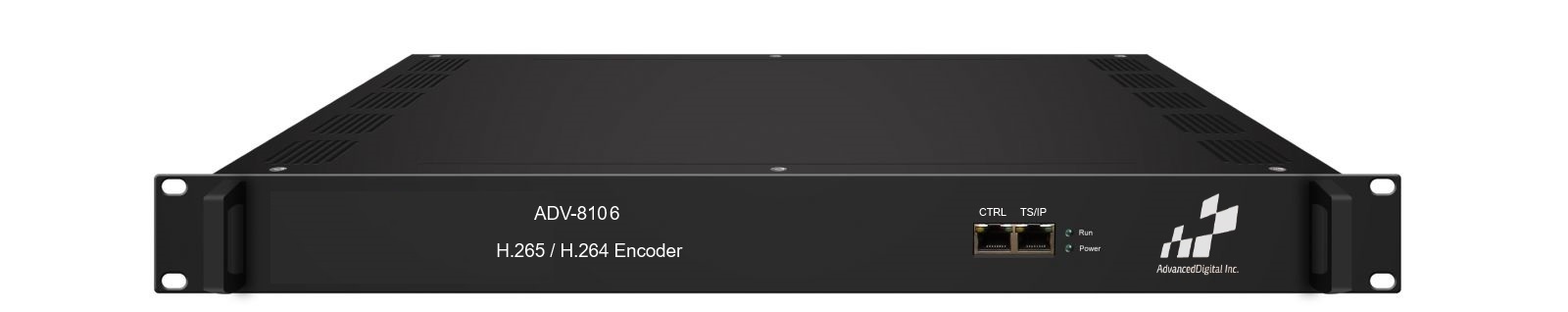

The ADV-8106 is AdvancedDigital’s newest encoder, utilizing the latest high quality, low bitrate H.265 High Efficiency Video Coding (HEVC) technologies.
This next generation encoder allows content creators to encode HD content while maintaining the current data bandwidth and storage requirements they’ve enjoyed with previous generation H.264 encoders. This allows broadcast operators to improve video quality without having to massively upgrade their entire network bandwidth and storage. Standard TS over IP output ensure that the encoder’s output can be fed into the existing broadcast infrastructure. To be used as input to modulators, multiplexer’s, IRD’s, and storage servers.

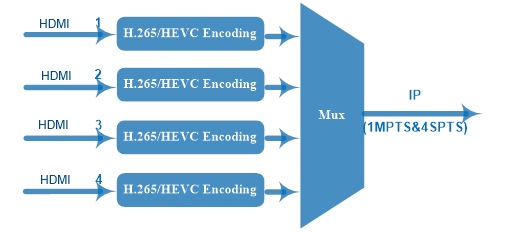

BLOCK DIAGRAM FOR ONE MODULE
Key Features
- Low bitrate encoding without compromise on quality
- Full HD 1080p encoding of up to 1080p@60Hz
- 4/8/12 encoding channels H.265 or H.264
- Supports Noise Reduction, De-interlacing and Sharpening functions
- 4/8/12 HDMI inputs, HDCP support
- Web control

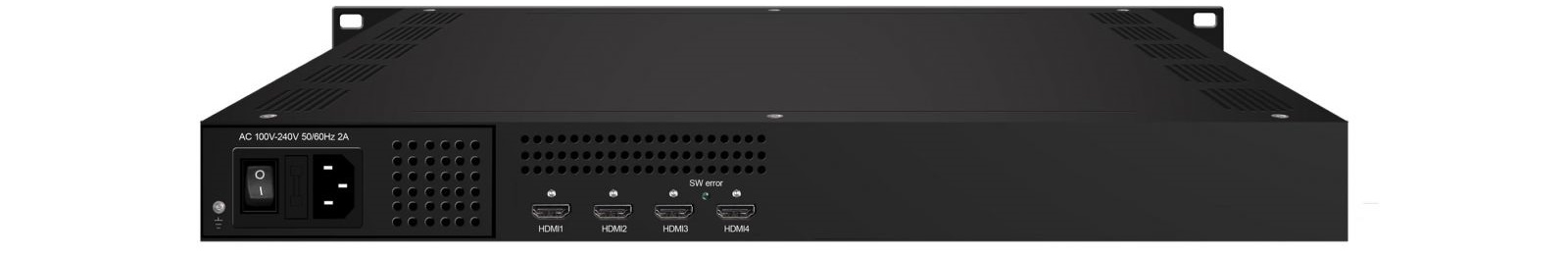

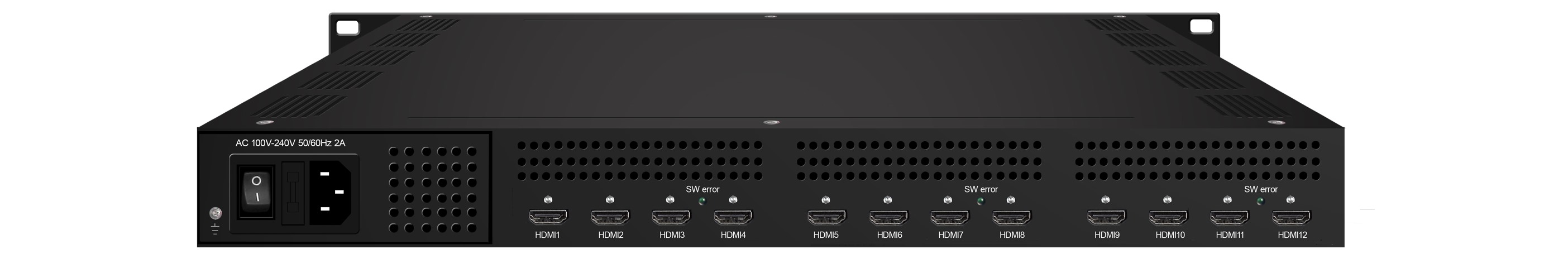

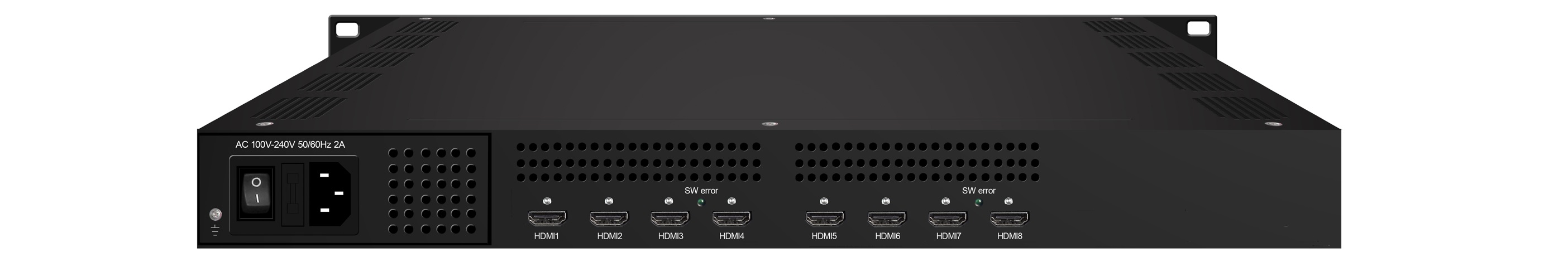

Back Panel
Specifications
| Inputs | 4/8/12 HDMI inputs (1.4), HDCP 1.4 support | |
| Video Encoding | Encoding Format | H.265/HEVC, H.264/MPEG-4 AVC |
| Resolution | 1920×1080@60P, 1920×1080@59.94P, 1920×1080@50P, 1920×1080@60i, 1920×1080@59.94i, 1920×1080@50i, 1280×720@60P, 1280×720@59.94P, 1280×720@50P |
|
| Chroma | 4:2:0 | |
| Recommended Bitrate (per channel) | 0.5 Mbps ~ 20 Mbps (H.265/HEVC) 4 Mbps ~ 20Mbps (H.264 / MPEG-4 AVC) |
|
| Rate Control | CBR/VBR | |
| GOP Structure | IBBP, IPPP | |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | |
| Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2 AC3 Passthrough |
| Sampling rate | 48KHz | |
| Bitrate | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2) | |
| Audio Gain | 0~255 | |
| Stream output | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (self-adaption). Supporting unicast and multicast. IP null packet filter |
|
| Control | Web based management and firmware upgrade | |
| Other | Dimension (W× L× H) | 482mm×328mm×44mm |
| Approx weight | 5kg | |
| Temperature | 0~45℃(operating), -20~80（storage） | |
| Power | AC 100V-220V±10%, 50/60Hz | |
Ordering Info
ADV-8106-4 – H.265/H.264 HD Encoder with 4 HDMI inputs
ADV-8106-8 – H.265/H.264 HD Encoder with 8 HDMI inputs
ADV-8106-12 – H.265/H.264 HD Encoder with 12 HDMI inputs
