- 1 channel 4K or 4 channels HD encoding
- Inputs: four 3G-SDI
- Encoding of up to 2160p
- IP Output: 1MPTS and 4 SPTS
- UDP, RTP/UDP, Multicast, Unicast, HLS, RTMP, IGMPv2, SRT streaming

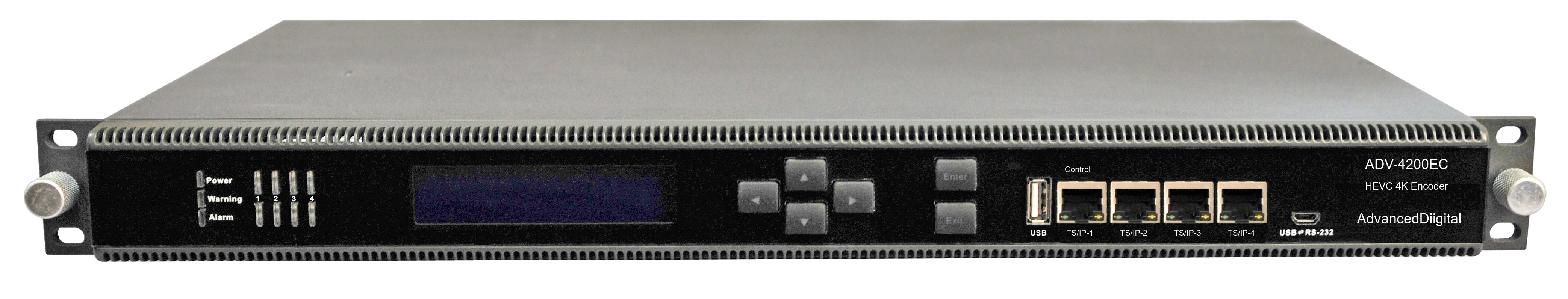

Description
The ADV-4200EC is a next generation 4K 2160p Video/Audio Encoder. Capable of encoding either one 4K or 4x HD/SD signals in H.264 or H.265. The built in multiplexer allows for the precise control of the resulting ASI or IP.output. Includes many other advanced features and functions.

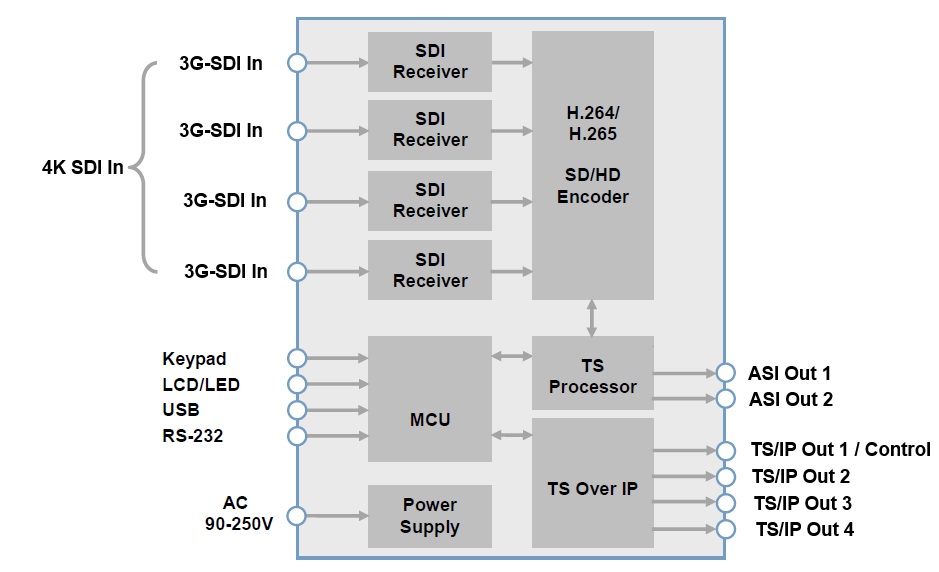

ADV-4200EC Functional Block Diagram
Key Features
- Supports 1x channel 4K or 4x channels HD encoding
- Ultra-low latency of up to 10ms
- Multiple video resolutions including 2160p, 2160i, 1080p, 1080i, 720p, 720i, 480p, 480i
- Supported inputs: 3G/HD/SD-SDI
- Internal Time Base Correction (TBC)
- MPEG-1 Layer II & AAC LC audio encoding, AC3 pass through
- Up to 4x stereo audio encoding
- 10/1000M TS/IP SPTS and MPTS
- UDP, RTP/UDP, Multicast/Unicast, HLS, RTMP, SRT streaming, IGMPv2,
- Built-in re-multiplexer
- Supports VBR and CBR encoding modes
- Remote Control and Supervision with SNMP, HTTP WEB
Back Panel
Specifications
| Video Compression | |
| Video Format | 2160p（3840×2160）
1080p（1920×1080） 1080i (1920/1440×1080) 720p (1280×720) 480i (720×480) 576i (720×576) |
| Video Format Rate | 60, 59.94, 50, 30, 29.97, 25,24, 23.97 |
| Compression Standard | H.265 (HEVC)；H.264 (AVC), High Profile Level 4.0 |
| Aspect Ratio | 4:3 / 16:9 selectable |
| Chrominance Sampling | 4:2:0 8bits 4:2:0 10bits 4:2:2 8bits 4:2:2 10bits |
| Video Encoding Bit Rate | 200Kb/s – 80Mb/s |
| Recommend Video Encoding Bit Rate | 3840×2160 60p/59.94p/50p 6-16Mb/s
1920x1080p / 59.94/50 fps: 2~8Mb/s 1920x1080i /25/29.97fps: 1~6Mb/s 1440x1080i /25/29.97fps: 1~6Mb/s 1280x720p /50/59.94fps:1~6Mb/s 720x480i /29.97fps: 500k/s~4Mb/s
|
| Audio Compression | |
| Standardd | MPEG-1 Layer II, AAC LC, AC3 pass through |
| Audio Input | Embedded SDI Audio |
| Audio Channels | Stereo, Mono |
| Audio Sampling Rate | 48KHz |
| Audio compression Bit Rate | 64 ~ 384Kb/s |
| Audio/Video Input Interface | |
| HD-SDI | 4×BNC Female, 75Ω |
| TS Processing | |
| TS Output | Remux and demux |
| PID | Filtering and remapping |
| TS Input | Remux and demux between IP inputs and the ASI |
| PSI/SI | PSI/SI table regeneration, NIT and SDT modifications |
| TS over IP | |
| Connector Type | 4×RJ-45, 10/100/1000 Base-T |
| bitrate | 800Mb/s |
| Protocol | UDP, RTP/UDP, Multicast, Unicast, HLS,RTMP IGMPv2, SRT |
| Source | Remux, Encoder |
| ASI Output | |
| Connector Type | 2×BNC Female, 75Ω |
| Output bit rate | ≤ 99Mb/s |
| Packet Length | 188 Bytes |
| Signal Level | 800mVpp±10% |
| Control & Monitoring | |
| Connector Type | 1×RJ-45, 10/1000 Base-T |
| Remote Control | SNMP, HTTP Web |
| Local Control | LCD display and 6-key keypad |
| Software Upgrades | web based |
| Physical | |
| Dimensions | 44mm×483mm×318mm |
| Net weight | 5Kg |
| Power supply | AC90~250V, 50Hz/60Hz |
| Power Consumption | Maximum 20W |
| Operating Temperature | 0 ~ 45℃ |
| Storage Temperature | -10 ~ 60℃ |
| Humidity | 10 ~ 90%, non-condensed |
Ordering Info
ADV-4200EC – 4K H.265/H.264 Encoder with four 3G-SDI inputs
