– Choice of 4 HD/SD-SDI or 4 HDMI or 4 Composite inputs
– H.264 (MPEG-4 AVC) HD/SD and MPEG-2 SD encoding
– SD and HD (up to 1080i60) support
– ASI and IP inputs; ASI and IP outputs
– Built-in multiplexer/remultiplexer
– Transcoding: MPEG-2 to H.264, H.264 to MPEG-2, Bitrate reduction
– Monitoring and Control: HTTP WEB and SNMP

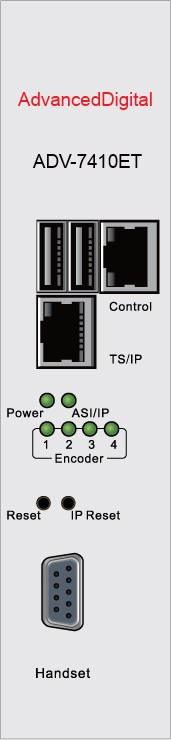

REAR PANEL

ADV-7410 rear

ADV-7410ET is a high density H.264 HD/SD & MPEG-2 SD real time encoder/transcoder.
This blade type design integrates 4 independent encoders/transcoders channels, 1 Multiplexer/Remultiplexer, 1 ASI_in, 1 ASI_out, and 1 Gigabit (GbE) TS/IP in/out port.
ADV-7410ET can output at its IP port 4 separate SPTS from 4 encoding or transcoding channels.Also it can output at its ASI output port and its IP port one multiplexed MPTS.This MPTS could be generated with the built-in Re-multiplexer from any combination of services among ASI_in, TS/IP_in and its encoding or transcoding channels. ASI_in, ASI_out ports allow multiple units ADV-7410ET to be connected by daysy chain for crerating MPTS with more than 4 channels.
There is no need for external multiplexer.

ADV-7410ET provides two TS/IP operation modes.
The first is “Full Duplex”, which allows one MPTS or SPTS to be accepted by ADV-7410ET via its IP port to make up a new MPTS with its 4 encoding or transcoding channels, then to output the new MPTS over IP & ASI_out.
The second mode is “Multiple output”, which outputs up to fivestreams over IP. In this mode ADV-7410ET outputs four SPTS from 4 encoding or transcoding channels and one MPTS (from internal Re-multiplexer) over the IP with different Unicast or Multicast IP addresses.

ADV-7410ET supports transcoding function (MPEG-2 to H.264 and vise versa). It accepts an MPTS (over ASI or IP inputs) and transcode up to 4 chosen channels. These 4 transcoded channels can be output at IP port as 4 separate SPTS with different Unicast or Multicast IP addresses.
Also, ADV-7410ET’s built-in multiplexer allows to create a new MPTS with transcoded channels and, if needed, with any number of remaining channels from incoming stream. Then this MPTS can be output via ASI_out and IP ports.
This allows to connect multiple ADV-7410ET by daisy chain to have final MPTS (ASI and IP) with all programs transcoded. There is no need for external multiplexer.

ADV-7410ET-S and ADV-7410ET-H

ADV-7410ET-S and ADV-7410ET-H Diagram

ADV-7410ET-C

ADV-7410ET-C Digram

Main features

• Compliant with H.264/AVC Baseline, Main & High Profile @ L4.0 or less & MPEG-2 MP@M
• 4 independent video inputs (SDI, HDMI, CVBS, note: see Ordering Information)
• Audio inputs: SDI/HDMI embedded, Analog for ADV-7410ET-C (note: see Ordering Information)
• Independent Encoding/Transcoding mode control
• Internal Multiplexer/Remultiplexer, new MPTS is made up from ASI_in, TS/IP_in & Local Encoders
• MPTS remultiplexed and 4 separate SPTS available over IP
• Video Input Resolution: 1080i, 720p, 576i, 480i (note: ADV-7410ET-C supports 576i/480i only)
• Minimum Video Bit Rate 500Kb/s (Standard: PAL or NTSC SD video, total bit rate ~ 700Kb/s)
• Independent Vertical & Horizontal pixel scale
• Transcoding from MPEG2 to H.264/AVC & vice versa
• VBR & CBR mode for encoding/transcoding
• Audio coding: MPEG1 Layer II, MPEG2/4 AAC-LC , HE-AAC
• SNMP & HTTP WEB for monitoring & control


ACCESSORIES

ADV-800MF Main Chassis

• Standard 4RU chassis with 8 slots for functional modules and 2 slots for Power Supplies
• Hot-backup dual power supply modules
• Intelligent cooling system with temperature sensor
• Wall mounted or Rack mounted
• Power Supply: AC 90V-250V, 150Watts, 50-60Hz
• Dimension: L=340mm, W=483mm, H=178mm (4RU)
• Operating temperature: 0 ~ 45℃(for all modules)
• Storage temperature: -10 ~ 60℃ (for all modules)

ADV-800MF

ADV-200MF Main Chassis

• Standard 1RU chassis with 2 slots for functional modules
• 1 power supply module
• Intelligent cooling system with temperature sensor
• Wall mounted or Rack mounted
• Power Supply: AC 90V-250V, 150Watts, 50-60Hz
• Dimension: L=340mm, W=483mm, H=44.5mm (1U)

ADV200MF

ADV-1000CU Programming Unit

• For setting parameters via front panel connector (Handset)
• 2×20 LCD display screen and 6-key keypad
• No external power nor battery needed
• Easy and quick on site system configuration without PC
• Dimension 170×70×22 mm

ADV-1000CU



ORDERING INFORMATION

ADV-7410ET-C   –   4-channel H.264/MPEG-2 SD Encoder/Transcoder with 4 Composite (CVBS) inputs

 ADV-7410ET-S   –  4-channel H.264/MPEG-2 HD/SD Encoder/Transcoder with 4 HD/SD-SDI inputs

 ADV-7410ET-H  –   4-channel H.264/MPEG-2 HD/SD Encoder/Transcoder with 4 HDMI inputs

ACCESSORIES

ADV-800MF   –   4RU Chassis with dual Power Supply, holds up to 8 modules ADV-7410ET

ADV-200MF   –   1RU Chassis with Power Supply, hold up to 2 modules ADV-7410ET

ADV-1000CU   –  Programming unit for settings parameters via front panel connector (Handset)
