- DVB-S/S2, DVB-T, DVB-C, ATSC, DTMB, ISDB-T, ASI and IP Receiver
- ASI and IP inputs, SRT reception (optional)
- MPEG-2, H.264/MPEG-4 AVC, H.265/HEVC SD/HD Decoder
- HD/SD-SDI, HDMI, Composite, ASI and IP Outputs
- 2 independent ASI outputs
- Built-in re-multiplexer
- TS over IP: 2 GBe ports (Full Duplex)
- IPTV Gateway: IP outputs – up to 64 TV channels; UDP/RTP, unicast/multicast
- BISS Descrambler
- 2 DVB-CI Slots, compatible with: Conax, Cryptoworks, Irdeto, NDS, Mediaguard, SECA, Viaccess and more
- VBI Teletext, EBU, DVB and CC support
Description
Applications
- Perfect as a DVB-S2 or DVB-S to IP Converter
- Convert other DVB standards such as ATSC, DVB-T, DVB-C, DTMB, ISDB-T to IP
- IP-to-ASI or ASI-to-IP Converter
- Broadcast DVB-S receiver and decoder
- Broadcast DVB-T receiver and decoder
- Broadcast DVB-C or ATSC receiver and decoder
- Broadcast SDI decoder

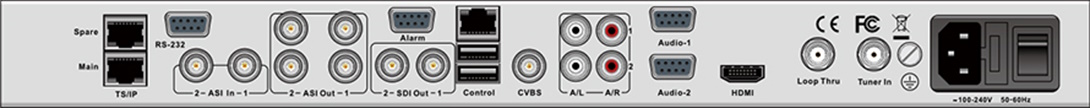

Back Panel

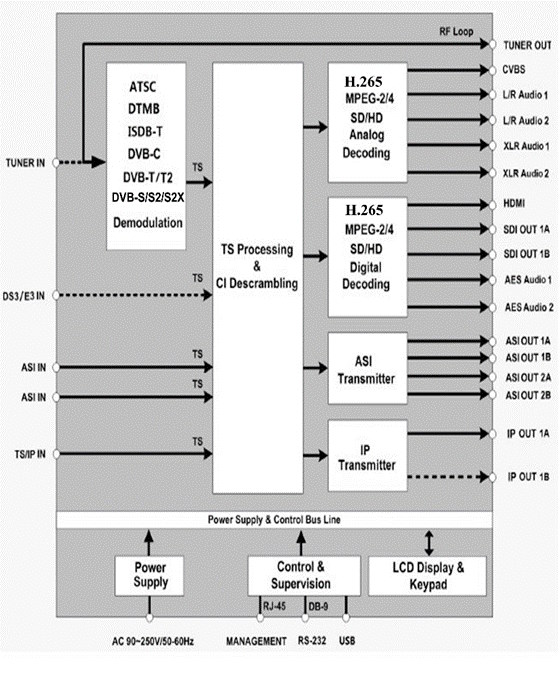

Block Diagram
The ADV-6010 provides an ideal solution for receiving, re-multiplexing, descrambling and decoding broadcast signals. It is equipped with a variety of inputs that ensure compatibility with all transmission media. The ADV-6010’s re-multiplexing capabilities enable creation of new transport streams by combining existing sources. Customized services may be output as multiple SPTS or MPTS over IP, as well as over ASI. Through the dual DVB common interfaces, ADV-6010 has the capability to decrypt multiple services present in transport streams. ADV-6010 is also a professional IRD that features a broadcast quality decoder for MPEG-2 , MPEG-4 AVC/H.264 and H.265/HEVC , in both Standard Definition and High Definition formats, and provides a variety of industry standard digital and analog outputs, including CVBS video, AES/EBU Audio, analog Audio, embedded audio, HDMI, SD-SDI and HD-SDI. The unit can perform HD down-conversion and aspect ratio adaptation of HD programs in order to generate professional quality baseband analog video and audio outputs for easy integration with existing cable network infrastructure. This all-in-one architecture makes the ADV-6010 an ideal product for any broadcast environment.
Key Features
- Many input options: DVB-T/T2, DVB-S/S2/S2X, DVB-C, ATSC, ISDB-T, DS3/E3, TS/IP and ASI
- Support for DVB-S2 Input Stream Identifier (ISI)
- 2 ASI inputs, IP input (UDP/RTP, unicast/multicast). Optional SRT reception support.
- SD/HD MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265 video decoding
- 2 Stereo pairs audio decoding: Analog, Embedded and AES/EBU outputs
- Audio formats: MPEG Layer 1, MPEG Layer 2, DRA, AAC-LC, HE AAC V1/V2, Dolby Digital
- Analog and Digital Outputs: CVBS, HDMI, SD/HD-SDI, AES/EBU Audio, ASI, TS/IP
- HD/SD decoding support: up to 1080i for SDI output, up to 1080p for HDMI output
- Built-in TS re-multiplexer for 2 independent outputs, can receive from ASI, Tuner and TS/IP Inputs
- 2×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
- Redundant backup among Tuner, ASI and TS/IP, with configurable priority
- Support for VBI TELETEXT, WSS, EBU/DVB Subtitle, Closed Caption
- UDP/RTP, Unicast/Multicast, outputs up to 64 SPTS/MPTS over IP
- Remote and Local Control and Supervision by SNMP, HTTP WEB and LCD menu
- On Site software update through IP
Ordering Info
ADV-6010S – IRD with DVB-S/S2 tuner
ADV-6010A – IRD with ATSC (8-VSB) tuner
ADV-6010T – IRD with DVB-T/C tuner
ADV-6010M – IRD with DTMB tuner
ADV-6010I – IRD with ISDB-T tuner
ADV-6010D – IPTV and ASI decoder
Additional Option:
OPT-SRT – SRT IP reception
