Description

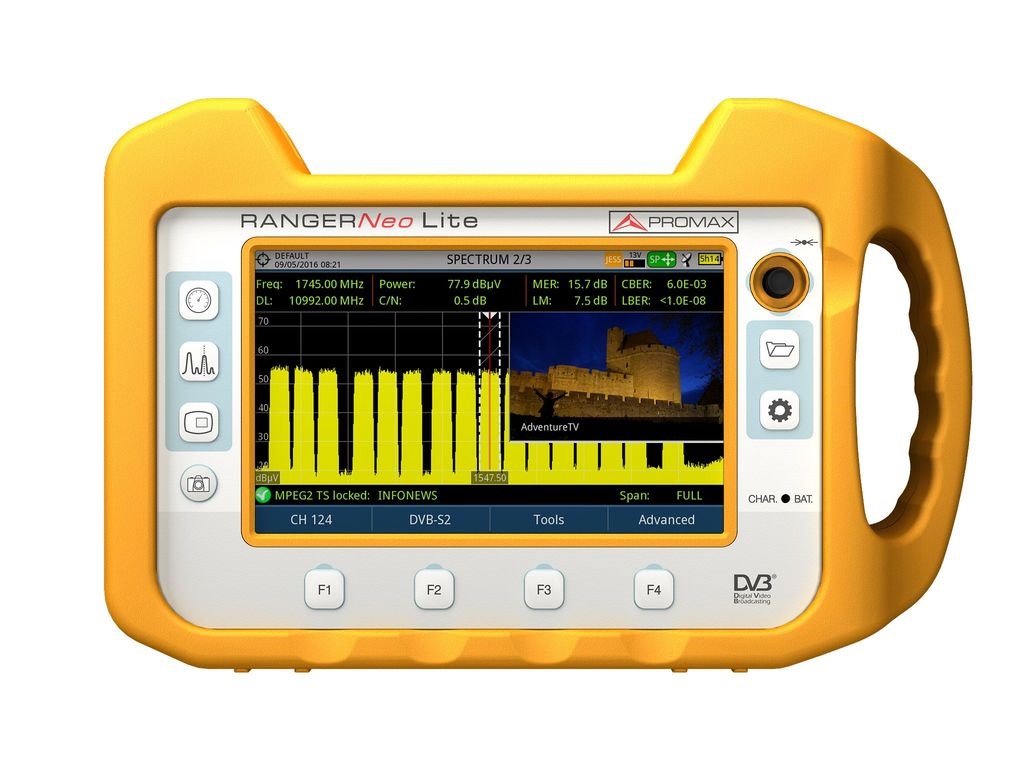

The RANGERNeo Lite is a universal field strength meter that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as DVB-T2/C2/S2, DVB-T/C/S with MPEG-2 as well as MPEG-4 video are managed effortlessly within the product.
The RANGERNeo Lite features also HEVC H.265 decoding and exceptional spectrum analyzer capabilities and many other functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc…, all in a very compact and light weight product (1600 gr) ideal for field work.
The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a 7” split screen format.
Supported DIGITAL STANDARDS
- DVB-T, DVB-T2, DVB-T2 lite
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS, ACM/VCM/CCM
- ISDB-T/Tb
VIDEO CODECS
- MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS
- MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus
INPUTS/OUTPUTS
- Universal RF connector 75 Ω
- HDMI output
- IP input for remote control
- Analogue Video/Audio input
- 2xUSB for data transferring
KEY FEATURES
- Constellation diagram
- LTE ingress test
- Dynamic echoes analysis
- StealthID (instant signal identification)
- DVB-S2 multistream
- PLS (physical layer scrambling)
- Ultra fast spectrum analyzer (70 ms sweep time) with MAX/MIN hold
- FM RDS radio measurements and decoding
- 4K Frame grabber
- Screenshots and Datalogger for measurement reports
- Wideband LNB
- WiFi 2.4 GHz
- LTE 1.8 GHz
- OTT
- Service Recording
- DVB-S2 multistream
- Field strength measurement
- Task planner
- H.265 decoding
- Beacon-Flyaways for SNG and VSAT
PC CONNECTION
- NetUpdate 4 free software
- Free and automatic firmware updates
- Channel tables customization
- Measurement reports and screenshots
Specifications
Click on “RangerNeoLite Datasheet” for technical specifications.
Ordering Info
RangerNeo Lite – TV and Satellite Analyzer
