Description

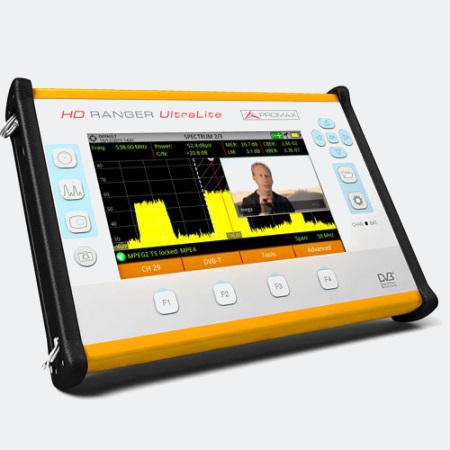

The HD RANGER UltraLite is a universal field strength meter and analyzer that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as DVB-T/T2, DVB-C/C2, DVB-S/S2 with MPEG-2 as well as MPEG-4 video are managed effortlessly within the product.
The HD RANGER UltraLite is perfect for satellite installers: Built-in DVB-S and DVB-S2 satellite finder, digital decoder and signal analysis.
The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a split screen format.
- Less weight and volume: 1.4 kg.
- Download measurement reports to your PC and install new functions in your analyzer at no cost.
- It is handy and lightweight. Small and portable. A more transportable field strength meter.
Supported DIGITAL STANDARDS
- DVB-T, DVB-T2, DVB-T2 Lite
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS
VIDEO CODECS
- MPEG-2, MPEG-4 H.264
AUDIO CODECS
- MPEG-1, MPEG-2, HE-AAC, Dolby Digital Plus
INPUTS/OUTPUTS
- Universal RF connector 75 Ω
- Analogue Video/Audio input
- USB for data transferring
KEY FEATURES
- Constellation diagram
- StealthID (instant signal identification)
- LTE 1.8 GHz
- Dynamic echoes analysis
- DVB-S2 multistream
- PLS (physical layer scrambling)
- Ultra fast spectrum analyzer (70 ms sweep time) with MAX/MIN hold
- FM radio measurements and decoding
- Screenshots and Datalogger for measurement reports
- Service recording
- LTE
- Field strength
- Task planner
- Weight: 1.4 kg
PC CONNECTION
- NetUpdate 4 free software
- Free and automatic firmware updates
- Channel tables customization
- Measurement reports and screenshots
Specifications
Click on “HD Ranger UltraLite Datasheet” for technical specifications.
Ordering Info
HD Ranger UltraLite – TV and Satellite Analyzer
