- MPEG-2, H.264/MPEG-4 AVC HD/SD Decoder
- 2 ASI and 2 IP inputs
- 2 HD/SD-SDI outputs
- 2 embedded audio stereo pair per video
- IP and ASI outputs
Description
The ADV-8722 is a low cost solution for converting IP or ASI input streams into SDI output. The input can be MPEG-2, or H.264/MPEG-4. Multiple audio codecs are supported, including MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1).
The ADV-8722 can receive up to two IP streams in MPTS/SPTS, unicast/multicast formats and two DVB-ASI streams.
Key Features
- MPEG-2/H.264 Decoding
- 2x IP inputs (MPTS/SPTS, unicast/multicast)
- 2x bi-directional ASI ports
- 2x HD/SD-SDI decoding, with dual stereo audio embedded in each SDI
- MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 passthrough for audio
- CC/Subtitle
- Web GUI remote control
ORDERING INFO

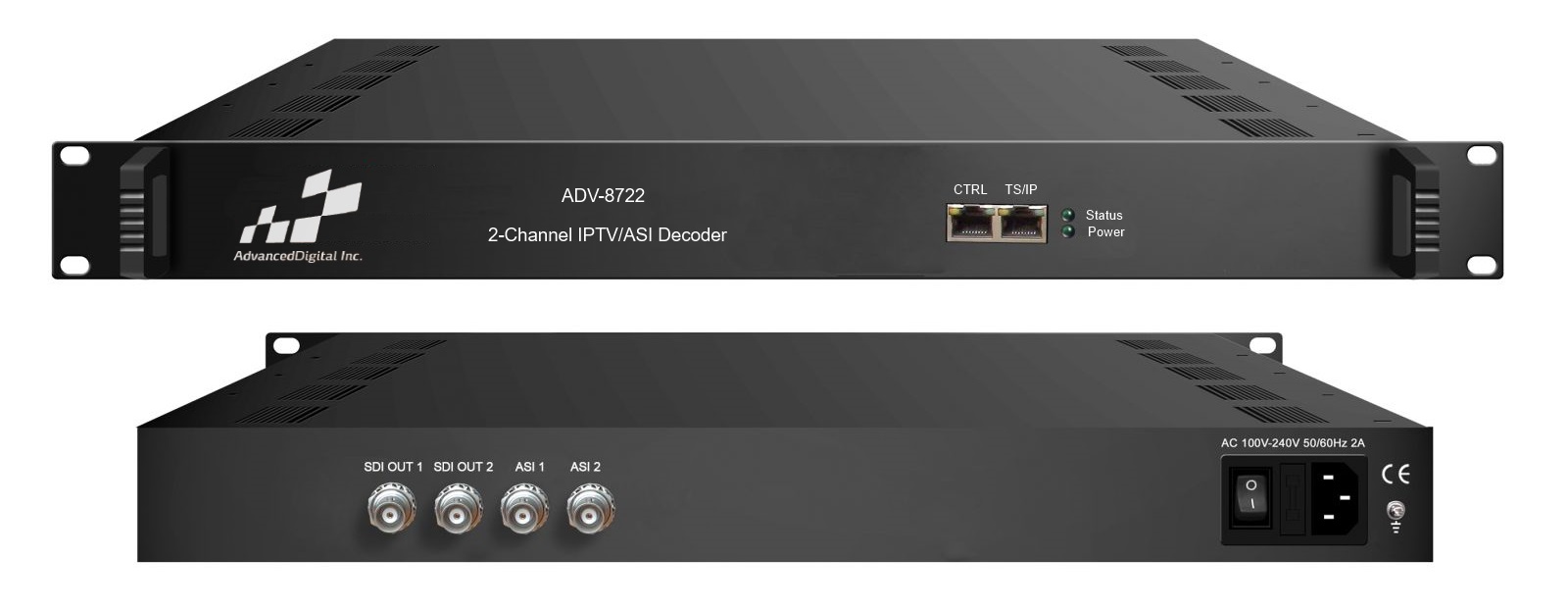

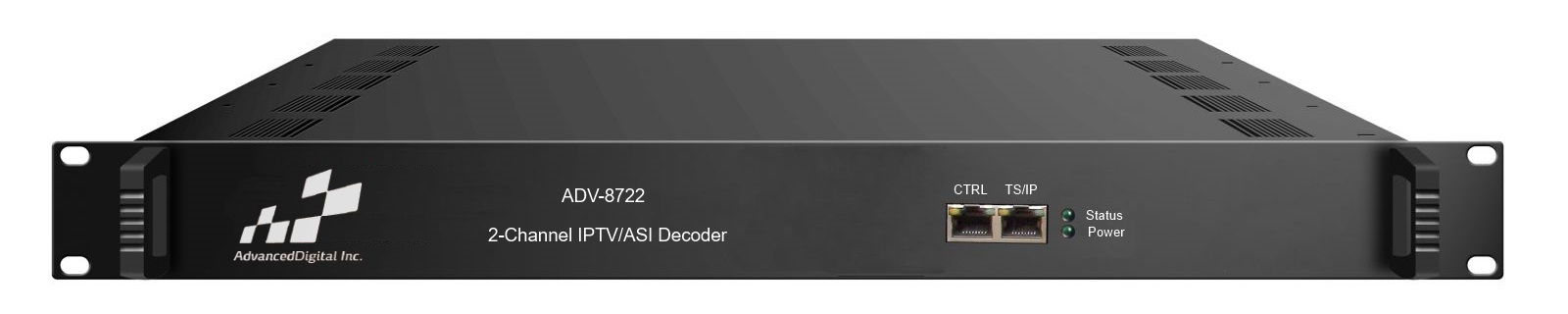

ADV-8722 – 2-Channel IPTV/ASI to SDI HD/SD Decoder
