Outputs up to 16x RF DVB-C QAM channels
- 2x GbE IP input ports: accept up to 512 MPTS or SPTS
- 2x ASI input ports

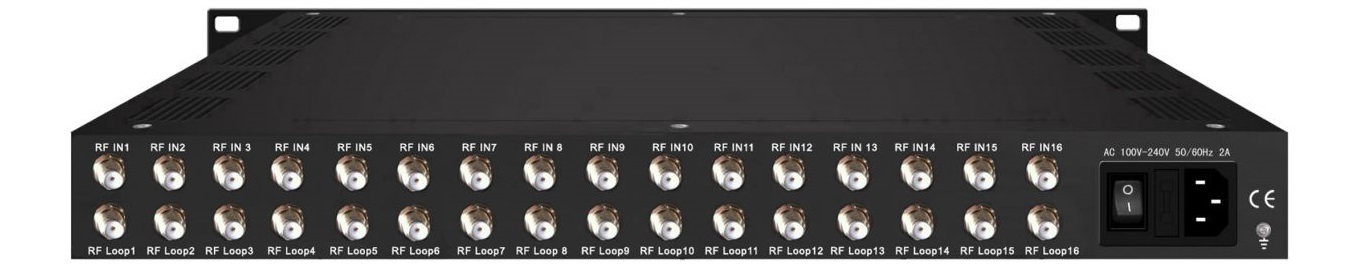

- 16x RF tuners (choice of DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC, ISDB-T) inputs
- 16x Re-multiplexer
- 16x channel scrambling
- Web based control and configuration
Description

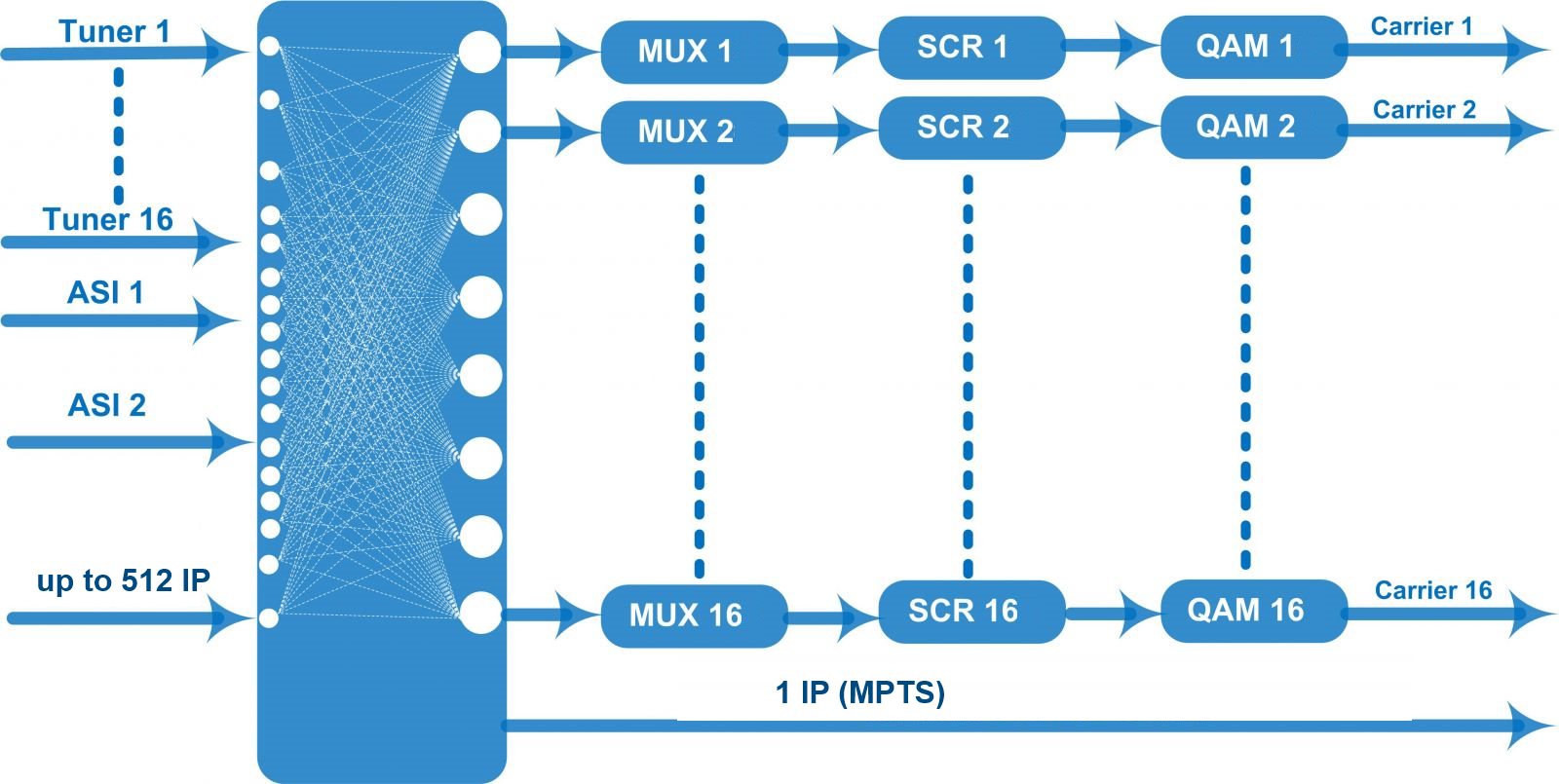

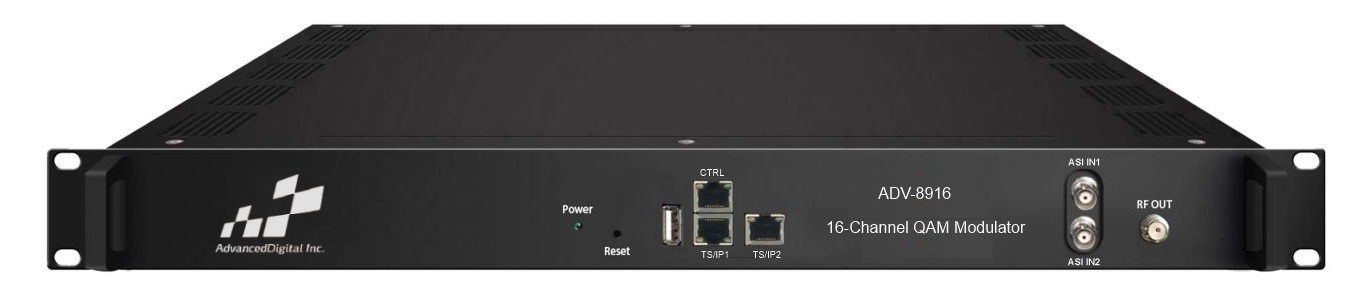

The ADV-8916 is a broadcast QAM modulator designed for full compliance with QAM (DVB-C) modulation standards. It has 16 RF tuners (choice of DVB-S/S2/S2X, DVB-C, DVB-T/T2, ATSC, ISDB-T) inputs, 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels. It supports up to 512 IP inputs through its onboard GE port, as well as 2 ASI input ports.
MAIN FEATURES
- 16x RF tuners (choice of DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC, ISDB-T)
- 2x ASI inputs
- Up to 512 IP inputs, UDP/RTP
- 16x DVB-C QAM RF output channels
- 1 IP(MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
- Excellent RF output performance, MER≥40db
- 16 channel multiplex and 16 channel scrambling + 16 channel QAM modulation
- Accurate PCR adjustment
- PSI/SI re-generation and insertion
Specifications
Click on “ADV-8916 Datasheet” for technical specifications.
Available Options and Ordering Info
ADV-8916S – 16-channel QAM modulator with 16 DVB-S/S2/S2X tuners
ADV-8916C – 16-channel QAM modulator with 16 DVB-C tuners
ADV-8916T – 16-channel QAM modulator with 16 DVB-T/T2 tuners
ADV-8916A – 16-channel QAM modulator with 16 ATSC tuners
ADV-8916I – 16-channel QAM modulator with 16 ISDB-T tuners
