• 2 stereo audio channels encoding
  • MPEG-1 Layer 2, AAC
  • Unbalanced Analog Audio and AES/EBU inputs
  • IP and ASI outputs
  • Description
  • Specifications

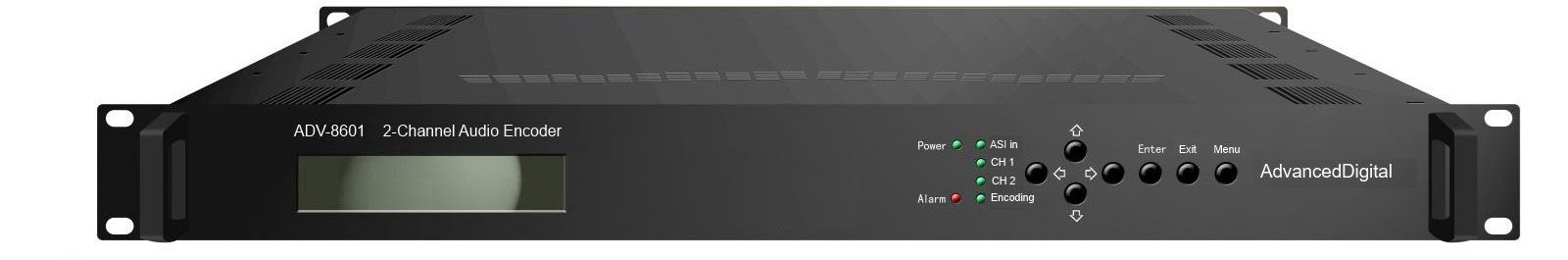

ADV-8601 is a professional 2-channel audio encoder.

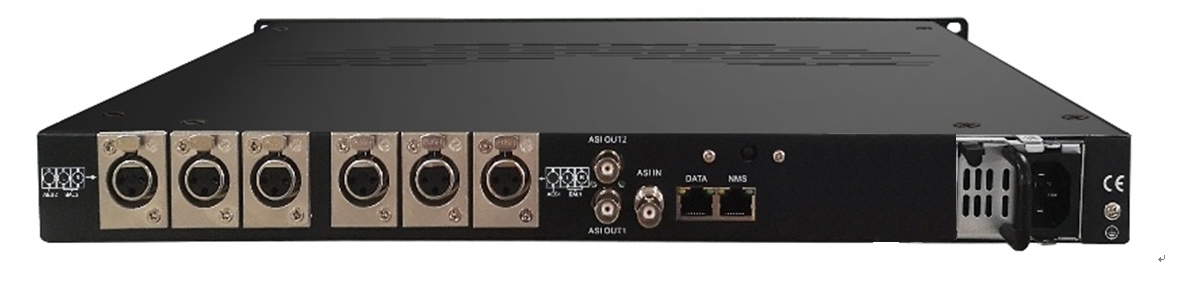

It supports 2 audio stereo channels. For each audio stereo channel it supports unbalanced analog input interface (XLR) and the digital audio input interface AES/EBU (XLR).

ADV-8601 outputs encoded audios through 2 ASI ports and IP port for further transmission.

Each ASI port can output SPTS or MPTS.

IP port can output 2 SPTS and one MPTS.

ADV-8601 also has ASI input for remultiplexing.

ADV-8601 high compatibility and excellent encoding quality makes this encoder widely used in digital broadcasting system.


Key Features

  • 2 independent audio encoding channels
  • MPEG1 Layer 2 and AAC Audio encoding
  • Supports unbalanced analog audio inputs
  • Supports AES/EBU digital audio inputs
  • ASI output (2 BNC interface)
  • Built-in multiplexer
  • ASI input for multiplexing
  • IP output (unicast/multicast, UDP, RTP)
  • LCD / keyboard and web-based NMS operation





Click on “ADV-8601 Datasheet” for technical specifications.
