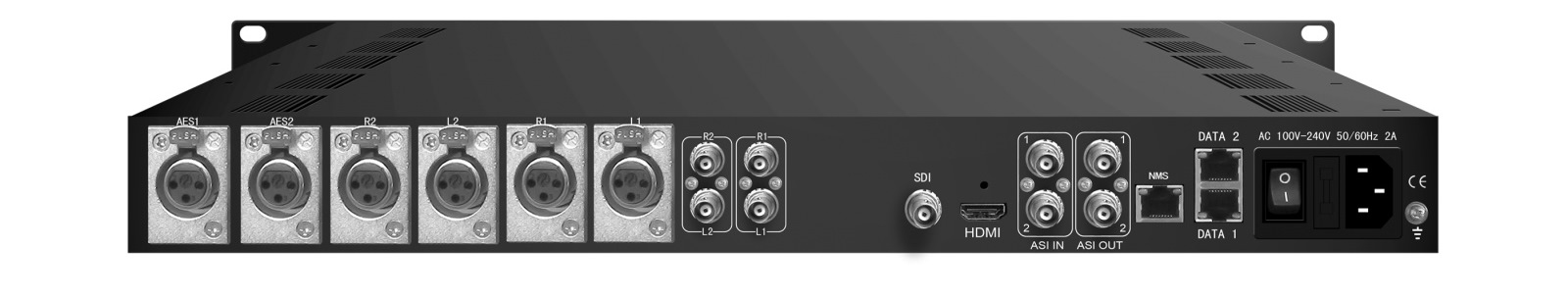

Inputs: HD-SDI, HDMI
Outputs: ASI, IP (unicast/multicast)
Audio: 2 stereo audio encoding

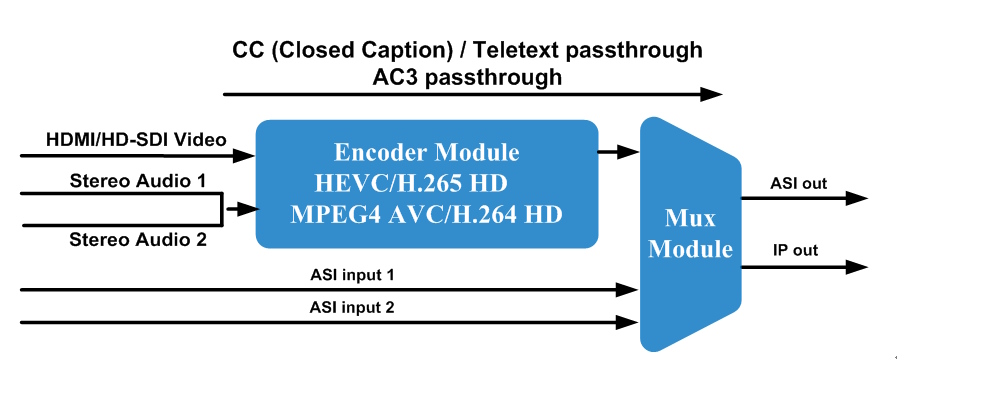

Description
The ADV-8110 H.265/HEVC and H.264 HD Encoder is high quality professional broadcasting audio & video encoder with powerful functionality. It is equipped with multiple video input interfaces (SDI and HDMI) and audio input interfaces (SDI/HDMI embedded, AES, RCA and XLR) to be compatible with different signal sources.
Multiple audio and video encoding formats are available to meet customers’ various requirements.
ADV-8110 supports 2 stereo (4 mono) audio encoding.
It has ASI and IP outputs.
It supports OSD insertion: QR code, LOGO, Caption.
Key Features
- 265/HEVC and MPEG-4 AVC/H.264 HD video encoding
- 1080p, 1080i, 720p video resolutions.
- MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC audio encoding
- DD AC3 audio pass-through
- 2 stereo audio encoding, Analog or SDI/HDMI embedded
- OSD insertion: QR code, LOGO, Caption
- CC (closed captioning), Teletext
- 2 ASI inputs for remux
- ASI output
- IP over UDP/RTP/RTSP, unicast/multicast) output

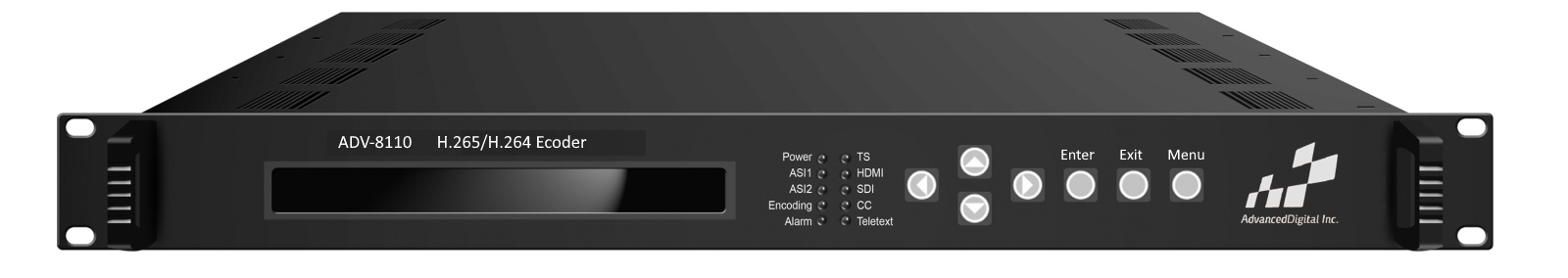

- Web and front panel LCD control
Ordering Info
ADV-8110 – H.265/H.264 HD Encoder
