Description

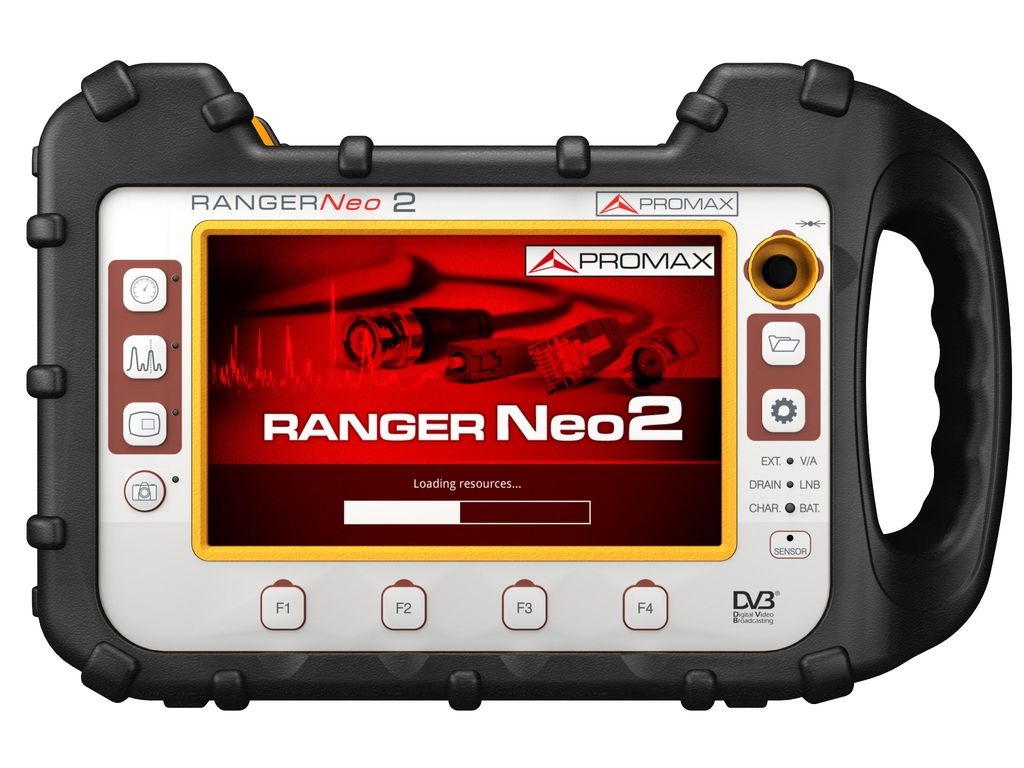

The RANGER Neo 2 is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
It features a new 7” touch screen with excellent brightness and superior image sharpness that can also be used wearing gloves.
The hybrid operation of the RANGER Neo 2 allows the equipment to be fully operated using both the touch panel and the conventional keyboard.
The RANGER Neo 2 features HEVC H.265 decoding and exceptional spectrum analyzer capabilities and many other functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc…, all in a very compact and light weight product ideal for field work.
OPERATION MODES
- Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS
- DVB-T, DVB-T2, DVB-T2 lite
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- ISDB-T/Tb
- DSS, ACM/VCM/CCM
- MPEG-TS
CONNECTIVITY
- Universal RF connector 75 Ω
- TS-ASI input and output
- IPTV input UDP/RTP RJ45 Ethernet 1 Gbps
- HDMI output
- Analog audio/video input
- Common Interface slot for CAM module
- 2 USB interfaces
- IP input for remote control
FUNCTIONS
- Merogram and Spectrogram
- Constellation diagram
- LTE filters
- Dynamic echoes analysis
- StealthID (instant signal identification)
- Audio/Video streaming
- SCAN + TILT
- DVB-S2 multistream
- PLS (physical layer scrambling)
- Ultra fast spectrum analyzer (90 ms sweep time) with MAX/MIN hold
- FM RDS radio measurements and decoding
- 4K Frame grabber
- Screenshots and Datalogger for measurement reports
- Wideband LNB
- WiFi 2.4 GHz
- OTT
- Service Recording
- DVB-S2 multistream
- Signal monitoring
- Field strength
- Task planner
- H.265 detection
- TS Recording
- TS Analysis
- webControl
- IPTV multicast
- Shoulder Attenuation
- Beacon-Flyaways SNG and VSAT
- GPS Coverage Analysis (optional)
RESOLUTION BANDWIDTH
- 2 kHz, 10 kHz, 20 kHz, 30 kHz, 40 kHz, 40 kHz, 100 kHz, 200 kHz, 1 MHz
ASI-TS INPUT AND OUTPUT
- Real-time transport stream analysis function
IPTV INPUT
- Ethernet 1 Gbps
- RJ45 connector
- UDP or RTP/UDP protocols
- IPTV Multicast
PC CONNECTION (via USB interface)
- NetUpdate 4 free software
- Free and automatic firmware updates
- Remote control (web control)
- Channel tables customization
- Measurement reports and screenshots
- Video/Audio streaming
AVAILABLE OPTIONS
- GPS Coverage Analysis
- Advanced FM radio analyzer
- DAB, DAB+
- Advanced DAB/DAB+ analyzer
- OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
Specifications
Click on “RangerNeo 2 Datasheet” for technical specifications.
Ordering Info
RangerNeo 2 – Professional TV and Satellite Analyzer
Available Options:
OP-002-DAB+ – DAB/DAB+ Measurement
OP-002-DAB2 – DAB/DAB+ Advanced Measurement
OP-002-GPS – GPS for drive test measurements
OP-002-FM – FM advanced measurements
OP-002-WL – 5 GHz Wi-Fi and 2.6 GHz LTE
OP-002-PS – Optical measurement for FttH, Cable TV and satellite
OP-002-AF – High accuracy frequency measurement
OP-002-19 – Rack Mount Option
