• HD/SD-SDI/HDMI/CVBS/YPbPr inputs
  • RF (950-2150MHz) or IF (50-200MHz) output
  • Encoding: H.264 (up to 1080p),  MPEG-2 (up to 1080i)
  • BISS Scrambling
  • RF CID setting
  • Description
  • Specifications
  • Ordering Info

Description

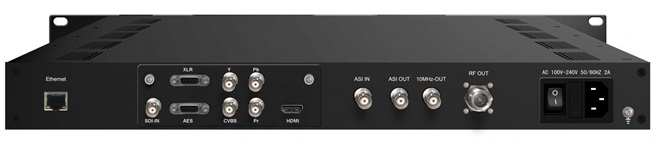

The ADV-8511 is a high quality professional, cost-effective solution for digital satellite uplinks and terrestrial microwave links.
The unit consists of a high performance DVB-S/DSNG/S2/S2X Multistandard modulator with H.264  (MPEG-4 AVC) SD/HD Encoder with choice of HD/SD-SDI or HDMI/CVBS/YPbPr or HD/SD-SDI/HDMI/CVBS/YPbPr inputs.

ADV-8511 outputs ASI and DVB-S/S2/S2X RF (or IF) simultaneously.
Features also include BISS scrambler, 10MHz reference clock and the power supply for the BUC (Block Up Converter). Supports a Web-based management interface to effectively manage the device.

ADV-8510 - DVB-S/S2 Encoder/Modulator

ADV-8511S – DVB-S/S2/S2X Encoder/Modulator with HD/SD-SDI input

ADV-8510 - DVB-S/S2 Encoder/Modulator with HDMI/CVBS/YPbPr inputs

ADV-8511H – DVB-S/S2/S2X Encoder/Modulator with HDMI/CVBS/YPbPr inputs

     ADV-8511SH – DVB-S/S2/S2X Encoder/Modulator with HD/SD-SDI/HDMI/CVBS/YPbPr inputs



Applications

  • Digital satellite Uplinks for Distribution, Contribution, DSNG /ENG Mobile news gathering
  • Digital Microwave Links (Mobile and STL)

 Key Features

  • MPEG2 SD/HD and H.264 (MPEG-4 AVC) SD/HD Encoding
  • MPEG-2: up to 1080i;   H.264: up to 1080p
  • Choice of models: HD/SD-SDI or HDMI/CVBS/YPbPr or  HD/SD-SDI/HDMI/CVBS/YPbPr inputs
  • Audio inputs: 2xXLR, 4xAES, HDMI embedded, SDI embedded (4 stereo pairs)
  • Audio encoding: MPEG-1 Layer II, HE-AAC, LC-AAC, Dolby Digital AC-3 (2.0, 5.1)
  • 1*ASI input
  • Supports DVB-S/S2/S2X RF (IF Optional) output and ASI output
  • LCN support (Logical Channel Number)
  • Output Frequency: 950-2150MHz; IF: 50-200MHz
  • QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations
  • RF CID setting
  • Low latency
  • Supports BISS scrambling
  • Built-in 24V BUC power supply
  • Supports 10MHz reference clock output
  • Supports Web NMS and front panel LCD & Keyboard control

Specifications

Click on “ADV-8511 Datasheet” for technical specifications

Ordering Info


ADV-8511S   –   DVB-S/S2/S2X Encoder/Modulator with HD/SD-SDI input

ADV-8511H   –   DVB-S/S2/S2X Encoder/Modulator with HDMI/YPbPr/CVBS Inputs

ADV-8511SH   –   DVB-S/S2/S2X Encoder/Modulator with HD/SD-SDI/HDMI/YPbPr/CVBS   Inputs
