• IP and ASI inputs
  • L-band RF (950-2150MHz) output
  • Optional IF (50-960MHz) output
  • QPSK, 8PSK, 16APSK, 32APSK Constellations
  • RF CID setting
  • Built-in 24V power supply for BUC
  • BISS scrambling
  • Description
  • Specifications
  • Ordering Info

Description

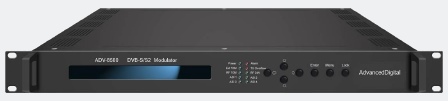

The ADV-8500 is a high quality professional, cost-effective DVB-S/S2 modulator designed for broadcast contribution, DSNG and distribution applications over satellite and microwave links.

ADV-8500 is equipped with IP input and 4 ASI inputs (3 for hot backup).
It outputs L-band RF in the range of 950 – 2150MHz (optionally IF output: 50-960 MHz).

ADV-8500’s features also include BISS scrambler, 10MHz input/output reference clock, built-in power supply for the BUC (Block Up Converter) and more.

ADV-8500 adopts user-friendly web-based operation interface to effectively manage the device.
With its high performance ADV-8500 DVB-S/S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

ADV-8500 rear

Applications

  • Digital satellite Uplinks for Distribution, Contribution, DSNG /ENG Mobile news gathering
  • Digital Microwave Links (Mobile and STL)

Features

  • Fully complies with DVB-S2 (EN302307) and DVB-S (EN300421) standard
  • 4 ASI inputs supporting hot backup (3 for backup)
  • IP (100M) input
  • QPSK, 8PSK, 16APSK, 32APSK Constellations
  • RF CID setting
  • Constant temperature 10MHZ internal crystal oscillator with 0.1ppm stability
  • External 10 MHz reference input
  • 10MHz reference clock output
  • Built-in 24V power supply for BUC
  • BISS scrambling
  • Supports local and remote control via front panel, SNMP or Web
  • RF Output frequency range: 950~2150MHz with 10KHz step
  • Optionally: IF output frequency range: 50~960MHz with 1Khz step
  • Supports SFN TS (with MIP or IIP) transmission

Specifications

Click on “ADV-8500 Datasheet” for technical specifications

Ordering Info

ADV-8500    –   DVB-S/S2 Modulator with RF (L-band) output

ADV-8500-F    –   DVB-S/S2 Modulator with IF output
