• Up to 64 IP inputs
  • HEVC/H.265, H.264/AVC, MPEG-2 TS Decoding
  • Output up to 32 non-adjacent or adjacent RF carriers
  • Output up to 32 standard PAL / NTSC / SECAM TV programs
  • Descriptions
  • Specifications
  • Ordering Info

Descriptions

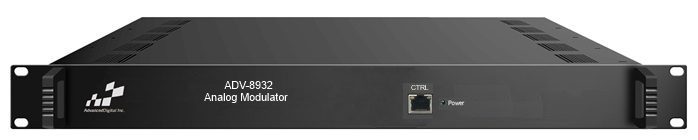

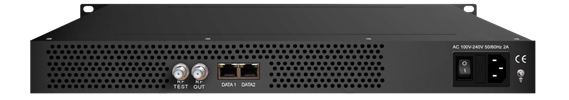

The ADV-8932 is a broadcast digital decoder and an analog modulator designed for full compliance with PAL/NTSC/SECAM modulation standards. It has up to 64 IP inputs and can process up to 32 IP multiplexed groups of MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs. Decode HEVC/H.265, H.264/AVC, MPEG-2 TS and output legacy analog signals.





Main Features:

  • 2 GE ports (max 64 IP inputs over MPTS/SPTS), Max 840Mbps for each GE input
  • HEVC/H.265, H.264/AVC, MPEG-2 TS Decoding
  • BISS descrambling
  • Processing of up to 32 IP multiplexed groups of MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs
  • 32 non-adjacent or adjacent carriers output within 400MHz
  • OSD (Logo and Caption) insertion for each channel
  • CC/Subtitle/Teletext support
  • Programs info modification
  • Web network management

Specifications

Click on “ADV-8932 Datasheet” for technical specifications

Ordering Info

ADV-8932   –   32-Channel Analog Modulator
