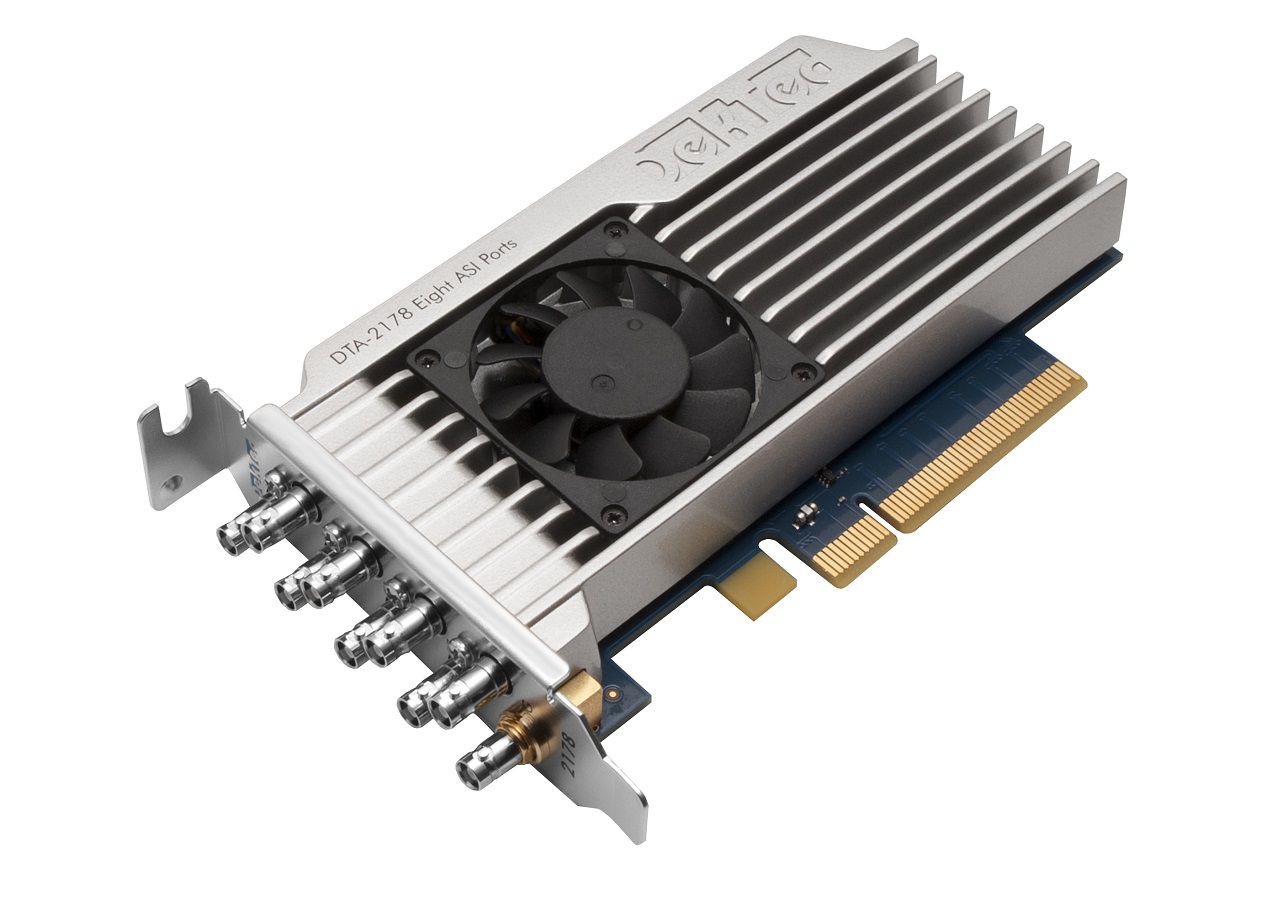

A low cost 8-channel ASI input/output low profile PCI card.
Applications
- Record and store transport streams from DVB-ASI
- Analyze and monitor TS signals incoming from the DVB-ASI channels
- Playout TS files for DVB-ASI output
- Multiplex and combine several DVB-ASI streams together
Features
- Eight independent ASI ports, each configurable as input or output
- TR 101 290 support
- Free Windows and Linux drivers and SDK (DTAPI)
Specifications
Key Characteristics
| Parameter | Value |
|---|---|
| Connectors | 9x 75-Ω micro BNC |
| DVB-ASI | EN50083-9 |
| Rx or Tx bitrate | 0 .. 214Mbit/s |
| Resolution | less than 1bit/s |
Ports
| Port | Type |
|---|---|
| Port 1 to 8 | DVB-ASI |
| Port 9 | Not used |
PC Requirements
| OS | PCI-Express slot |
|---|---|
| Windows 7, 8, 10 Windows Server 12, 16, 19 Linux ≥2.6.32, 3.x, 4.x, 5.x |
PCIe gen2 x8 Standard profile |
Ordering Information
| Type | Description |
|---|---|
| DTA-2178-ASI-SLP | Octal ASI ports for low-profile PCIe with StreamXpert Lite and StreamXpress® |
| DTA-2178-ASI-SXP | Octal ASI ports for low-profile PCIe with StreamXpert® and StreamXpress® |
