- 2 stereo audio channels decoding
- MPEG1 Layer2, MPEG-2 AAC, AC3, E-AC3, DRA formats
- Unbalanced Analog Audio and AES/EBU outputs
- RF, IP and ASI inputs
Description

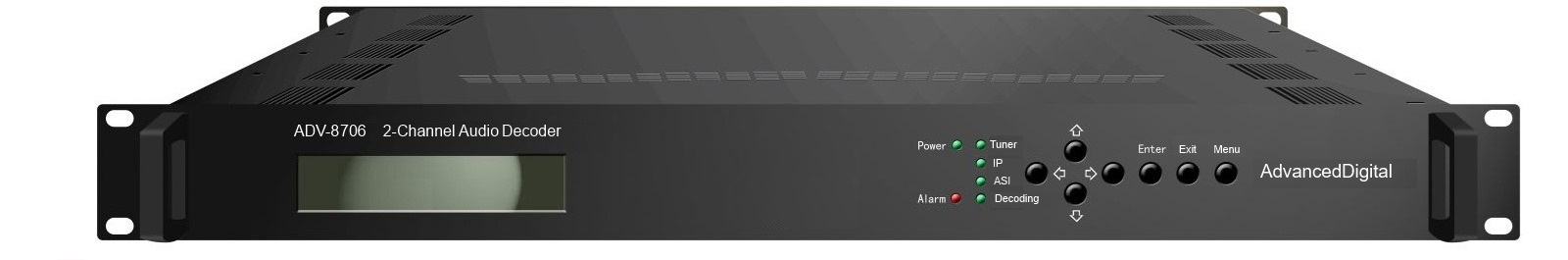

ADV-8706 is a professional 2-Channel audio decoder.
It is equipment with 1 tuner, with choice of DVB-C/DVB-T/DVB-T2/ISDB-T or DVB-S/S2 to receive signal from satellite, cable or terrestrial devices.
It also supports digital TS input via both 2 IP and 2 ASI inputs.
ADV-8706 features 2 broadcast quality audio decoders for MPEG1 Layer2, MPEG-2 AAC, AC3, E-AC3, DRA formats.

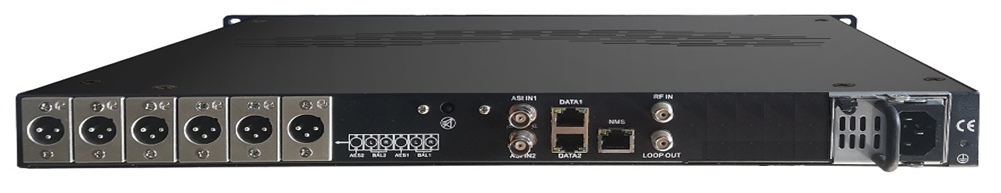

It provides 2 analog stereo audio outputs and 2 AES/EBU outputs.
Key Features
- Demodulation + decoder modules in one box
- Choice of one DVB-C/DVB-T/DVB-T2/ISDB-T or DVB-S/S2 tuner
- 2 ASI & 2 IP (UDP/RTP, unicast/multicast) inputs
- MPEG1 Layer2, MPEG-2 AAC, AC3, E-AC3, DRA
- 2 analog stereo audio outputs and 2 AES/EBU outputs
- LCD display, front panel and remote control, web NMS management
Specifications
Click on “ADV-8706 Datasheet” for technical specifications.
