Real-time processing of 3G-SDI/4K signals
PCIe gen3 x 16 for ample bandwidth
Optimized for DekTec Matrix API

  • Description
  • Specifications
  • Ordering Info



  • Twelve flexible ports fully configurable from software:
    – Input or output
    – Up to eight ports 3G-SDI
  • Combine SDI and ASI port in any mix
  • Graphics-card class PCI Express gen3 x 16 interface
  • DekTec Matrix API 2.0 framework takes care of all the plumbing for creating robust real-time SDI processing applications.
  • Free drivers and SDK (DTAPI with DekTec Matrix API included) for 32 and 64-bit Windows and Linux


  • Generation, reception and processing of uncompressed UHD signals
  • General purpose processing of a mix of 3G-SDI, HD-SDI and/or ASI signals
  • Live production mixer and effect generators
  • SDI monitoring, recording and/or play-out

 DekTec Matrix API 2.0

The Matrix-API framework decodes incoming SDI data into pixels (in a programmable format), audio samples and ANC data structures. When a new frame has been received, the framework calls a user-supplied “frame-processor callback” for processing of the data. The user callback can create output video, audio and ANC data. which is encoded by the framework into SDI frames.

Synchronization of multiple input streams is straightforward: The video/audio/anc data of all SDI frames supplied to the callback function have the same arrival time by definition. Past frames can be accessed by an integer frame index. The framework ensures that if frames from different input ports have the same frame index, they have entered the system at the same time instance.


270 Mbps
8, 10 or 16 bit format
1,5 Gbps
8, 10 or 16 bit format
3 Gbps
8, 10 or 16 bit format
4K multi-link SMPTE 425-5
4 x 3 Gbps
ASI DVB-ASI (coax) EN50083-9
0 to 214 Mbps
Resolution <1 bps
Input return loss >12dB @ 0 to 1.5GHz

Inputs and Outputs

12x ASI/SDI 75-Ω 1.0/2.3 DIN
Genlock 75-Ω 1.0/2.3 DIN
PCI Express PCIe3 x16
Processor      Core i5 minimum
Core i7 recommended
or equivalent AMD CPUs

Supported Video Format

SMPTE 259M 525i, 625i
SMPTE 296M 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
SMPTE 274M 1080p(sf)23.98, 1080p(sf)24, 1080p(sf)25, 1080p(sf)29.97, 1080p(sf)30, 1080i50, 1080i59.94, 1080i60
SMPTE 424M 1080p50, 1080p59.94, 1080p60
SMPTE 2036 2160p50, 2160p59.94, 2160p60

PC Support

Windows 2k/8, 2k12/2k16
7, 8, 10

Linux  ≥2.6.18, 3.x, 4.x

Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Ordering Info

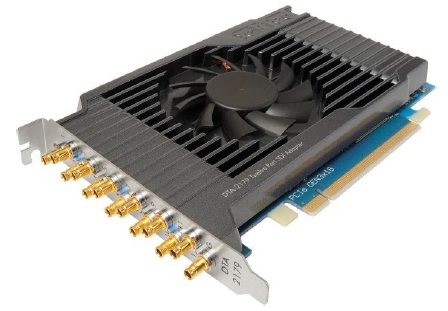

DTA-2179    –    Twelve 3G-SDI/ASI ports for PCIe

DTA-2179-SLP    –    Twelve 3G-SDI/ASI ports for PCIe with StreamXpert Lite and StreamXpress player software.

DTA-2179-SXP   –    Twelve 3G-SDI/ASI ports for PCIe with StreamXpert 2.0 stream analyzer and StreamXpress player.

DTA-2179-SY-SXP  –   Twelve 3G-SDI/ASI ports for PCIe with SdEye and StreamXpert 2.0 stream analyzer and StreamXpress player.

DTA-2179-VR-SY-SXP   –   Twelve 3G-SDI/ASI ports for PCIe with VF-Rec stream recorder, SdEye and StreamXpert 2.0 stream analyzer and StreamXpress player.

Software Description

1.  StreamXpress –  Playout  Software

  • Low-cost, high-performance playout software that supports all DekTec output adapters
  • Endless play with optional automatic correction of continuity-counter, PCR/PTS/DTS and TDT/TOT fields
  • SOAP-based remote control to automate StreamXpress operations (DTC-302-RC option)
  • Saving and restoring playout parameters using XML-based settings file
  • Reproducible injection of errors in the transport stream with adjustable error rate
  • Easy-to-use control of modulation and channel simulation parameters

2.    StreamXpert – Transport Stream Analyser Software
• Real-time analysis, monitoring and recording of MPEG-2 transport streams
• Recording based on duration, size or manual
• Provides detailed statistics on the PIDs, services and tables found in the transport stream
• Displays PIDs, services, tables, descriptors, stream information and PID-grid (compact overview of all PIDs)
• User definable TR 101 290 templates
• PCR analysis
• Measurement of bitrates, PCR-accuracy and interval
• Integrated SD/HD video and audio decoder with support for MPEG-2, AVC/H.264, HEVC/H.265, AVS, 4:2:2 and 10 bit video streams and MP1 / MP2 / (HE-)AAC / Dolby AC3 / Dolby AC4 audio
• Deep decoding of PSI, DVB-SI, DVB-RCS and ATSC-PSIP tables and descriptors
• Closed captions decoding
• SI decoding with user templates, Dolby AC4 analysis, multi-monitor support
• Support for analysing TS-over-IP streams via a DTA-2160 / DTA-2162 or a local network port
• The world’s most cost-effective and user-friendly transport-stream analyser

3.  StreamXpert Lite – Light-weight version of StreamXpert for viewing and recording transport-stream contents, and for decoding audio and video.

                                                             StreamXpert           StreamXpert Lite

Ribbon based GUI                                        ✓                               ✓
List with properties of all PIDs                      ✓                               –
List with properties of all services                 ✓                               partial
List with properties of all tables                    ✓                                –
Video Decoding
HEVC                                                            ✓                                ✓
AVC                                                               ✓                                ✓
AVS                                                               ✓                                ✓
MPEG-2                                                        ✓                                ✓
4:2:2                                                              ✓                                –
10-bit                                                             ✓                                –
Full screen mode                                          ✓                                ✓
Multi-monitor support                                    ✓                                ✓
Audio Decoding
HE-AAC                                                        ✓                                ✓
AAC                                                              ✓                                ✓
E-AC-3                                                          ✓                                ✓
AC-3                                                             ✓                                 ✓
MPEG-1 Layer II                                           ✓                                ✓
Supported Interfaces
DekTec input adapters                                   ✓                                 ✓
PC network ports                                           ✓                                 ✓
Custom table and descriptor templates         ✓                                  –
PID Grid, graphical overview of all PIDs        ✓                                  –
Dolby AC-4 analysis                                       ✓                                  –
Manual mode                                                ✓                                  ✓
Size based                                                    ✓                                  ✓
Duration based                                              ✓                                  ✓
Measurement and Compliance
TR 101 290 priority 1, 2 and 3                      ✓                                  –
Bitrate                                                           ✓                                  partial
PCR graphs                                                  ✓                                  –
PCR accuracy                                               ✓                                  –
PCR interval                                                  ✓                                  –
PCR frequency offset                                    ✓                                  –

4.     SdEye    –    SDI Analysis and Monitoring Software

  • Cost-effective real-time waveform analyser for SMPTE-259M signals
  • Displays picture, YCbCr / RGB waveforms, vectorscope and peak meter
  • Various picture display modes: interlaced, top- or bottom-field only, top and bottom field, full SDI frame
  • User can select whether he wants to display Y, Cb, Cr, R, G and/or B components in the picture
  • Contemporary GUI with quick access buttons and user-selectable window layout
  • Supports all DekTec SDI-capable adapters including bus-powered USB-2 units for portable SDI monitoring

5.   VF-Rec – Advanced transport-stream/SDI recorder

• Advanced recorder for TS, ETI, SDI, I/Q samples and T2MI.
• Allows to do continuous recording and remote control through SNMP
• Record to a single file, to multiple files or continuous
• SDI recording 10-bit full frame, up to 3G-SDI
• Remote monitoring and control through SNMP
