ASI-to-IP and IP-to-ASI
Description

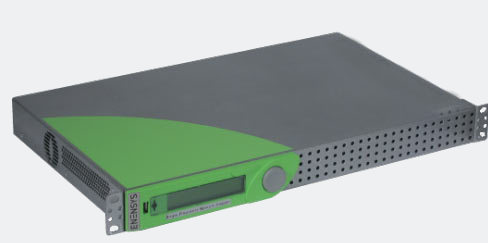

GigaCaster video gateways provide a cost effective, versatile and efficient solution for delivering digital TV content over IP networks.
ENENSYS’ video over IP gateway is suitable for delivering over IP networks any MPEG content from one point to another point (contribution) or from one point to multi-point (distribution).
GigaCaster high density video gateways can handle the carriage of up to 8 MPEG-2 Transport Streams (MPEG-2 TS) in ASI to IP direction or in IP to ASI direction. Each MPEG-2 TS can include either MPEG-2 or MPEG-4 (H264) video content in SD or HD format.
When broadcasting over Single Frequency Network, ENENSYS has implemented a patented technology that copes with any IP network issues and guarantees a reliable SFN broadcasting without external 10MHz reference.
Applications:
- Point-to-point video delivery
- Deliver any MPEG content from satellite, cable source
- Transmission sites interconnections
- Reliable SFN broadcasting over IP
- Radio Link sites interconnections
Benefits:
- Front panel : Ease operation and maintenance
- Versatile : ASI>IP or IP>ASI
- Multi-standard : ATSC, DVB-T/H, ISDB-T
- Video agnostic : MPEG-2 or MPEG-4/H.264
- Scalable : From 1 ASI port up to 8 ASI ports
- Unique patented SFN preservation
- High throughput : Up to 100Mb/s per ASI
- Reliable : Hardware based for 24/7 operation
Characteristics:
- Up to 8 DVB-ASI ports
- Gigabit ethernet port for IP distribution
- Optional SFP port for Fiber optic distribution
- RTP / UDP support
- Unicast and multicast support
- DVB-IPI FEC compliant
- Pro MPEG Forum CoP#3 / SMPTE 2022
- Clock & drift correction
- Network jitter removal
- IGMP v2/v3 support
- Full SNMP v2 support
- Real-time monitoring
- Fault relay alarm
Specifications
Inputs/Outputs
ASI
- MPEG-2 Transport Stream over ASI
- Up to 8 DVB-ASI (BNC 75Ω)
- Up to 100 Mb/s per ASI input/output
- Up to 400 Mb/s over all ASI with FEC
IP
- MPEG-2TS over IP
- 1 Gigabit Ethernet (RJ 45) – optional SFP
- 600 Mb/s maximum throughput
- RTP or UDP datagrams
Processing
IP encapsulation
- DVB-IPI compliant
- From 1 to 7 TS packets/IP packet
IP management
- Unicast and Multicas
- VLANs Management
- IGMP v2/V3 support
FEC
- Packet Loss correction based on
- Pro MPEG CoP3 – SMPTE 2022
Jitter Removal
- Patented technology
- Configurable buffer (10 – 900ms) to
- absorb network jittering
Single Frequency Network
- Regulation based on MIP packet
- Optional external 10MHz
Quality of Service
- Traffic Policy definition
- TOS/DSCP specification
Control and Supervision
- Traffic Policy definition
- TOS/DSCP specification
Physical
- Height: 44 mm / 1.7 in
- Width: 444 mm / 17.48 in
- Depth: 274 mm / 10.79 in
- Format: 1 RU, width 19″
- Power supply: 100-240VAC, 48V DC (option)
- Power consumption: 20W
