• Transport Stream (TS) grooming and remultiplexing of up to 8 streams received over ASI or Gigabit Ethernet.
  • IP encapsulation of up to 8 independent output streams on a Gigabit Ethernet link.
  • ASI to IP (TSoIP) conversion, IP (TSoIP) to ASI conversion
  • UDP/RTP. unicast/multicast, MPTS or SPTS
  • Sending video over the internet with SRT protocol



  • Description
  • Specifications
  • Ordering Info

Description

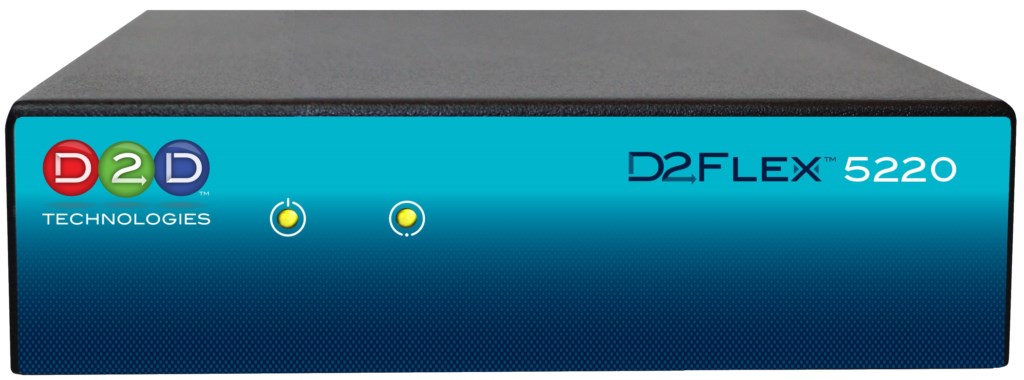

The D2Flex5220 is a powerful 1/3 rack unit MPEG video multiplexer and IP network gateway that creates digital video transport streams from any service component over ASI and Gigabit Ethernet. Advanced DTV channel branding, video processing and optional PSIP data insertion serve to create a channel lineup that viewers are looking for.
Transmission of high quality video with low latency across the public internet is supported with the Secure Reliable Transport (SRT) protocol.

Applications

Public Internet Transmission: Leverage the power of a Secure Reliable Transport (SRT) to deliver broadcast quality video with low latency across the public internet.

Distribution: Easily aggregate services from many sources and local programming with service processing and preparation for transmission over satellite uplinks, terrestrial broadcast, cable and IPTV.

Regionalization: Regionalize multiplexes at head-ends and transmitter sites with service add/drop and advanced channel branding.

Key Benefits

Internet streaming with SRT: The D2Flex5220 features the standard Secure Reliable Transport (SRT) that provides end to end security and optimized streaming performance across unpredictable networks for the best quality video possible. The integrity and quality of the video is maintained by accounting for packet loss, latency, jitter and dynamically adjusting for bandwidth between each endpoint. Now you can reliably deliver low latency video over any network including the public internet.

Easily Rebrand Channels with EPG:  Set the major and minor channel numbers on each output stream and pass through or regenerate the necessary PSIP tables. The optional D2Guide can insert an Electronic Program Guide (EPG) from services like Titan TV and Gracenote (TMS) or from a spreadsheet with programming for the next several weeks so your customers can find the programs they want.

Optimize Transport Bandwidth: Get the most out of your transport by creating up to 8 independent Multiple Program Transport Streams (MPTS) from all of the service inputs. Satisfy demanding bandwidth constraints by removing unwanted elementary streams like secondary audio or even drop complete programs.

Full Duplex IP Video Gateway: The D2Flex5220 can remultiplex up to 8 streams from ASI or GigE and create 8 independent IP output streams with Forward Error Correction (FEC) compliant with SMTE 2022-1/2.

Emergency Alert Insertion: Quickly inform viewers of emergencies by inserting EAS into all the programs of your ATSC digital transport stream with the optional D2Alert.



Features

  • Transport Stream (TS) grooming and remultiplexing of up to 8 streams received over ASI or Gigabit Ethernet.
  • IP encapsulation of up to 8 independent output streams on a Gigabit Ethernet link.
  • Reliable public internet transmission of broadcast video with the Secure Reliable Transport (SRT) protocol.
  • Secure AES 128/256 bit encryption between each endpoint, critical for public internet transmission.
  • DVB to ATSC table conversion from any input to any output stream.
  • Configurable Forward Error Correction (FEC) compliant to SMPTE 2022-1/2.
  • ASI to IP (TSoIP) conversion for transporting digital video content over IP networks.
  • IP (TSoIP) to ASI conversion provides a full duplex network video gateway with  2 independent ASI outputs.
  • Network jitter correction and adaptation for transport of MPEG TSoIP.
  • Configurable PSIP/SI major and minor channel numbers.
  • Automatic failover switch between primary and configurable backup transport streams.
  • Optional D2Alert for insertion of EAS Emergency Alerts in your digital channels.
  • Optional D2Guide for dynamic PSIP guide generation from Titan TV, Gracenote (TMS) or a spreadsheet.
  • Compact 1/3 RU design with optional rack mount and dual redundant hot swappable power supplies







Specifications

Specifications

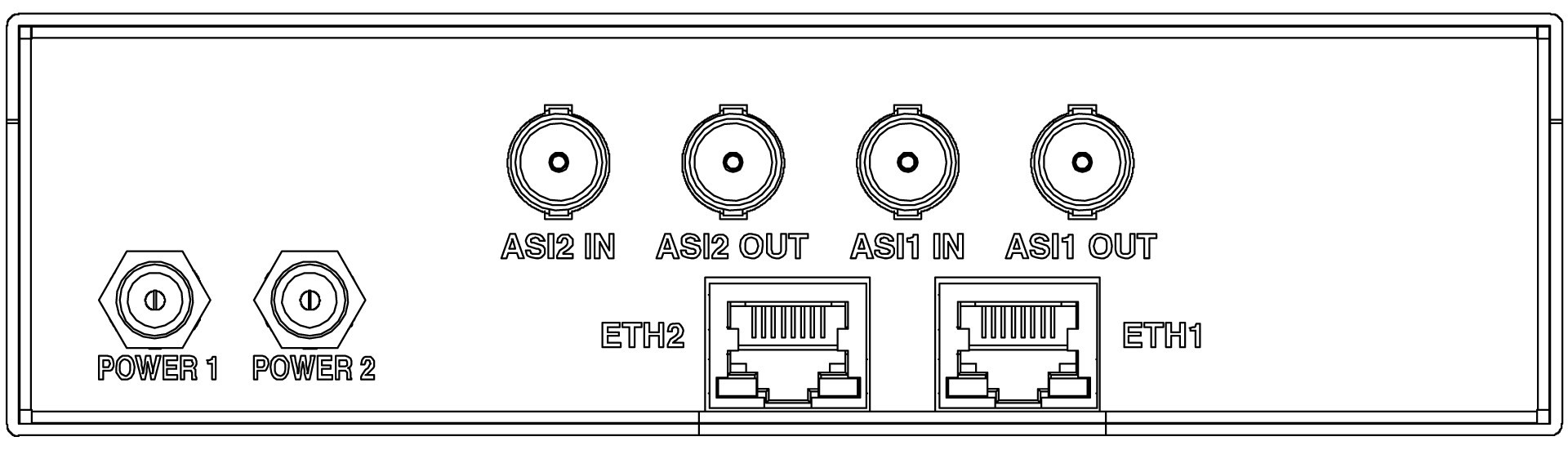

ASI Inputs

  • 2 ASI inputs, 75Ω, up to 213 Mbps per input.
  • Receive MPTS and SPTS with service filtering

ASI Outputs

  • 2 ASI outputs, 75Ω, up to 213 Mbps constant bit rate per output
  • Programmable unique MPTS or SPTS
  • PCR regeneration

Gigabit Ethernet (TSoIP)

  • 2 independent Gigabit Ethernet (GigE), RJ45
  • 10/100/1000Base-T auto-sensing
  • Half and full duplex

Interoperability

  • Video Formats: Transport stream MPEG-2 SD/HD and MPEG-4 (AVC) SD/HD
  • Audio Formats: MPEG-1 Layer II and Dolby AC-3 service type control

Management

  • Control over Ethernet, RJ45
  • D2Manage Control browser interface
  • SNMP remote monitoring with configurable traps

Multiplexing

  • Service and component PID tracking, filtering and remapping (route any input to any output port)
  • Input and output unique SPTS and MPTS
  • Each output (ASI, GigE) is uniquely programmed
  • PCR re-stamping
  • Configurable packet format of 188 or 204 bytes per packet

Payload Processing

  • Forward Error Correction (FEC) compliant to SMPTE 2022-1/2
  • Maximum aggregate data rate: 500 Mbps with up to 32 services
  • Multicast: IGMP v1, IGMP v2, IP/UDP and IP/UDP/RTP multicast or unicast.
  • Configurable packet format of 188 or 204 bytes per packet

Secure Reliable Transport (SRT)

  • Protocols: TS over SRT (UDP)
  • Encryption: Advanced Encryption Standard AES-128, AES-256.
  • Modes: Source (Caller), Destination (Listener) or Rendezvous.

Table Processing

  • Advanced component/service/TS analysis and bit rate measurements
  • MPEG/PSI Tables: PAT, PMT, CAT
  • ATSC/PSIP Tables: MGT, VCT, STT, RTT, EIT, ETT
  • DVB/SI Tables: NIT, SDT, TDT, EIT

PSIP Processing

  • Pass-through and dynamic regeneration of PSIP tables.
  • EPG Guide Services (D2Guide Option):
    • Gracenote (TMS)
    • BIM PSIP Data Service (Titan TV)
    • Spreadsheet

Physical Characteristics

  • Size: 1.75” high x 6.33” (1/3 RU) wide x 12.74” deep
  • Power: 90-254 VAC at 50 or 60 Hz.
    External power supply.

Environmental Conditions

  • Cooling: Active fan
  • Operating Temperature: 5˚C to +40˚C
  • Storage Temperature: -5˚C to +45˚C
  • Relative Humidity: 10 to 90% (non-condensing)



Ordering Info

D2Flex5220: IP/ASI Multiplexing Gateway with 1 TSoIP input and 1 TSoIP output streams,  2 ASI inputs and 2 ASI outputs.
Includes D2F5-PS: Power supply, 90-254 VAC at 50/60 Hz

Available Options:

  • N IP streams – the number of additional IP input/output
    streams, N – up to 7 (up to 8 IP input/output streams total)D2Flex5220_r3
  • D2Alert: offers insertion of Emergency Alert System in transport stream.
  • D2Guide: offers dynamic PSIP Guide generation from Titan TV or spreadsheet.
  • D2F3RM: 1RU rack mount kit.
  • D2F5-PS:  second power supply for real time redundancy
