• Inputs: 2x 3G/HD/SD-SDI and 1 HDMI 1.4
  • Up to 1920x1080P60 on SDI
  • Up to 3840 x 2160P30 on HDMI
  • 3 encoding channels
  • UDP, RTP, RTMP, RTSP, SRT, Zixi streaming
  • Description
  • Specifications
  • Ordering Info

Description

The Talon Pro 4K HEVC/AVC Hardware Encoder is a professional solution for streaming and archiving live video content. It can accept videos from SDI and HDMI video sources and compress the incoming streams into an H.264, H.265, or MJPEG files. This encoder supports three simultaneous encoding channels at up to 4K30 resolution. It features built-in Wi-Fi Management capability, which allows this unit to be configured and controlled over Wi-Fi or LAN HTTP interface. It has a fanless design and redundant power inputs.



Key Features

  • H.265 / H.264 Encoding
  • 3 Independent Encoding channels
  • RTMP, UDP, RTP, RTSP, SRT, and Zixi streaming
  • Embedded SDI and HDMI audio inputs, Unbalanced Stereo Audio Input
  • 2x 3G-SDI and 1x 4K30 HDMI Inputs
  • CEA608 and CEA708 Closed Captions

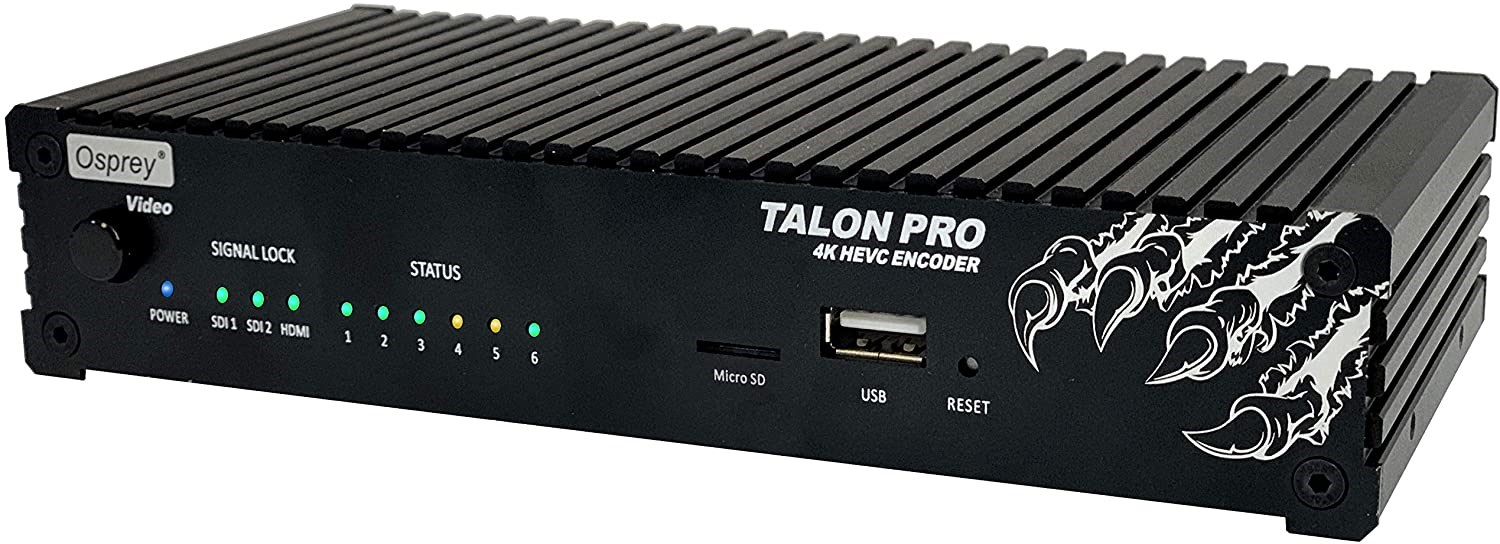

  • Six Configurable Dual Color Status LED’s
  • User Selectable Loopouts (Active and Passive)
  • Web-Based / Wireless Configuration and Video Monitoring
  • HDMI Output for Post-Processing Monitoring of any Input
  • USB and Micro SD Card Interfaces for .MP4 or .TS Format Video Archiving
  • Redundant Power Inputs
  • Small Fanless Form Factor
  • Included Mounting Features – Desktop, Wall Brackets, ¼” Camera Mount
  • Optional: 1U Side by Side Rackmount with included Redundant Power Supplies

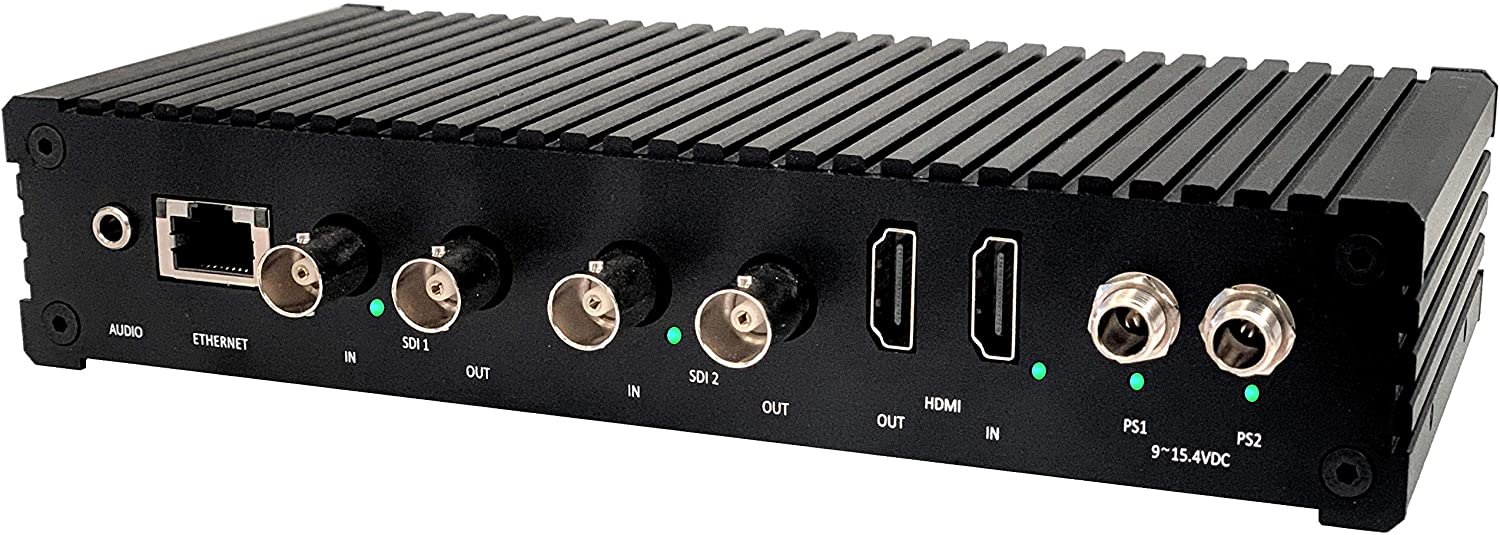

Back Panel



Specifications

Video Inputs:

  • 2 x 3G/HD/SD-SDI with Loopouts (selectable as active or passive loopouts)
  • 1 x HDMI 1.4 UHD

Audio Inputs:

  • 2 x Embedded SDI (4 Stereo Pairs each)
  • 1 x Embedded HDMI (4 Stereo Pairs)
  • 1 x Analog unbalanced stereo

Video Input Resolution:

  • Up to 3840×2160 (UHD) 30fps on HDMI
  • Up to 1920×1080 60fps on SDI

HDMI Output:

  • Selectable preview of any input

Streaming Transports:

  • RTMP, UDP, RTP, RTSP, SRT™, Zixi™,
  • Saving to MP4 and TS file
  • CDN integrations

Video Processing:

  • Upscale/Downscale, Frame rate conversion, Deinterlacing, Text Overlay, Region of Interest, Image Rotation

Video Compression:

  • H.264 (AVC), H.265 (HEVC), MJPEG

Encoding Controls:

  • Bitrate from 100kbps to 100Mbps
  • Frame rate Full, Half, Quarter and Sixth
  • Low Latency option <55ms

Closed Captions:

  • Re-embeds existing CEA608/708 captions

Audio Compression:

  • AAC-LC, AAC-HE, AAC-HEv2

Audio Sample Rate:

  • 32kHz, 44.1kHz, 48kHz
  • Audio Bitrate 12Kbps to 384Kbps

Storage:

  • MicroSD card
  • USB drive

Power:

  • 9.0 ~ 15.4VDC | 7W
  • Redundant power connections

Dimensions:

  • 7.4 x 3.46 x 1.5″ / 188 x 88 x 38 mm

Weight:

  • 1.8 lb / 0.82 kg

Ordering Info

Talon Pro – 4K H.265/H.264 Encoder

Includes:

  • Power Supply
  • Mounting Features: Desktop, Wall Brackets, ¼” Camera Mount

Available Options:

  • OPT-RACK – 1RU Side by Side Rackmount Panel with included Redundant Power Supplies
