• 12G-SDI input
  • Up to 3840 x 2160P60
  • Up to 10 bit 4:2:2
  • 16 Audio Channels (8 stereo pairs) SDI
  • UDP, RTP, RTMP, SRT, Zixi streaming
  • Description
  • Specifications
  • Ordering Info

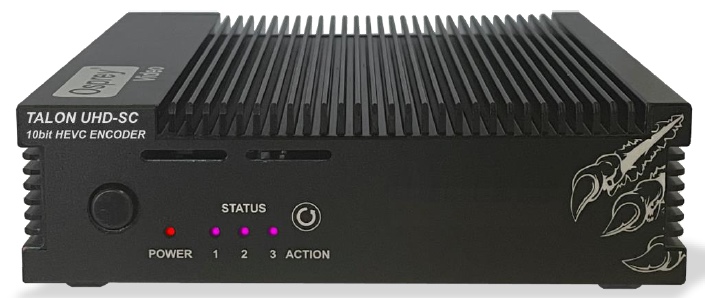

The Talon UHD-SC Professional Hardware Video/Audio Encoder supports input of up to 3820 x 2160 (UHD) 60fps video via one 12G-SDI input.
The encoder supports simultaneously streaming your video while archiving the stream to a hardware or network drive.

It supports up to 10-bit 4:2:2 color depth, deinterlacing, upscale and downscale, frame rate conversion, H.265/HEVC and H.264/MPEG-4/AVC encoding, sixteen channels of AAC-LC audio via SDI.

You can stream video via its Gigabit Ethernet port using a variety of protocols such as RTMP, RTSP, RTP, and UDP, and it supports a variety of CDN integrations.

You can save to MP4 and TS files via the USB 3.0 output and via the Ethernet port.

The encoder also supports SRT secure reliable transport protocol with multiple security features, remote firmware upgrade, embedded closed captioning, a JSON REST API, and password protection.
It features a fanless design and has a locking power jack.

Key Features

  • H.265 / H.264 Encoding
  • One Encoding channel
  • Video resolution: up to 3840 x 2160 UHD 60fps
  • Up to 10-Bit 4:2:2
  • RTMP, UDP, RTP, SRT, and Zixi streaming
  • 16 SDI embedded audio channels
  • 12G-SDI Input
  • Status LEDs
  • Web-Based Configuration
  • Simultaneous streaming and output to file
  • Video Archiving: USB3.0 and Network storage
  • Upscale/downscale, frame rate conversion, VBR/CBR, deinterlacing
  • Video encoding bitrate up to 100 Mbps
  • Small Fanless Form Factor
  • Included Power Supply
  • Optional: 1U Rackmount kit with active cooling for up to 3 Encoders

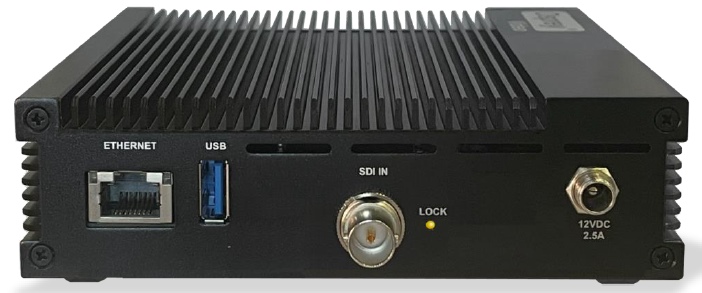

Back Panel



Video Inputs

  • 1x 12G-SDI

Audio Inputs

  • Embedded SDI 16Ch (8 stereo pairs)

Video Input Resolution

  • Up to 3840×2160 (UHD) 60fps

Color Depth

  • Up to 10bit 4:2:2

Streaming Transports

  • RTMP, UDP, RTP, Zixi™, SRT™
  • Number of Output Channels: 1
  • Number of concurrent input channels: 1
  • Simultaneous streaming and save to file
  • Saving to MP4 file

Video Processing

  • Upscale/Downscale, Frame rate Conversion
  • Deinterlacing

Video Compression:

  • H.264 (AVC), H.265 (HEVC)

Encoding Controls

  • Bitrate up to 100Mbps
  • VBR & CBR

Audio Compression

  • AAC–LC
  • OPUS audio for UDP, RTP, SRT, and Zixi

Audio Sample Rate:

  • 44.1kHz, 48kHz
  • Audio Bitrate 64Kbps to 512Kbps

Video Archiving

  • USB 3.0
  • Network Storage

Software Features

  • Enhanced Security Features
  • Remote Firmware Upgrade from Web
  • Network Time Protocol
  • JSON REST API for software integration
  • Password Protected
  • Embedded Closed Caption support
  • SMPTE 2038 Support

Hardware Features

  • Fanless Operation
  • Locking Power Jack
  • Status LED’s
  • GigE Ethernet connection


  • 12VDC | 24W max


  • 5.5 x 5.5 x 1.5″

Operating Temperature

  • 0 to 40C

Available Option:

  • OPT-RACK – 1U Rackmount kit with active cooling for up to 3 Encoders


Ordering Info

Talon UHD-SC   –   12G-SDI H.265/H.264 UHD Video/Audio Encoder


  • Power Supply

Available Options:

  • OPT-RACK – 1U Rackmount kit with active cooling for up to 3 Encoders
