Component, Composite, HDMI and HD/SD-SDI inputs, ASI and IP outputs

  • Description
  • Specifications
  • Ordering Info

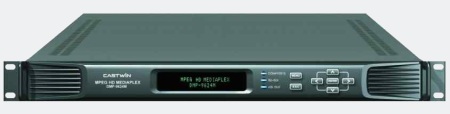

DME-9624H is a high-end MPEG-2 and H.264 encoder with the highest video quality and low
latency with luxurious design.
It shows excellent performance in video/audio compressing and encoding for suitable digital
transmission with various supported formats.
DME-9624H supports both MPEG-2 and MPEG-4 AVC (H.264) so that it allows operators
select the format they want.
The unit is easy to control with front VFD and via web browser.


• Component, Composite, HDMI, HD/SD-SDI video inputs
• Up to 1080p25/29.97/30 encoding
• Digital, Analog and Serial Digital embedded audio inputs
• 5.1 channel SPDIF audio optical input (pass through)
• 1xASI input for supporting of insertion of externally generated PSIP into the transport  stream
• Video input Auto detection function
• Selectable MPEG-2 HD/SD or MPEG-4 (H.264) HD/SD real-time video encoding
• Simultaneous output of 2xASI Transport stream (ASI) and UDP/IP or RTP/IP transport stream
• CBR or VBR, Unicast or Multicast output
• Dolby Digital (AC-3), MPEG-1 Layer Ⅱ, AAC, HE-AAC audio encoding
• User selectable resolution and bit-rate
• Supports internally generated TVCT, CVCT, SDT, NIT
• Supports EIA-708 Closed caption insertion via HD/SD-SDI (SMPTE 334)
• Control and monitoring via web browser, front panel or SNMP
• Low latency as 800ms

DME-9624H - MPEG-2 & MPEG-4 AVC (H.264) HD/SD Encoder

DME-9624H – MPEG-2 & MPEG-4 AVC (H.264) HD/SD Encoder


Click on “DME-9624H Datasheet” for technical specifications.

Ordering Info

DME-9624H   –   HD/SD MPEG-2 and H.264 (MPEG-4) encoder
