Inputs: HDMI, HD/SD-SDI, Component, ASI, L/R, SPDIF, AES/EBU
Outputs: ASI, IP and RF (ATSC, OpenCable, DVB-C, DVB-T, DTMB)
Description

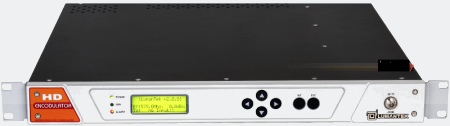

The HD Encodulator is professional HD encoder + digital modulator, selectable as ATSC, OpenCable, DVB-T/C, ISDB-T or DTMB. This product has variable interfaces with HDMI, HD-SDI, Y/Pb/Pr, ASI, Analog Stereo Audio(L/R), SPDIF (optical/coaxial), and AES/EBU.
It’s variable interfaces make this product ideal for broadcasting systems such professional broadcasting, MATV systems in buildings and apartments, education broadcasting systems at schools and government buildings.
Features
- Encoder plus DTV modulator converged into a single 1U rack mount case
- Video and audio CODEC selectable: MPEG2/H.264, MPEG1-L2/AC3/AAC
- Versatile input ports: HDMI, HD-SDI, Y/Pb/Pr, ASI, Analog Stereo Audio(L/R), SPDIF (optical/coaxial), and AES/EBU
- ASI, IP (UDP, RTP, unicast, multicast) and RF outputs
- Web GUI interface and remote access and control through IP
- High power RF output (-20 dBm – 0 dBm)
- Variable DTV modulation options ( ATSC, OpenCable, DVB-T, DVB-C, DTMB )
- Internal PSI/PSIP generation or external input through ASI Input port
- Firmware update and control through web server and RS-232
- HTTP and SNMP control with 100BaseT
Specifications
Click on ” HD Datasheet” for technical specifications
Ordering Info
- HD/SD MPEG-2 and H.264 Encoder with ATSC modulator
- HD/SD MPEG-2 and H.264 Encoder with DVB-T modulator
- HD/SD MPEG-2 and H.264 Encoder with DVB-C (QAM) modulator
- HD/SD MPEG-2 and H.264 Encoder with DTMB modulator
