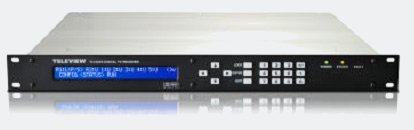

The TLV400S Professional HDTV new generation frequency agile receiver demodulates all satellite DVB/ATSC H.264/MPEG-2 HDTV frequencies and supplies crystal clear digital or analog video from all formats used by Broadcast Professionals worldwide. It not only functions as a dual input broadcast demodulator but also works well as a Professional H.264/MPEG-2 decoder. The output of the demodulator is available on either DVB-ASI,IP, SMPTE 310M connectors. With its DVB-ASI inputs it is able to decode Transport Streams up to 40Mbps. Designed to support all the industry standard forms of the DVB/ATSC standard it supports 576i/480i, 576p/480p, 720p and 1080i decoding. Supported video outputs include both Digital and Analog formats with HDSDI with embedded audio, SDI, Y Pr Pb, RGB, and composite. Audio support is via embedded audio or via L/R 5 channel XLR connectors.


  • NEW: Now supports reception of DVB-T2 RF signal
  • NEW: Now supports TS transmition/reception over IP(UDP/RTP)
  • Signal from 75ohm BNC-connector
  • May Choose Digital Stream from Satellite and DVB-ASI and SMPTE-310M Signal
  • Selected Digital Stream is Supplied in DVB-ASI and SMPTE-310M Format Signal
  • Dual MPEG-2(HD/SD) decoding, single MPEG-4/H.264 decoding
  • H.264(MPEG-4)/MPEG-2 MP@HL Compliant Video Decoder Supplies Digital and Analog Video Signal
  • Digital Video Signal Compliant with SMPTE-259M/SMPTE-292M(SDI) with Embedded 8 Channel Audio (SMPTE-299M)
  • Dolby Digital AC-3 and MPEG-1/2 5.1Channel Audio Decoder
  • Dolby Digital (AC-3) or PCM Stereo Audio Selectable over BNC Connector
  • Dolby Prologic Compatible Stereo Audio Output on One XLR Connector and One D-Sub 9P Connector
  • RGB Video Signal with 1080i/720p/576p/576i(480i) Video Mode
  • 2Lines by 40 Characters LCD Display
  • PSIP/EIA-608, 708 Closed Caption Compliant
  • 1U Rack Mountable Frame
  • Firmware Upgradable via Internet or USB
  • USB 2.0 Support
  • SNMP (10/100 Ethernet) Management Support
  • FEC support(PRO-MPEG parity)


See product datasheet for technical specifications

Ordering Info

TLV400S  –  MPEG-2/H.264 Receiver/Decoder with DVB-S/S2 tuner/demodulator

TLV400S-T/T2 –  MPEG-2/H.264 Receiver/Decoder with DVB-T/T2 tuner/demodulator

TLV400S-8VSB  –  MPEG-2/H.264 Receiver/Decoder with 8VSB(ATSC) tuner/demodulator
