Supports  DVB-T/DVB-H, ATSC 8VSB, QAM(DVB-C & USA-QAM), DVB-S/DVB-S2, CMMB,, T-DMB, ISDB-T, ISDB-Tmm, ISDB-S, DTMB, ATSC-M/H, DVB-T2, DVB-C2 and DVB-S2X modulation standards !

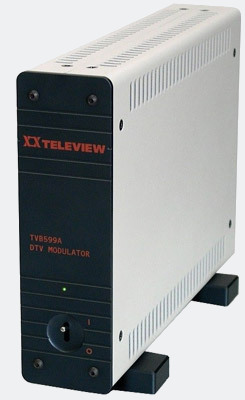

The TVB599A is USB based modulator that can play Transport Stream (TS) files from hard disk or DVB-ASI/SMPTE-310M/IP inputs into an RF signal. The output can be industry standard 55~2150MHz selectable RF signal. On board synthesizer can generate stable and accurate symbol clock and tuning frequency. The transport stream can be supplied through USB interface or DVB-ASI/SMPTE-310M/IP inputs. Ideal for STB testing and development, or video distribution to closed RF networks.

TVB599A modulator diagram

  • DVB-ASI input ports for real-time ASI to RF / IF modulation
  • RF Signal: 55~2150MHz
  • Transport stream from hard drive thru USB interface
  • DVB-ASI and SMPTE310M output for monitoring
  • Superposition white noise over modulated signal and control the output C/N ratio
  • Programmable RF output level (0.1dB step)
  • 0dBm amplifier included
  • On board VHF/UHF/L-BAND RF output up-converter
  • SDK for Windows 2000/XP(32/64bit)/Vista(32/64bit)/7(32/64bit) WDM and Linux


  • STB Testing and Development
  • DVB RF, IF, DVB-ASI, SMPTE-310M Signal generator
  • Digital television testing and development
  • Broadcasting to DVB networks
  • Demonstration of equipment in trade shows
  • Mobile video
  • CATV distribution
  • High quality HD video distribution for Airports, Malls, Electronics stores, etc…
  • Digital Signage

TVB599A Back Panel
