Description

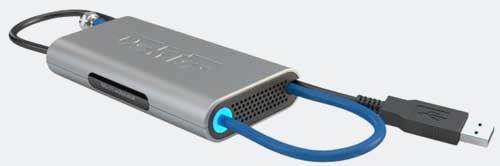

DTU-215 is a USB-2 based multi-standard modulator with support for most QAM-, OFDM- and VSB-based modulation standards. Including DVB-T, DVB-T2, DVB-C, DVB-C2, ATSC, ISDB-T, DTMB, CMMB, IQ, and more.
Features:
- Powered from the USB-2 bus, so no external power adapter is required
- Channel-simulator option available
- Direct digital conversion to 47..1000MHz for excellent signal quality
- Playout of I/Q sample files up to 9.14Msamp/s
- Programmable attenuator
- Free Windows and Linux SDK is fully compatible with other DekTec digital-video output adapters
Modulation Standards (included)
- ATSC VSB ATSC A/53E
- DVB-C EN 300 429
- DVB-T / DVB-H EN 300 744
- QAM ITU-T J.83 Annex A/B/C
Modulation Standards (optional)
- ADTB-T / DTMB GB 20600-2006
- CMMB GY/T 220.1/2-2006
- DVB-T2 multi PLP EN 302 755
- IQ I/Q sample playout
- ISDB-T, ISDB-Tmm ARIB STD-B31
- ATSC-MH
- DAB(+), T-DMB
- DVB-C2
- AWGN insertion
DTC-300 – StreamXpress Playout and Control Software (optional)
- Low-cost, high-performance playout software
- Endless play with optional automatic correction of continuity-counter, PCR/PTS/DTS and TDT/TOT fields
- SOAP-based remote control to automate StreamXpress operations (DTC-302-RC option)
- Saving and restoring playout parameters using XML-based settings file
- Reproducible injection of errors in the transport stream with adjustable error rate
- Easy-to-use control of modulation and channel simulation parameters
PC Requirements
- PC USB port USB2.0 minimum
- Windows 2k8, 2k12, 2k16, 7, 8, 10, or Linux ≥2.6.18, 3.x, 4.x
- Core i5 minimum, Core i7 recommended or equivalent AMD CPU
Specifications
KEY ATTRIBUTES
- Frequency range: 36 .. 1002MHz ±1ppm
- Bandwidth: up to 8.0MHz
- MER (OFDM): >42dB
- RF Connector: 75-Ω F
- Return loss: 15dB (47 .. 862MHz)
- Level (QAM): -46 .. -15dBm ±2dB
- Level (OFDM): -49 .. -18dBm ±2dB
- Amplitude Step Size: 0.5dB
- Adjacent Channel: -54dB (QAM),-52dB (OFDM)
- Phase noise: <-95dBc @ 10kHz
- Spectral purity: >50dB (47 .. 1000MHz)
- USB port: USB-2
- Power (through USB-2): 5V, 500mA
- Dimensions (LxWxH): 123 x 62 x 22mm
Ordering Information
All USA orders will be shipped from our USA warehouse.
All other orders will be shipped from Canada.
ORDERING INFO
DTU-215 – USB-2 VHF/UHF modulator
DTU-215-SP – USB-2 VHF/UHF modulator with StreamXpress player software
Available Options
- DTC-305-CM – XpressSim channel-modelling option
- DTC-370-ISDB – ISDB-T modulation option
- DTC-371-IQ – IQ samples playout option
- DTC-374-DTMB – DTMB modulation option
- DTC-375-CMMB – CMMB modulation option
- DTC-378-T2 – DVB-T2 modulation option
- DTC-379-C2 – DVB-C2 modulation option
- DTC-377-MH – ATSC-MH modulation option
- DTC-376-DAB – DAB modulation option
- DTC-382-Tmm – ISDB-Tmm modulator and signal generator software
DTU-215-GOLD – USB-2 VHF/UHF modulator with all current and future modulation options, channel simulation and StreamXpress including remote control.
