• Hardware H.264 encoder
  • Inputs: 3G-SDI, HDMI1.4, Composite
  • Up to 1920 x 1080P60
  • Embedded SDI/HDMI and Analog Audio inputs
  • UDP, RTP, RTMP streaming and archiving to .TS file
  • 1 Source to 3 Simultaneous Streams
  • 2 Sources to 2 Simultaneous Streams
  • Description
  • Specifications
  • Ordering Info

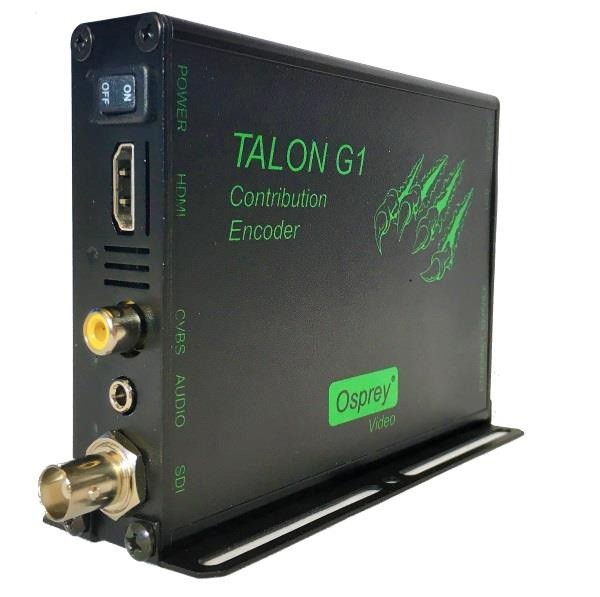

The Talon G1 Hardware Video/Audio Encoder is a professional solution for streaming and archiving live video content.

It is a small form-factor H.264 video encoder designed to be easy to use, portable, and easily stream both your standard definition and high definition content to broadband and mobile networks.

The Talon G1 Encoder can accept video from SDI, HDMI, or composite video sources and compress the incoming stream with H.264 format. H.264 compression gives the flexibility for video to be streamed over the web or easily archived without the storage impact of uncompressed video.

You can stream video via its Gigabit Ethernet port using a variety of protocols such as RTMP, RTP and UDP.

The Talon G1 Encoder features two operating modes. MBR mode allows to stream one source to three destinations, LC mode  allows two sources to be streamed to two destinations.


Key Features

  • H.264 Encoding
  • Video Inputs: 3G/HD/SD-SDI, HDMI1.4, Composite/CVBS
  • Audio Inputs: Embedded SDI/HDMI, additional unbalanced analog audio stereo pair input is available from front panel via a 3.5mm jack.
  • 2 Configuration Modes:
    –  MBR Mode – Allows the user to select 1 source and stream up to 3 destinations in Multiple Resolutions and Bitrates. Supports Frame Alignment for seamless RTMP MBR streaming. Output formats include RTMP, RTP, UDP and save to .TS file in resolutions up to 1080P/60.
    –  LC Mode – Allows 2 sources to be streamed to 2 destinations. SDI becomes the primary input, and the user can select either HDMI or Composite as the second input. Excellent solution for Simultaneous Streaming of Camera Content and Presentations for Classroom and Boardroom.
  • Video resolution: up to 1920 x 1080P60
  • RTMP, UDP, RTP streaming
  • Simultaneous Streaming and Archiving
  • Closed Captioning (EIA-608 & EIA-708)
  • HTTP-Based Configuration
  • Small Fanless Form Factor
  • Included Power Supply and Mounting Brackets


Video Inputs

  • 3G/HD/SD-SDI: SMPTE 424M, SMPTE 292M, SMPTE 259M
  • HDMI 1080P/60
  • Composite (CVBS)

Video Connectors

  • Composite (RCA)
  • SDI (BNC)
  • HDMI (type A)

Audio Inputs

  • Unbalanced stereo
  • Embedded SDI (1 stereo pair)
  • Embedded HDMI (1 stereo pair)

Audio Connector

  • Unbalanced stereo (3.5mm x 1)

Video Resolutions support

  • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
  • 1080i 50, 59.94, 60
  • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • 720 x 480 29.97, 30/i (NTSC)
  • 720 x 576 25/i (PAL)
  • 720 x 576 25, 50/p


  • Video Encoding: H.264 –  RTMP, RTP, MPEG-2 TS UDP, .TS File
  • Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)

Closed Caption

  • Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard*
    *Server and player must support closed caption data in order for the closed caption overlay to be available for display

LED indicators

  • Power, Encoding, Signal Lock for SDI, hDMI, Composite

USB connector

  • USB 2.0 type A

Ethernet connector

  • 1 GigE x1

Software Control

  • HTTP Based GUI

Power Consumption

  • 6W


  • 3.7 x 4.7 x 1″ / 93 x 120 x 25 mm  (does not include mounting brackets or connectors)




Ordering Info

Talon-G1-Encoder – H.264 Contribution Video/Audio Encoder


  • Power Supply
  • Mounting Brackets
