Outperforms the competition in efficiency
Simplifies SMPTE 2110 application creation
Advanced timestamping and traffic shaping
Description
FEATURES
• Efficient 10G network card for Linux and Windows, utilizing hardware acceleration to minimize video-over-IP overhead.
• Fully compliant with SMPTE 2110 and SMPTE 2022-5/6 protocols.
• Supports SMPTE 2022 TS over-IP streams encapsulation/decapsulation with IP FEC.
• Six optimized hardware pipes (3x Rx, 3x Tx), designed for superior performance.
• Precise timestamping and traffic shaping with local time-of-day counter syncing to PTP.
• SFP+ slot for 10G and 1G interfaces, cater-ing to both electrical and optical connections.
• Advanced hardware task offloading for effi-cient general network traffic handling.
• Seamless integration with FFmpeg.
• Intuitive AV FIFO API, purpose-built to streamline and simplify IP streaming tasks.
APPLICATIONS
• Perfect for applications previously using SDI, that are now modernized for SMPTE 2110:
• Software encoders, decoders, transcoders.
• Monitoring and multiviewers.
• Compliance recording
The DTA-2110 supports the transition from SDI to IP infrastructure, ensuring enhanced efficiency and performance.
BLOCK DIAGRAM

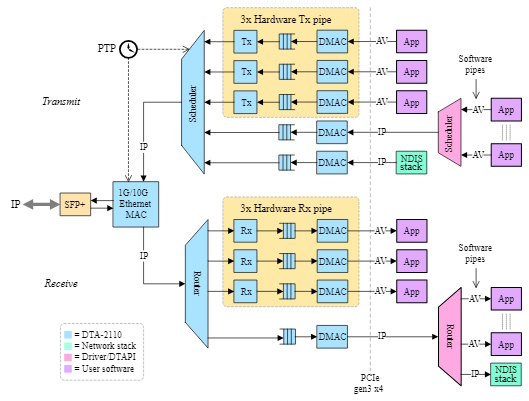

Outlined below is the block diagram of the DTA-2110’s firmware, organized into two pathways: transmission (upper section) and reception (lower section).
The transmission path incorporate three hardware pipes that directly interface with the user application, resulting in excellent performance. Packets from these hardware pipes are multiplexed with those from the software pipes and the standard network stack. A scheduler ensures that each packet is transmitted precisely according to its PTP timestamp.
Conversely, the receive path also integrates 3 hardware pipes directly interfaced with the user application. All remaining packets are dispatched to a software router. This router channels real-time AV streams to the software pipes, while normal standard network traffic is forwarded to the conventional network stack.
Specifications
Ports 10G/1G SFP+
Number of ports 1
Optimized for SMPTE 2110e, SMPTE 2022-5/6
Hardware pipes 3x Receive, 3x Transmit
Networking
10G Ethernet EEE 802.3ae
SFP+ SFF-8431*
IP protocol IPv4, IPv6
VLAN EEE 802.1Q
SMPTE 2110
ST 2110-10 System timing model
ST 2110-20 Uncompressed video
ST 2110-21 Video traffic shaping
ST 2110-30 Uncompressed audio
ST 2110-31 AES3 audio
ST 2059-1/2 Use of PTP in SMPTE 2110
You can use raw mode with PTP synchronization to implement any SMPTE 2110 substandard.
SMPTE 2022
ST 2022-1 IP FEC for TS-over-IP
ST 2022-2 TS-over-IP
ST 2022-5 IP FEC for SDI-over-IP
ST 2022-6 SDI-over-IP
PC Support
Linux ≥4.x, 5.x
Windows 10, 11; Server 19, 22
Processor Core i7 or equivalent AMD CPU
Ordering Info
All USA orders will be shipped from our USA warehouse.
All other orders will be shipped from Canada.

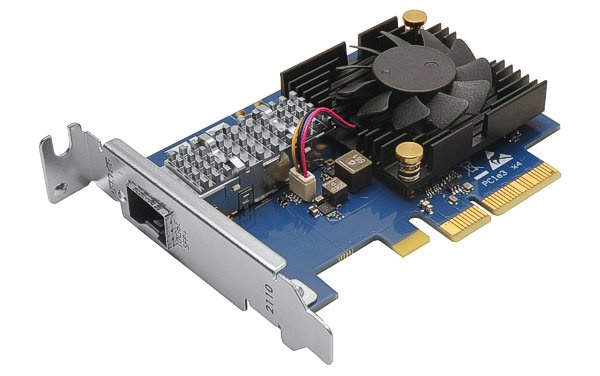

DTA-2110 – 10G network card for PCIe with SMPTE 2110 and SMPTE 2022-5/6 hardware acceleration.
DTA-2110-SLP – 10G network card optimized for SMPTE 2110 with StreamXpert Lite and StreamXpress player software.
DTA-2110-SXP – 10G network card optimized for SMPTE 2110 with StreamXpert analyzer and StreamXpress player software.
